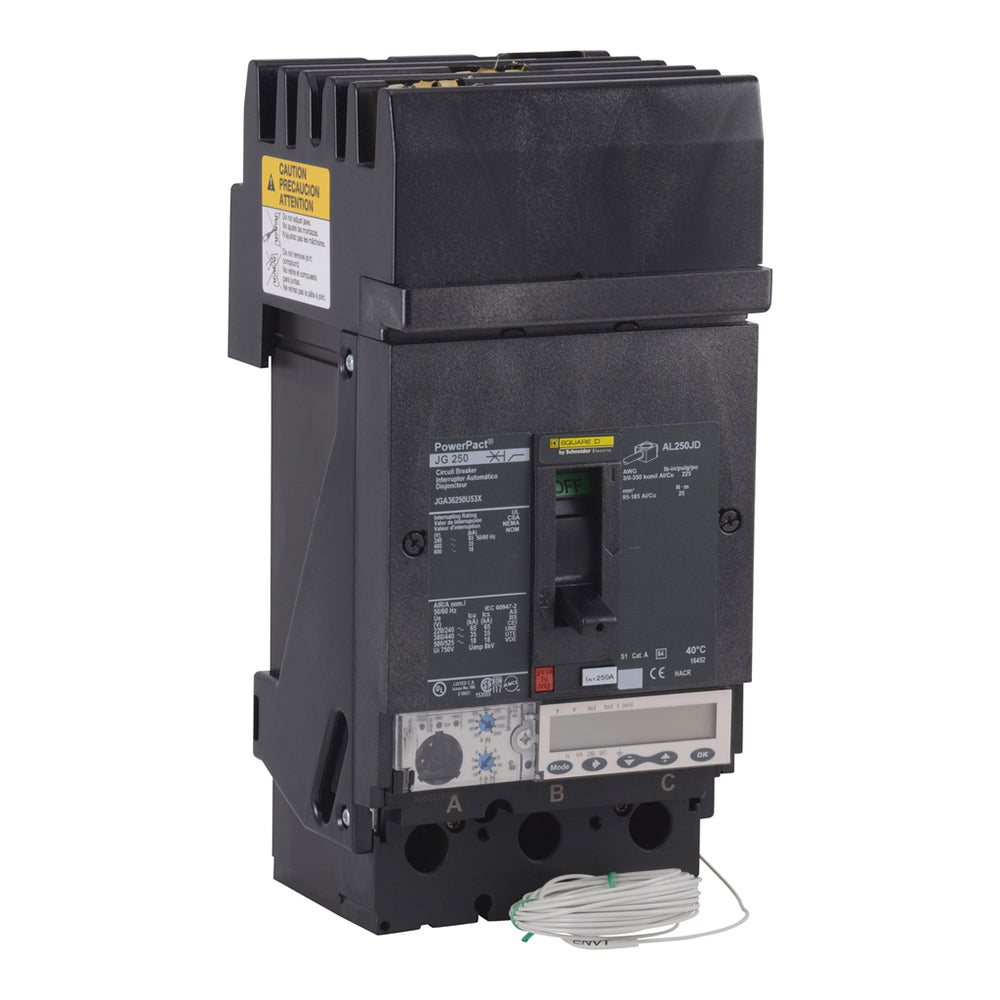

JGA36250U53X - Schneider Electric 250A 600V 3 Pole I-Line Style Circuit Breaker PowerPact J

JGA36250U53X

JGA36250U53X is a Schneider Electric 250 amp, 600 volt, 3 pole I-Line style circuit breaker from the PowerPact J series.This circuit breaker features a 65kA interrupt rating at 240V AC and 18kA at 600V AC, with an electronic Micrologic 5.2E trip unit providing advanced protection and energy metering. It is designed for plug-in mounting and offers long-time, short-time, and instantaneous trip functions. The breaker is UL 489 listed and carries multiple certifications including CSA, NOM, IEC, CCC, UKCA, and CE.

Key Specifications
• Amperage: 250A
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 65kA at 240V AC, 18kA at 600V AC
• Series/Frame: PowerPact J
• Trip Unit: Micrologic 5.2E electronic trip
• Trip Functions: Long-time, short-time, instantaneous (LSI)
• Certifications: UL 489, CSA, NOM, IEC, CCC, UKCA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JGA36250U53X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time, Short Time and Instantaneous Trip
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State



Product Data

• UPC : 060648607285
• GTIN : 03606486072851
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
