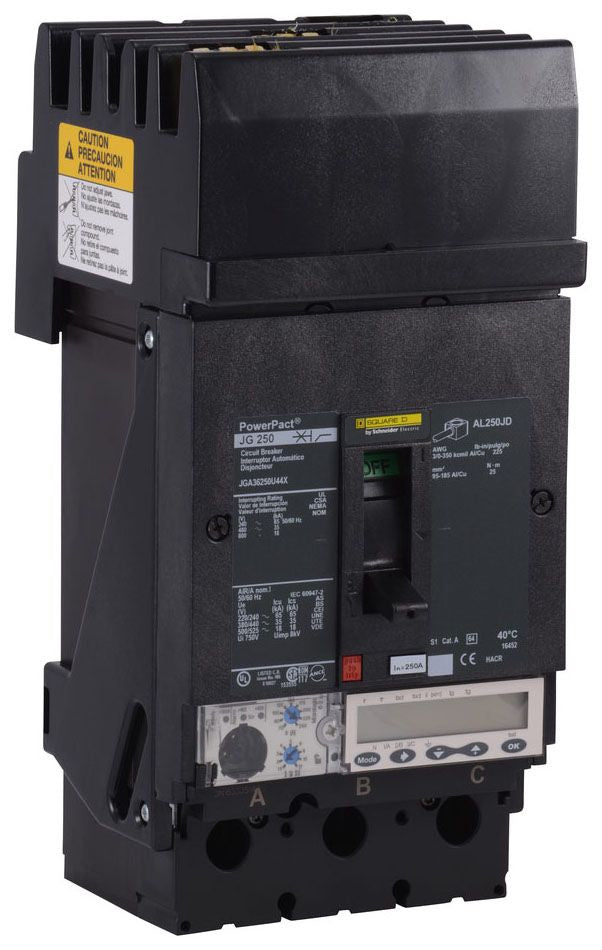

JGA36250U54X - Schneider Electric PowerPacT J 250A 3-Pole 600VAC Circuit Breaker

JGA36250U54X

JGA36250U54X is a Schneider Electric PowerPacT J series circuit breaker rated for 250 amps and 600 volts AC with 3 poles.This 3-pole molded case circuit breaker provides reliable overcurrent and short-circuit protection for AC electrical systems, featuring I-Line terminations on the line side and mechanical lugs on the load side for versatile installation.

• Amperage: 250A
• Voltage Rating: 600VAC
• Poles: 3
• Frame: PowerPacT J
• Mounting Type: I-Line
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 18 kA (typical for J-frame thermal-magnetic breakers)
• UL 489 Listed
• CSA Certified
• IEC 60947-2 Compliant
• Mechanical lugs on load side
• Common accessories compatible across PowerPacT J range

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGA36250U54X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• GTIN : 03606486119471
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
