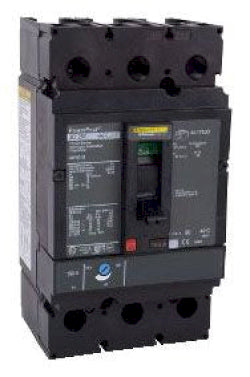

JDP36225 - Square D PowerPact J 225A 3 Pole 600VAC Molded Case Circuit Breaker

JDP36225

JDP36225 is a Square D PowerPact J molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 3 pole, 225A, 600VAC breaker features a thermal magnetic trip unit and is suitable for use in a variety of power distribution systems. The unit mount design allows for easy installation, and the breaker is rated for up to 14kA interrupting capacity at 600VAC. It is UL 489 listed and meets multiple international standards for safety and performance. This breaker is ideal for use in main or feeder circuits where dependable overcurrent protection is required. The adjustable thermal magnetic trip unit provides both long time and instantaneous trip functions for enhanced circuit protection. The breaker is designed for use with copper or aluminum conductors and features line and load side lugs for secure connections.

• Part Number: JDP36225
• Manufacturer: Square D
• Series/Frame: PowerPact J
• Amperage: 225A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 14kA @ 600VAC
• Trip Unit: Thermal Magnetic
• Functions: Long Time and Instantaneous Trip
• Terminal Connection: Line and Load Side Lug
• Standards: UL 489, CE, CSA, NEMA, NOM, IEC, RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDP36225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDP
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug, Terminal Nut
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901947141
• GTIN : 00785901947141
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
