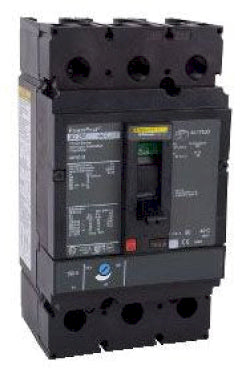

JDP36200 - Square D 200A 600V 3 Pole Molded Case Circuit Breaker Bolt-On Mount

JDP36200

JDP36200 is a Square D 3 pole molded case circuit breaker rated for 200 amps and 600 volts with bolt-on mounting.This thermal magnetic circuit breaker from the JDP series provides reliable protection with an interrupt rating of 18kA at 480V and 14kA at 600V. It features long time and instantaneous trip functions and is UL Listed, CSA Certified, and IEC Rated for safety and compliance.

• Amperage: 200A
• Voltage: 600V
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA @ 480V, 14kA @ 600V
• Trip Unit: Thermal Magnetic with long time and instantaneous functions
• Series/Frame: JDP
• Certifications: UL Listed, CSA Certified, IEC Rated
• Phase: 3
• Manufacturer: Square D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDP36200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDP
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug, Terminal Nut
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901947134
• GTIN : 00785901947134
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
