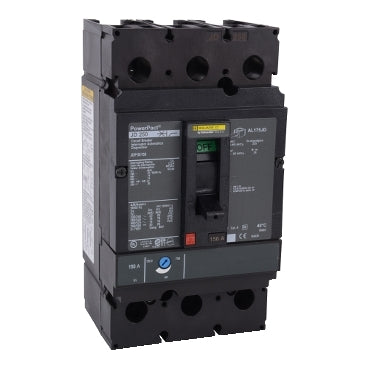

JDP36150 - Square D 150A 3-Pole 600VAC Thermal Magnetic Circuit Breaker

JDP36150

JDP36150 is a 3-pole molded case circuit breaker manufactured by Square D with a 150 amp current rating and 600VAC voltage rating, featuring thermal-magnetic trip protection for reliable overcurrent and short-circuit protection in industrial and commercial power distribution applications.PowerPacT J Series design provides dependable performance in demanding environments. The breaker utilizes thermal-magnetic trip technology with fixed instantaneous trip characteristics and lug-type terminal connections with terminal nuts for secure phase connections (ABC). This unit delivers robust protection with an interrupt rating of 25kA at 240VAC, making it suitable for various distribution panel configurations.

• Part Number: JDP36150
• Manufacturer: Square D
• Amperage Rating: 150 Amps
• Voltage Rating: 600VAC
• Poles: 3
• Trip Unit Type: Thermal-Magnetic
• Interrupt Rating: 25kA at 240VAC
• Terminal Connection: Lug with Terminal Nut
• Phase Configuration: ABC
• Series: PowerPacT J
• Instantaneous Trip: Fixed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDP36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDP
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug, Terminal Nut
• Frame Size : J
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.3
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
