JDL26225 - Square D 225A 600V 2-Pole PowerPacT J-Frame Molded Case Circuit Breaker

JDL26225

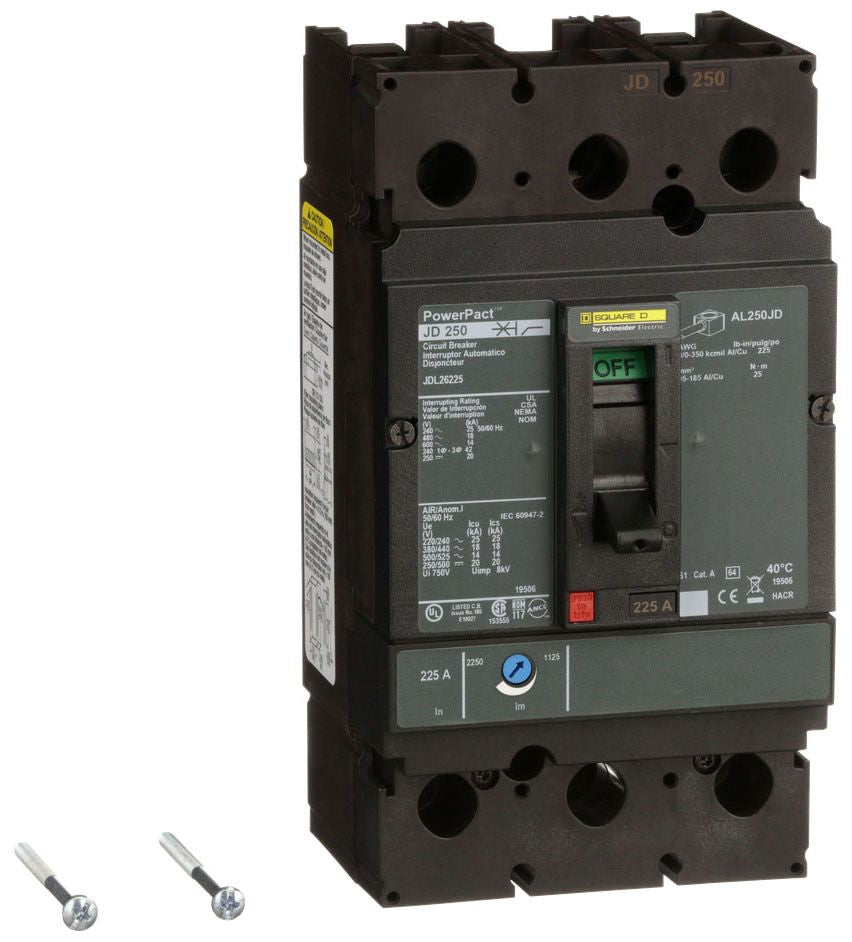

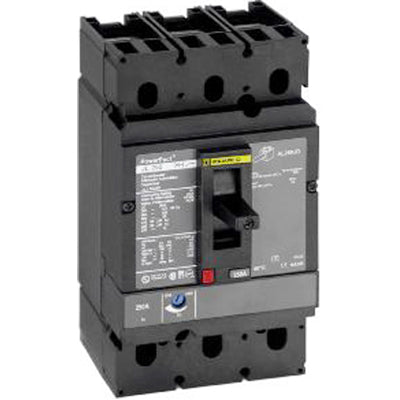

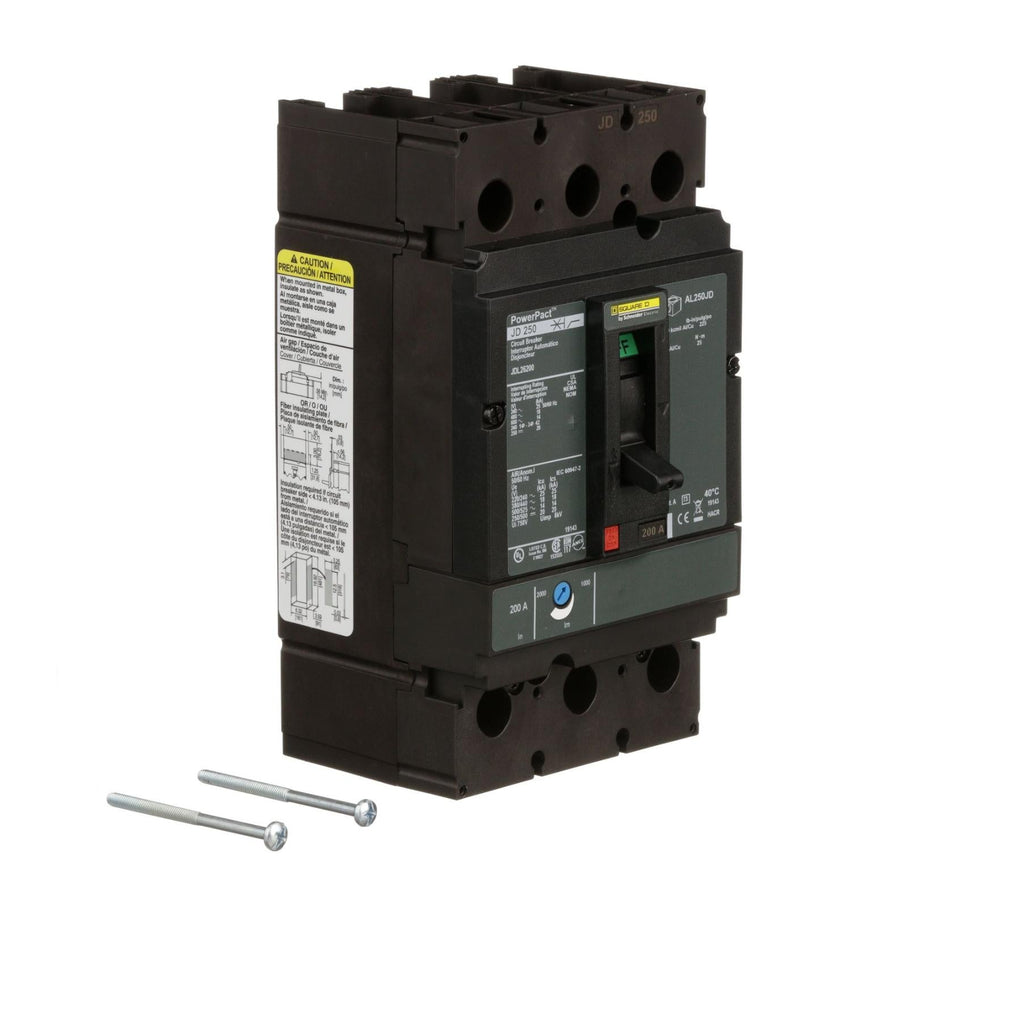

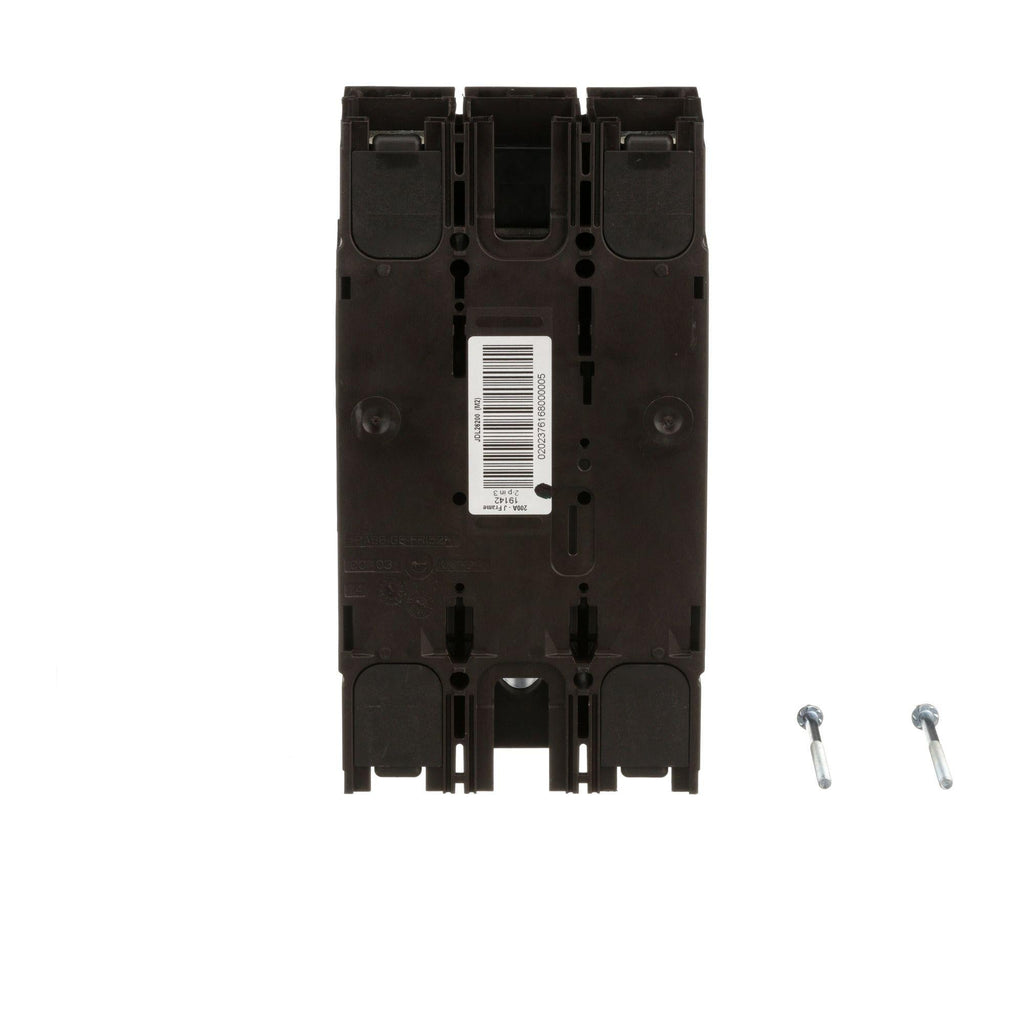

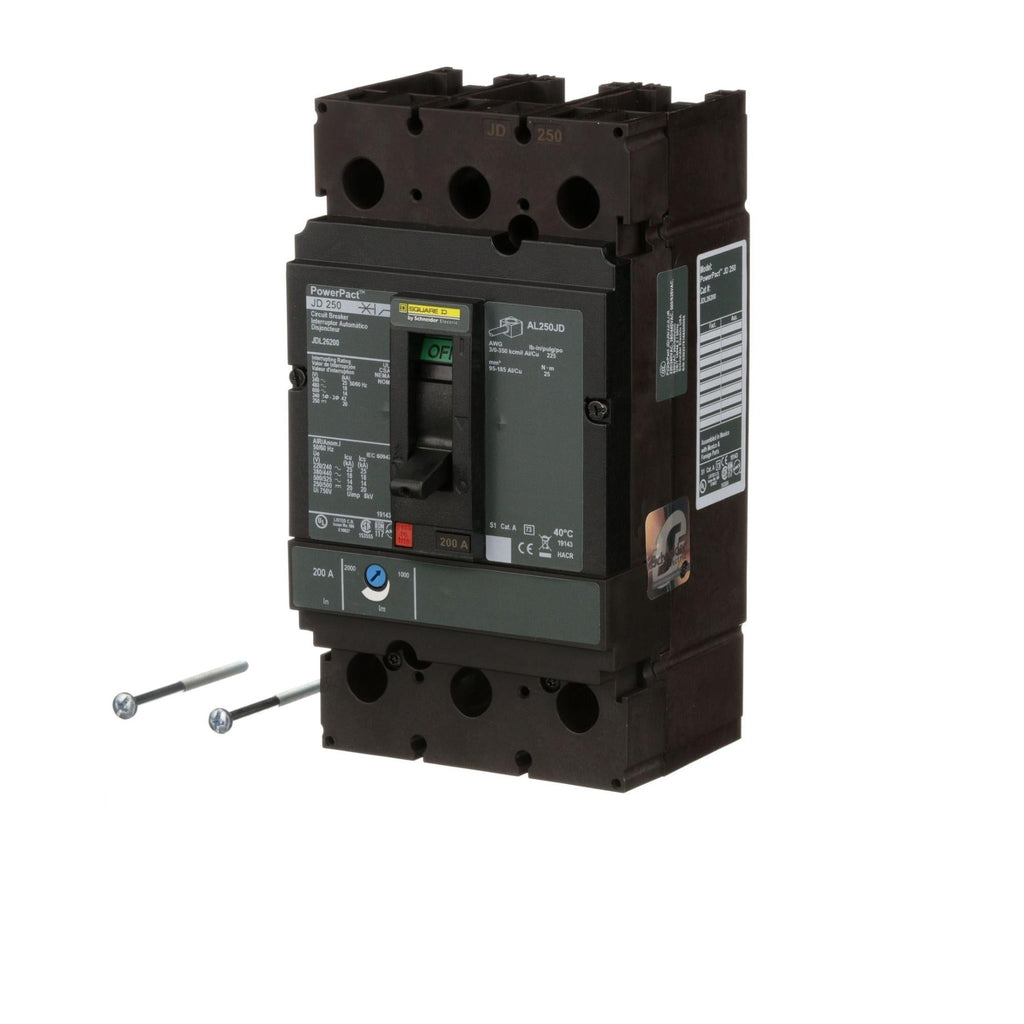

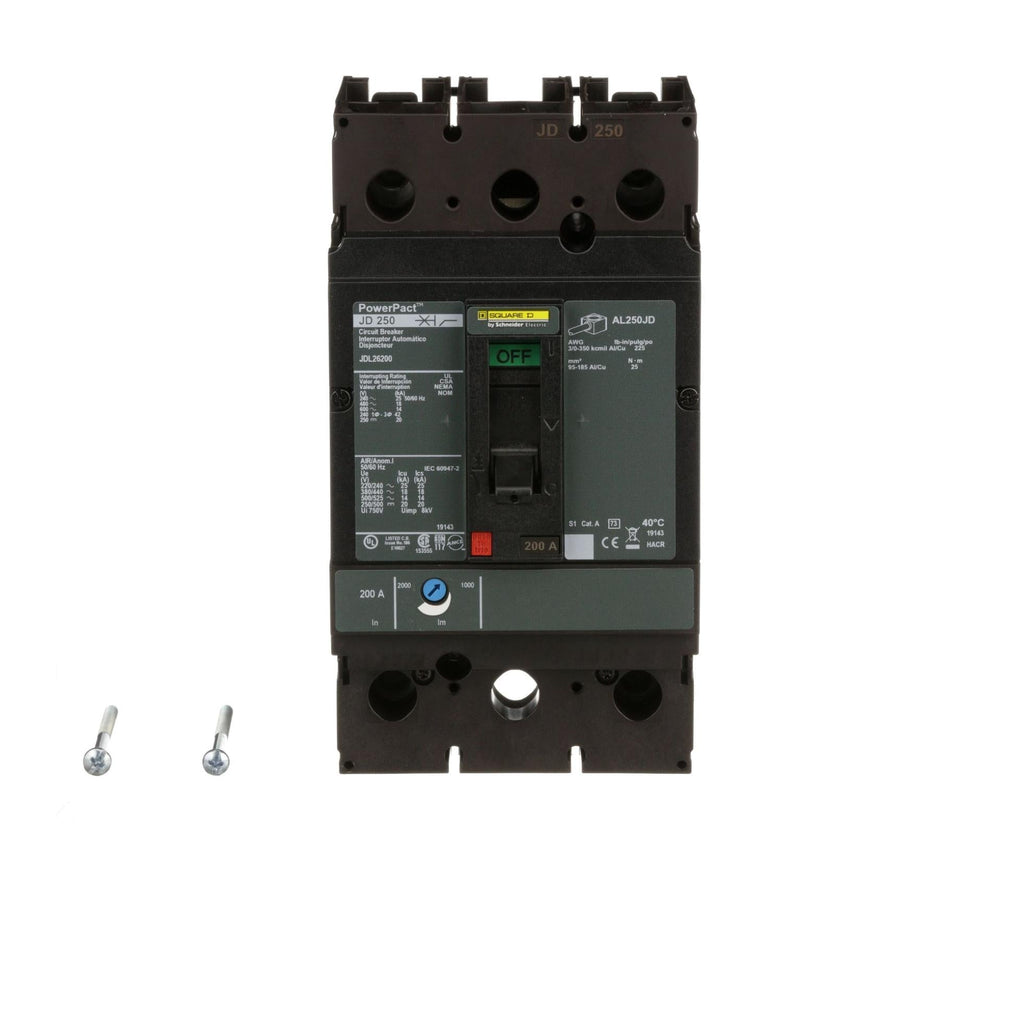

JDL26225 is a Square D PowerPacT J-Frame molded case circuit breaker providing 225 amps of thermal magnetic protection at 600 volts with 2 poles.This 2-pole circuit breaker features a 14kA interrupt rating at 600VAC, thermal magnetic trip unit, and an 80% continuous current rating. It is designed for unit mount installation with lugs on both line and load sides. The breaker complies with UL, CSA, NOM, IEC standards, and is CE marked. It includes dual-break rotating contacts to reduce peak current during short circuits and a manual push-to-trip button.

• Amperage: 225A
• Voltage: 600VAC
• Poles: 2
• Frame: PowerPacT J-Frame
• Mounting Type: Unit Mount
• Interrupt Rating: 14kA at 600VAC
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Connection: Lugs on line and load sides
• Standards: UL, CSA, NOM, IEC, CE Marked
• Functions: Long-Time and Instantaneous
• Dimensions (HxWxD): 7.52 x 4.09 x 3.39 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDL26225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDL
• Voltage : 600
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JD
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901623182
• GTIN : 00785901623182
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.621
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
