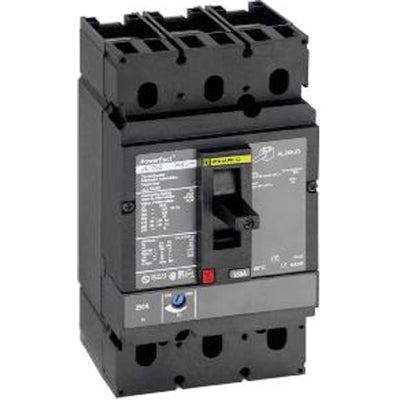

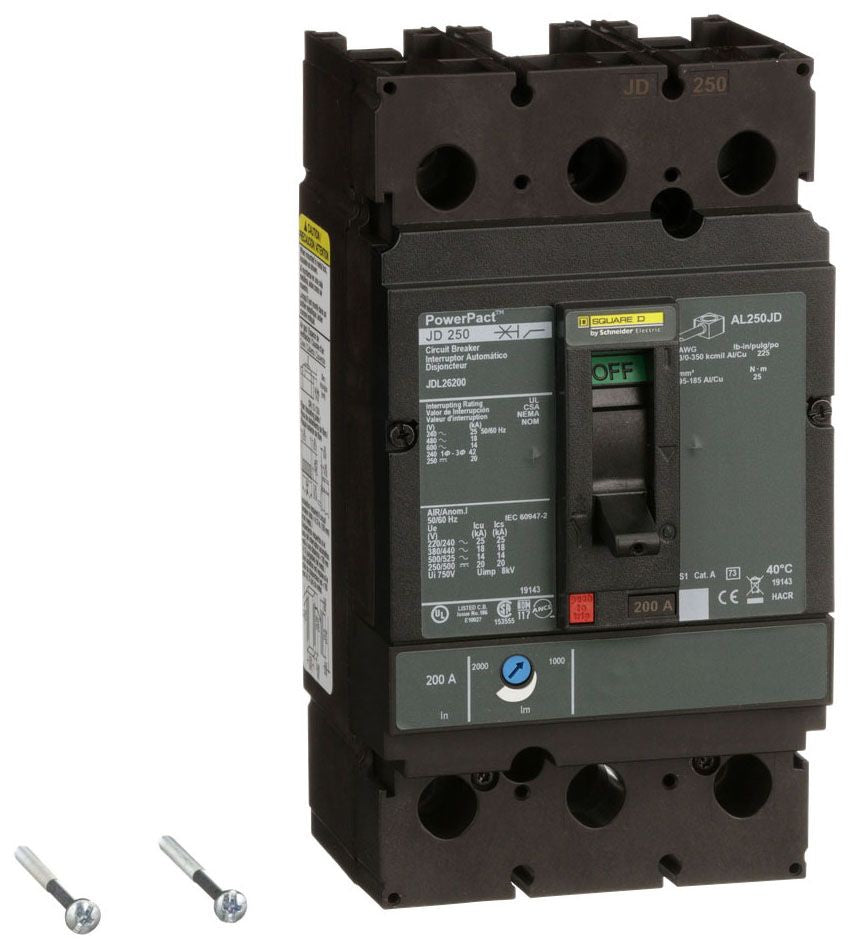

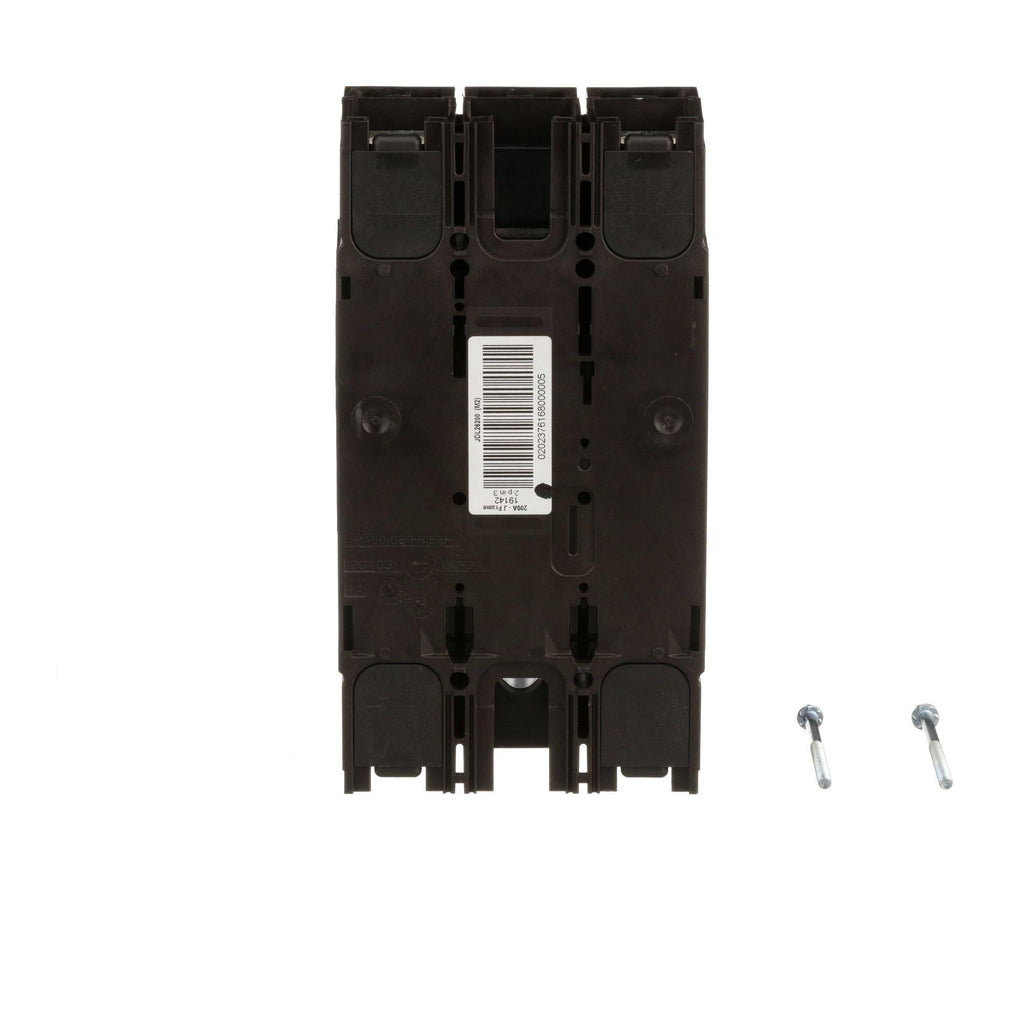

JDL26200 - Square D 200A 600V 2-Pole PowerPact J Molded Case Circuit Breaker Thermal Magnetic

JDL26200

JDL26200 is a Square D PowerPact J series molded case circuit breaker providing 200 amps of current protection at up to 600 volts AC with 2 poles.This thermal magnetic circuit breaker features a unit mount design with a 25 kA interrupt rating at 240 VAC and 14 kA at 600 VAC. It supports copper and aluminum cable sizes from 3/0 AWG to 350 kcmil and complies with UL 489, CSA, CE, NOM, IEC, CCC, and UKCA certifications. The breaker offers adjustable trip settings and current limiting for reliable overload and short circuit protection.

• Amperage: 200A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 2
• Interrupt Rating: 25 kA @ 240 VAC, 18 kA @ 480 VAC, 14 kA @ 600 VAC
• Mounting Type: Unit Mount
• Series/Frame: PowerPact J
• Trip Unit: Thermal Magnetic, Adjustable
• Cable Size: 3/0 AWG to 350 kcmil copper/aluminum
• Certifications: UL 489, CSA, CE, NOM, IEC, CCC, UKCA
• Breaking Capacity Code: D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDL26200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDL
• Voltage : 600
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JD
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901955801
• GTIN : 00785901955801
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.601
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
