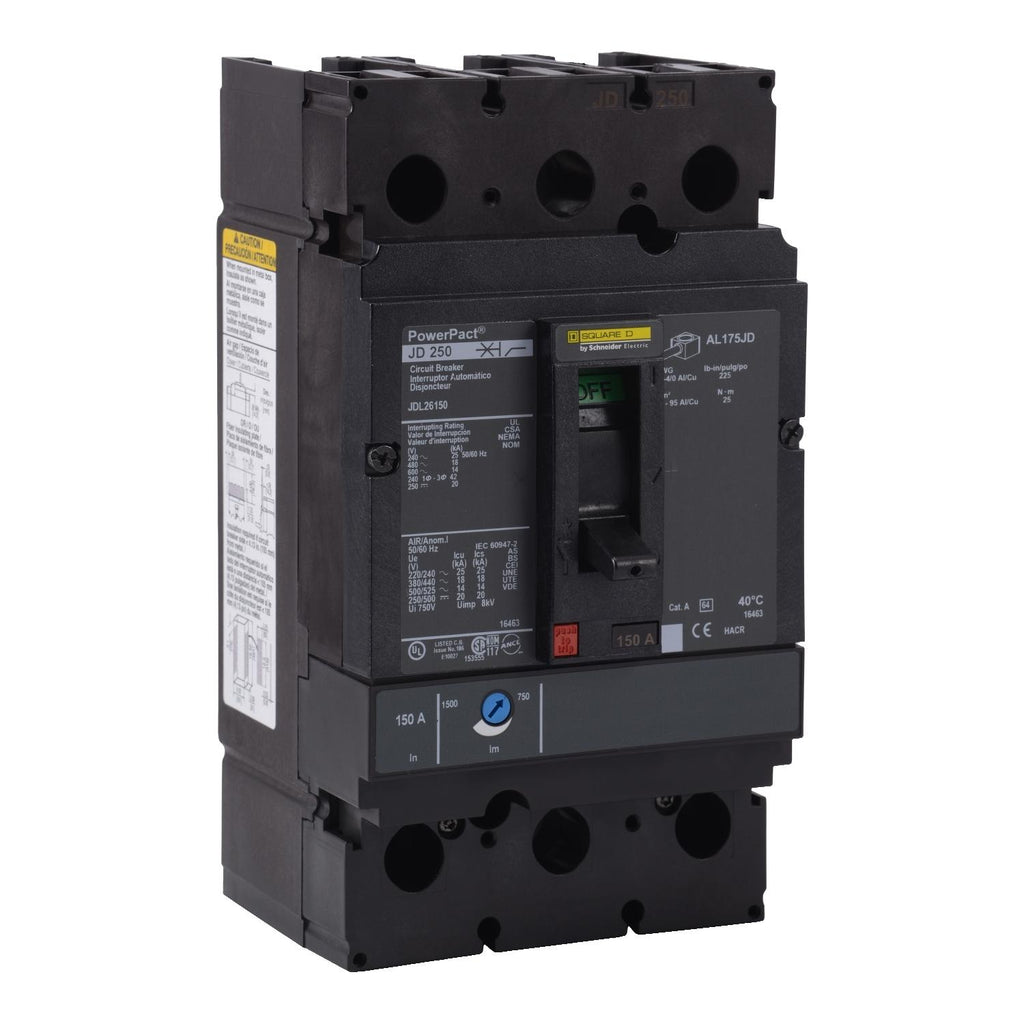

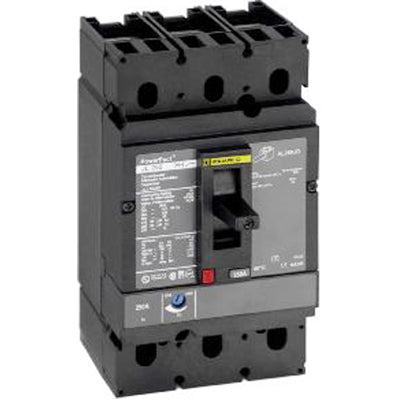

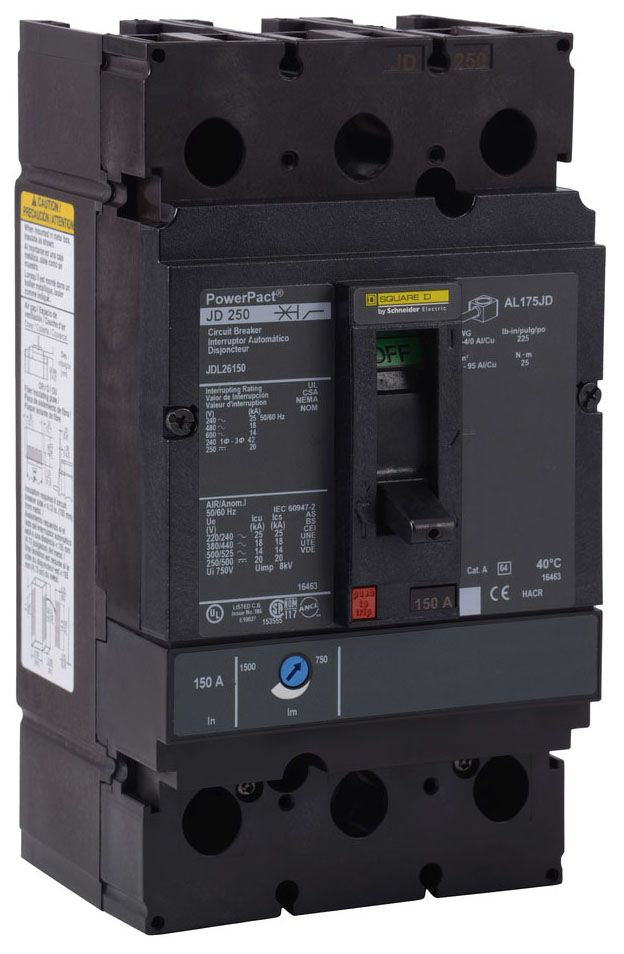

JDL26150 - Square D 150A 600V 2-Pole Molded Case Circuit Breaker J Frame

JDL26150

JDL26150 is a 150 amp, 2-pole molded case circuit breaker from Square D designed for reliable power distribution protection.This Square D J Frame breaker features a thermal magnetic trip unit with current limiting and adjustable type characteristics. It supports up to 600 volts AC and 250 volts DC, with a high interrupt rating suitable for demanding applications. The unit mount design ensures easy installation and compliance with UL, CSA, and IEC certifications.

• Amperage: 150A
• Voltage Rating: 600VAC / 250VDC
• Poles: 2
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA at 480VAC, 14kA at 600VAC, 25kA at 240VAC
• Series/Frame: J Frame
• Trip Unit: Thermal Magnetic, Current Limiting, Adjustable
• Certifications: UL Listed, CSA Certified, IEC Rated
• Dimensions: 4.09" W x 3.39" D x 7.52" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDL26150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDL
• Voltage : 600
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JD
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901955771
• GTIN : 00785901955771
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.68
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
