JDC3250W - Eaton 250A 600VAC 3-Pole J-Frame Molded Case Circuit Breaker Fixed Thermal Magnetic Trip

JDC3250W

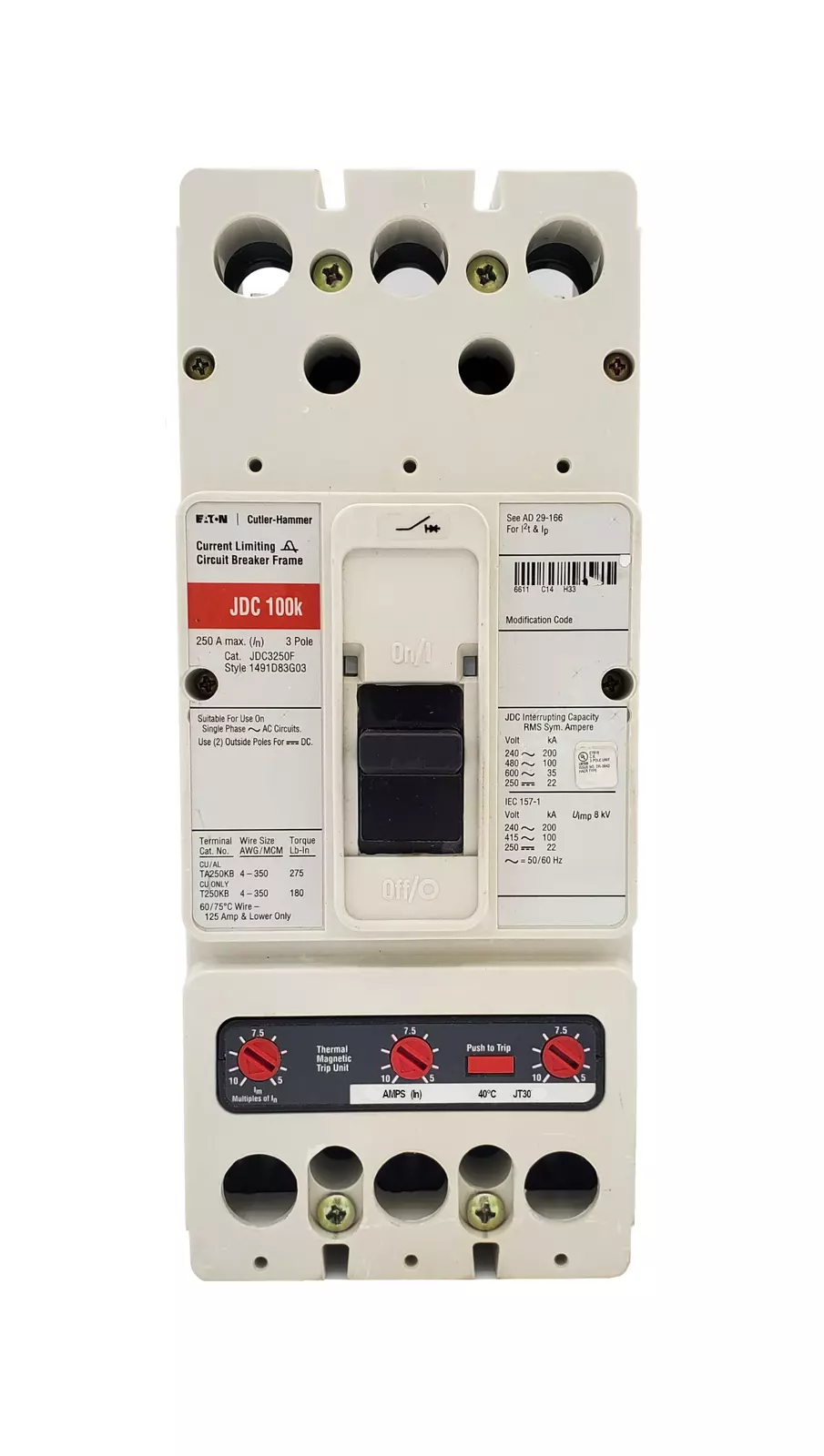

JDC3250W is an Eaton Series C complete molded case circuit breaker designed for reliable power distribution protection.This 3-pole breaker features a 250 ampere rating and operates at 600 VAC with a J-frame design. It includes a fixed thermal and fixed magnetic trip unit for dependable overcurrent protection. The breaker has an ultra-high interrupting capacity of 200 kA at 240 VAC and 100 kA at 480 VAC, ensuring superior performance in demanding electrical environments. Constructed with aluminum terminals and rated for 50/60 Hz frequency, it is suitable for line and load connections.

• Amperage: 250A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Frame: J
• Trip Type: Fixed Thermal/Fixed Magnetic
• Interrupt Rating: 200 kA at 240 VAC, 100 kA at 480 VAC
• Frequency Rating: 50/60 Hz
• Terminal Material: Aluminum
• Series: Eaton Series C
• Mounting Type: Complete breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: JDC3250W
• Manufacturer : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JDC
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679340943
• GTIN : 00786679340943
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 9.15
• Certification : UL Listed
