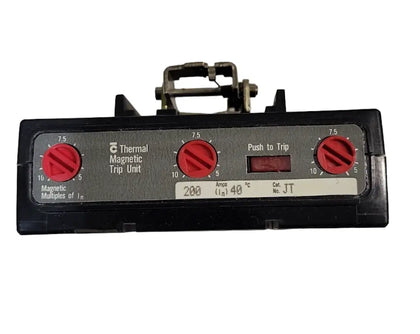

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Trip Unit
- Series
- Series C
- Frame
- C
- Rated current
- 250
- Max current rating
- 250
- Voltage
- 600VAC
- Poles
- 3
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Country of origin
- Dominican Republic
- Amperage Maximum
- 250
- Amperage Minimum
- 250
Show all specifications (6 more)
- Compatible Frames
- JT
- UPC
- 078667940417
- GTIN
- 00786679404171
- Dimensions
- 5.25 in x 4.25 in x 6.75 in (Length/Depth x Height x Width)
- Weight
- 1.22 lb
- Certification
- UL
Product description & additional details
JT3250T
JT3250T is a Cutler Hammer (Eaton) molded case circuit breaker trip unit designed for reliable protection in commercial and industrial applications.
This thermal-magnetic trip unit features a fixed thermal and adjustable magnetic trip mechanism, providing both long-time and instantaneous overcurrent protection. It is compatible with JT series breakers in the C series, J-K frame, and is suitable for three-phase systems.
-
Key Specifications
- Part Number: JT3250T
- Manufacturer: Cutler Hammer (Eaton)
- Amperage Rating: 250A
- Voltage Rating: 600VAC
- Number of Poles: 3
- Mounting Type: Fixed (integral to breaker)
- Interrupt Rating: Not specified in available data
- Series/Frame: Series C, Frame J-K
- Trip Unit Type: Thermal-magnetic (T185), non-interchangeable
- Functions: Long-time and instantaneous (LI) protection
- Certifications: UL Listed
- Dimensions: 5.25" x 6.75" x 4.25"
- Weight: 1.22 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JT3250T
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Trip Unit
- Family : Series C
- Type : C
- Voltage : 600VAC
- Amperage : 250
- Poles : 3
- Functions : Long Time and Instantaneous Trip
- Amperage Maximum : 250
- Amperage Minimum : 250
- Protection : Thermal Magnetic
- Compatible Frames : JT
Product Data
- UPC : 078667940417
- GTIN : 00786679404171
- Country of Origin : Dominican Republic
- Dimensions : 5.25 in x 4.25 in x 6.75 in (Length/Depth x Height x Width)
- Weight : 1.22 lb
- Certification : UL
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
