Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

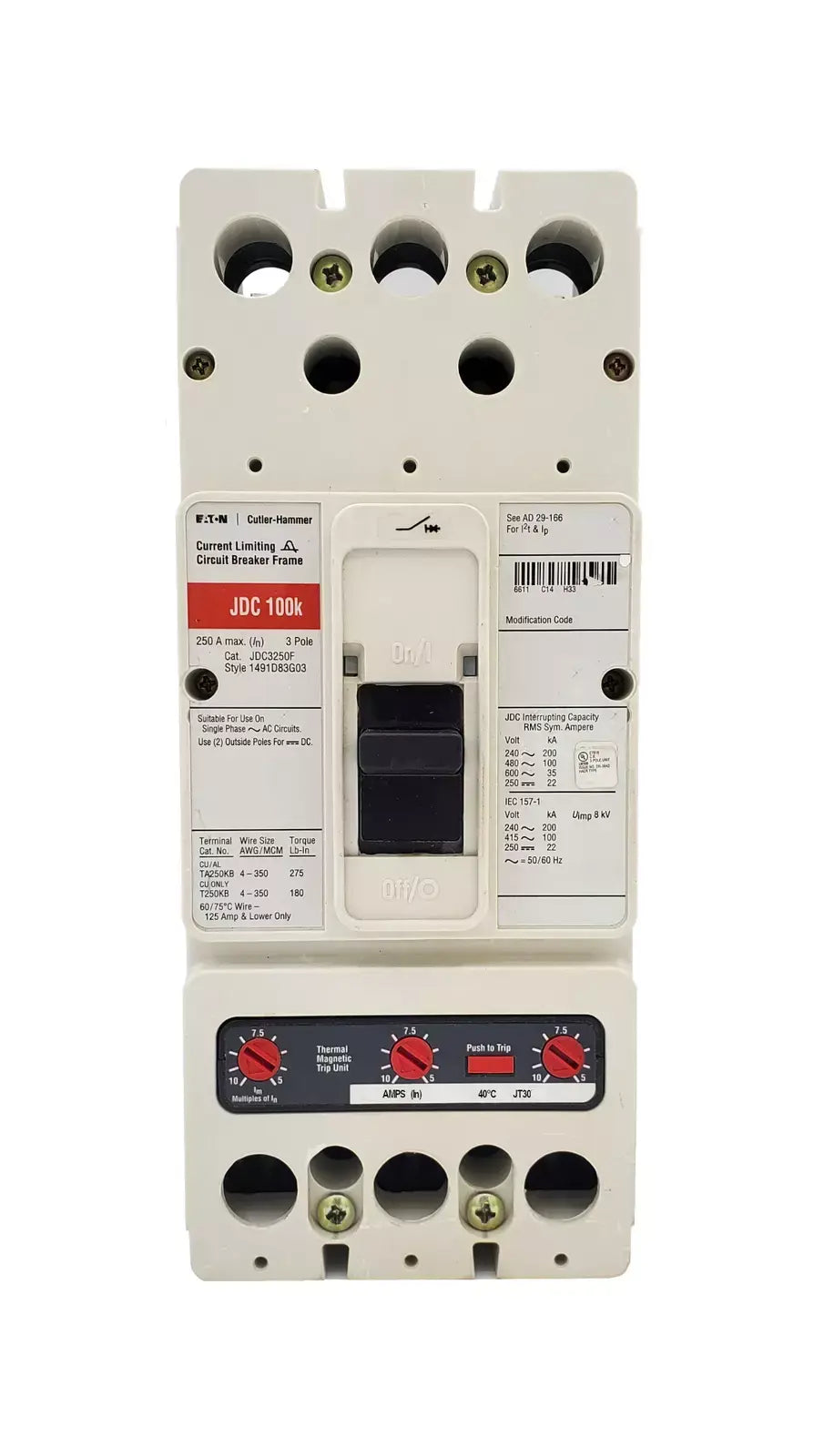

JDC3100W
JDC3100W is a 100 amp, 600 volt, 3 pole molded case circuit breaker from Eaton's Series C family designed for reliable circuit protection.JDC3100W features a fixed thermal and fixed magnetic trip type (T186) and is rated for 100 kiloamp interrupt capacity at 480 VAC and 50 kiloamp at 600 VAC. It is a feed-thru type breaker suitable for various industrial and commercial applications.
- Amperage Rating: 100 A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3
- Interrupt Rating: 200 kA @ 240 VAC, 100 kA @ 480 VAC, 50 kA @ 600 VAC
- Trip Type: Fixed thermal and magnetic (T186)
- Series: Eaton Series C
- Breaker Type: Molded Case Circuit Breaker (JDC frame)
- Mounting Type: Feed-Thru
- Certifications: UL Listed
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: JDC3100W
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDC
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- GTIN : 00621037102712
- Weight : 15
