Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
JDC3125

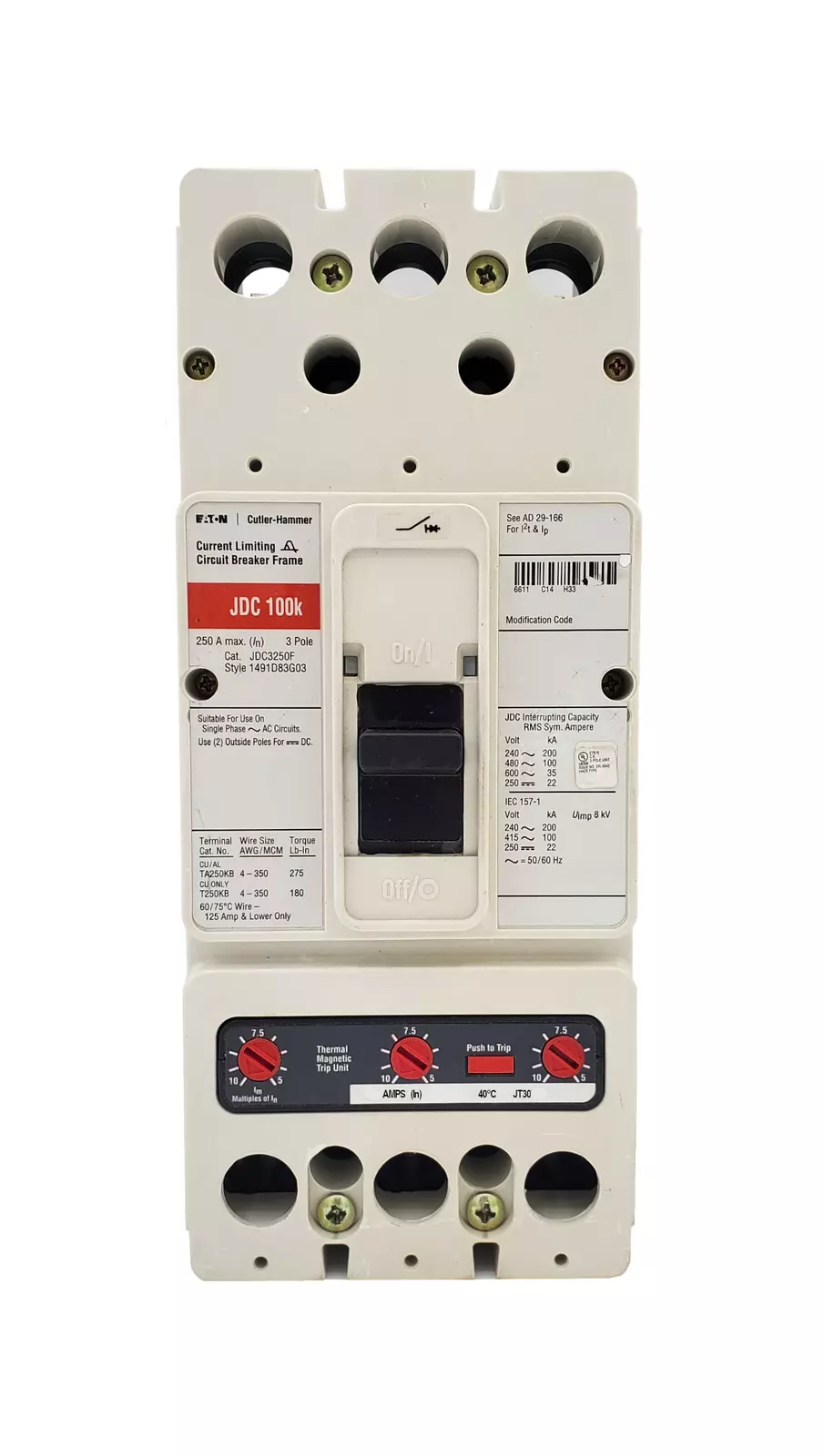

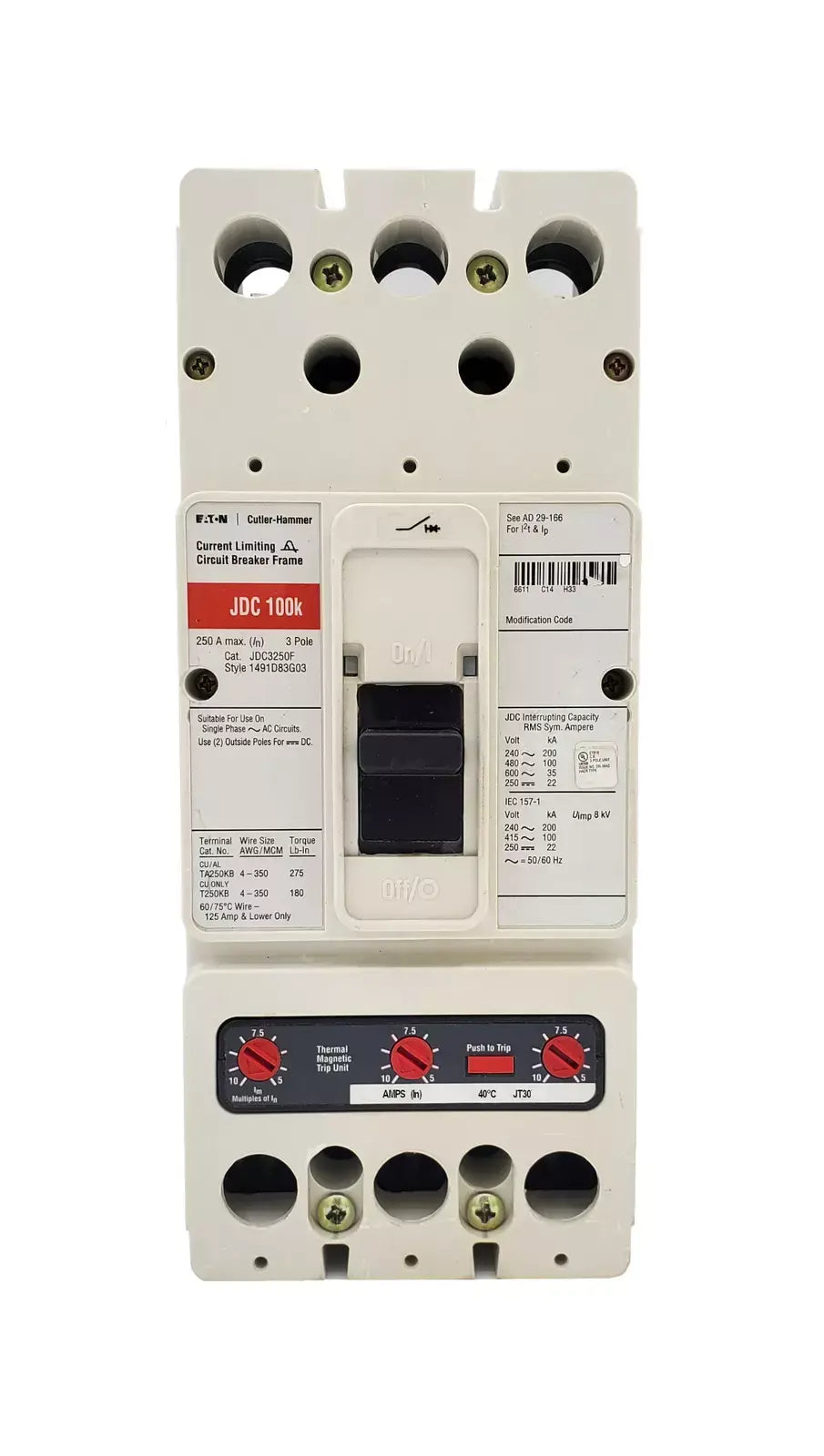

JDC3125 is a Westinghouse 3 pole, 125 amp, 600 volt bolt-on circuit breaker designed for reliable circuit protection.This molded case circuit breaker belongs to the J Series frame and features a thermal magnetic trip unit with long-time and instantaneous trip functions. It has a 22kA interrupting rating at 480 volts and is suitable for three-phase applications. The breaker uses bolt-on mounting and load side lug terminals for secure installation.
- Manufacturer: Westinghouse
- Part Number: JDC3125
- Amperage: 125A
- Voltage Rating: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 22kA at 480V
- Frame/Series: J Series
- Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
- Connection Type: Load Side Lug Terminals
- Phase: 3 Phase
Specifications
- Part Number: JDC3125
- Manufacturer : Westinghouse
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : JDC
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679032084
- GTIN : 00786679032084
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 14.25
- Certification : UL Listed
