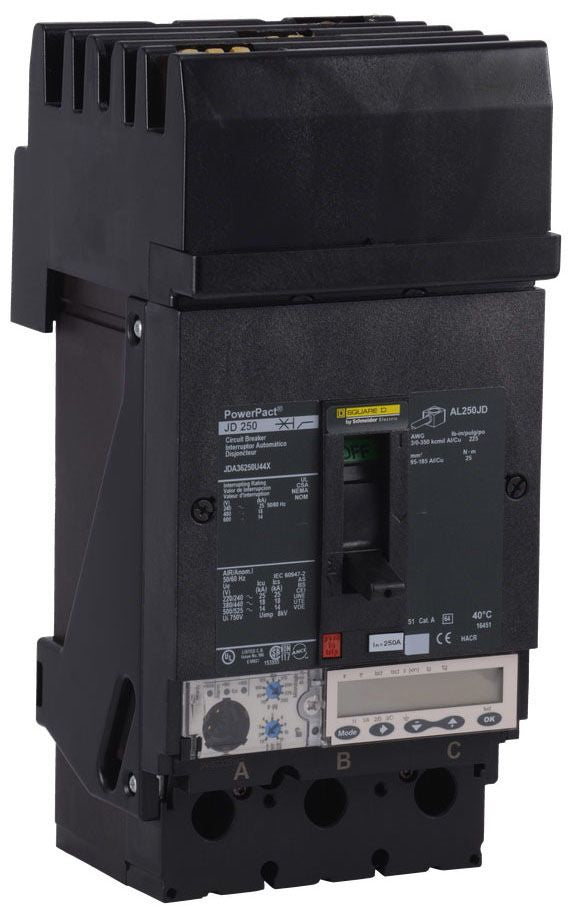

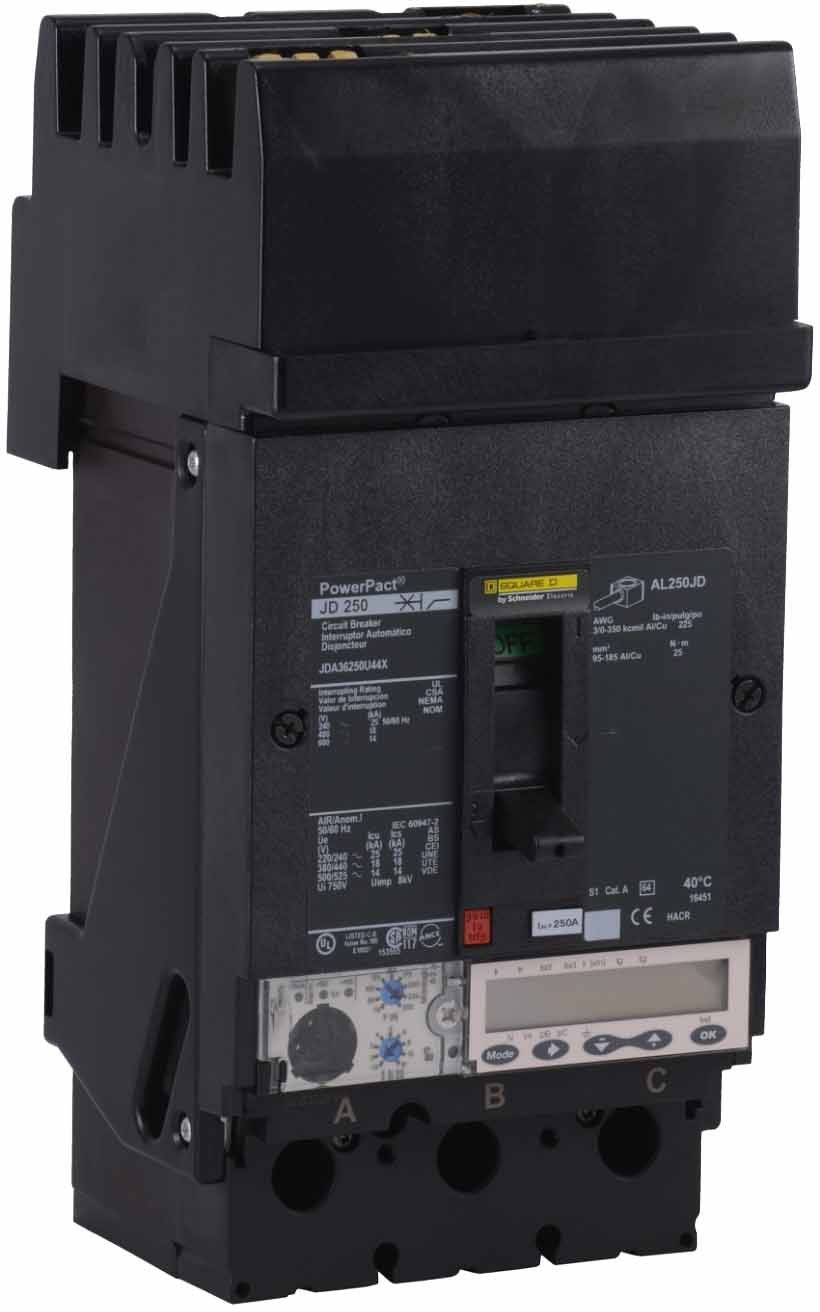

JDA36250U44X - Square D 250A 600V 3 Pole I-Line Molded Case Circuit Breaker LSIG Trip

JDA36250U44X

JDA36250U44X is a Square D 3 pole, 250 amp, 600 volt I-Line molded case circuit breaker with LSIG trip unit technology.This PowerPact J frame breaker features thermal magnetic trip, non-interchangeable trip unit, and is suitable for reverse fed applications with ABC phase connection. It has an 18kA interrupting rating at 480V and is designed for I-Line plug-in mounting with line/lug electrical connections.

Key Specifications
• Amperage: 250A
• Voltage: 600 VAC
• Poles: 3
• Frame Type: JDA (PowerPact J)
• Mounting Type: I-Line plug-in
• Interrupt Rating: 18kA @ 480V
• Trip Unit: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
• Connection: I-Line bracket with lugs
• Phase: ABC
• Trip Technology: Thermal Magnetic
• Continuous Current Rating: 80%
• Suitable for Reverse Fed Applications
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JDA36250U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : I-Line, Lug
• Frame Size : J
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Solid State
• Phase Connection : AB



Product Data

• UPC : 785901948797
• GTIN : 00785901948797
• Country of Origin : United States

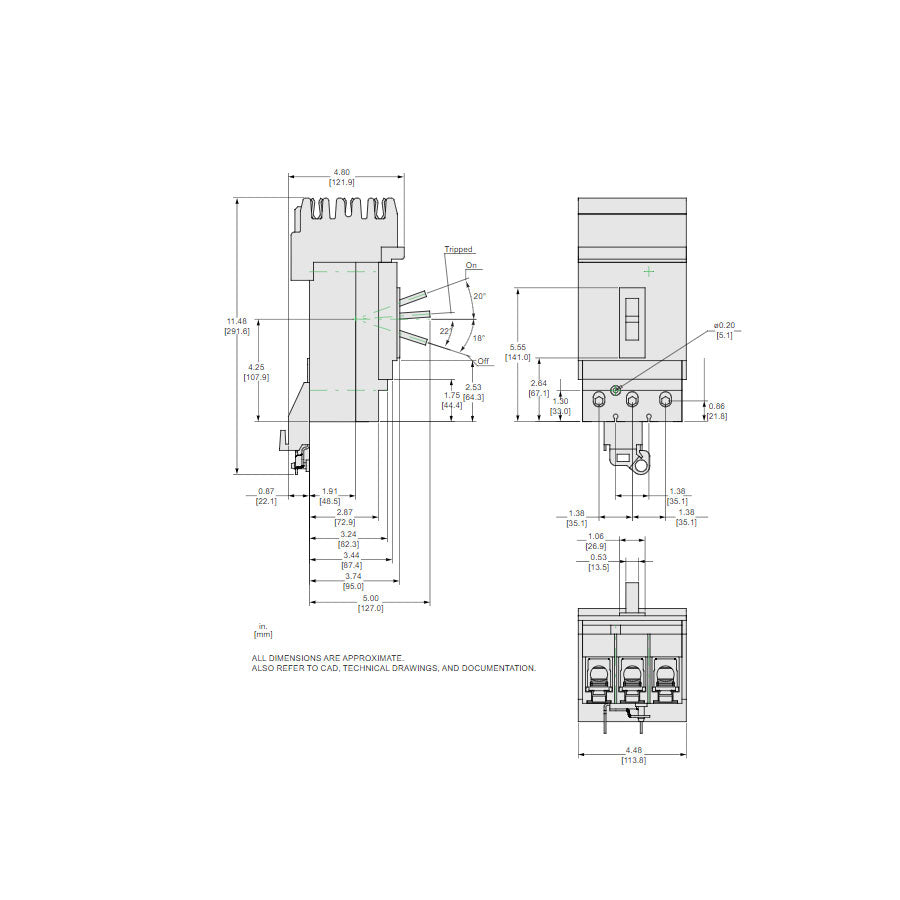

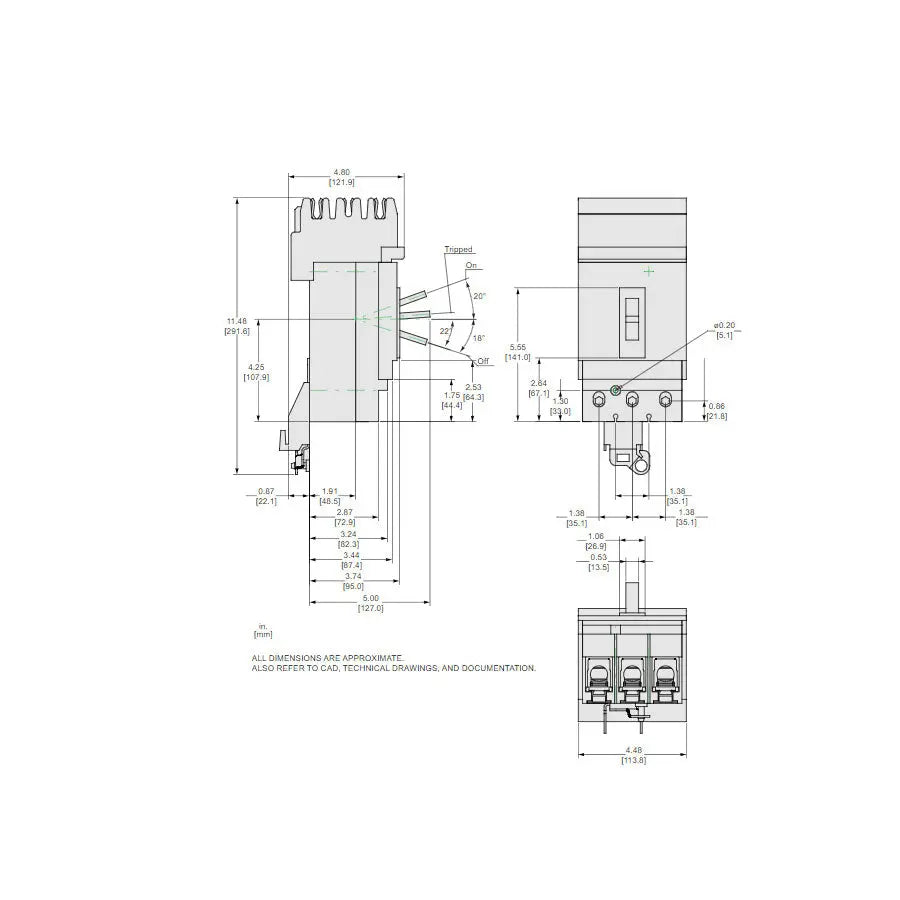

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
