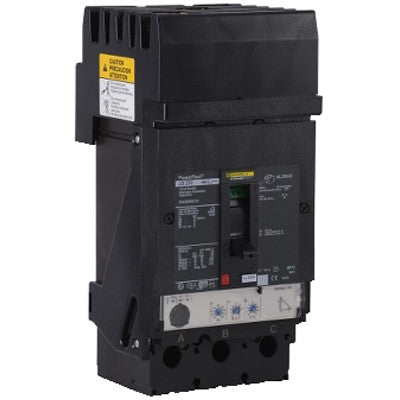

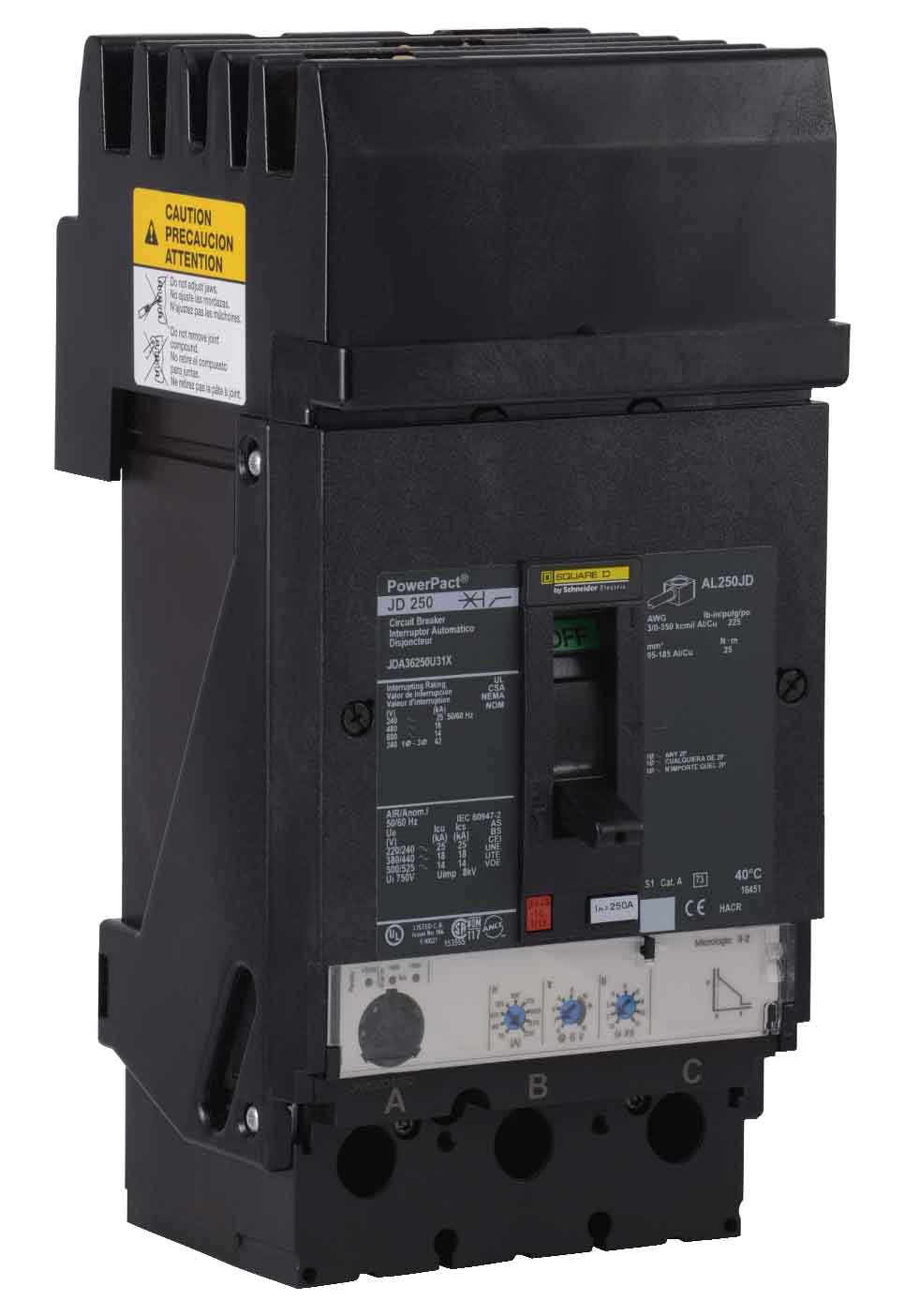

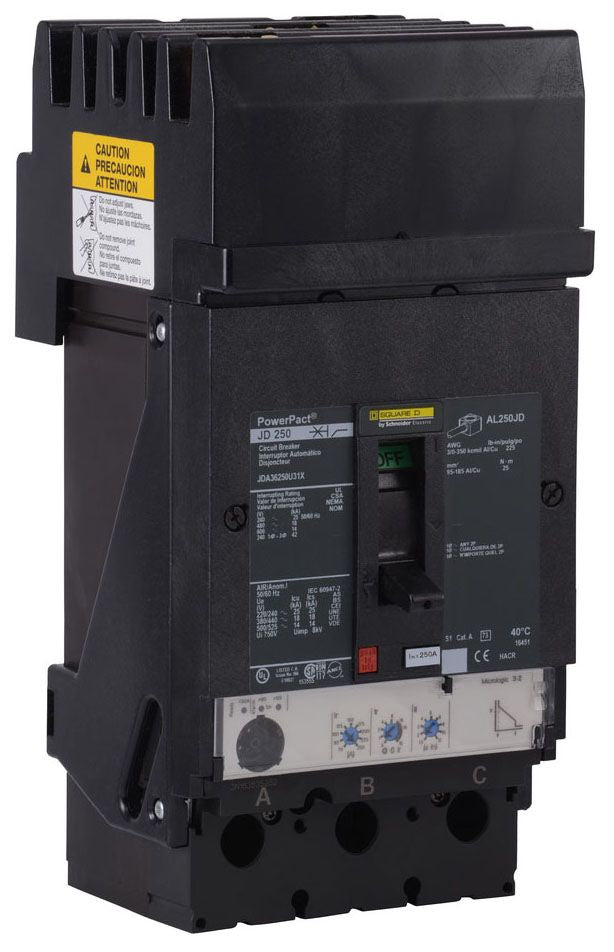

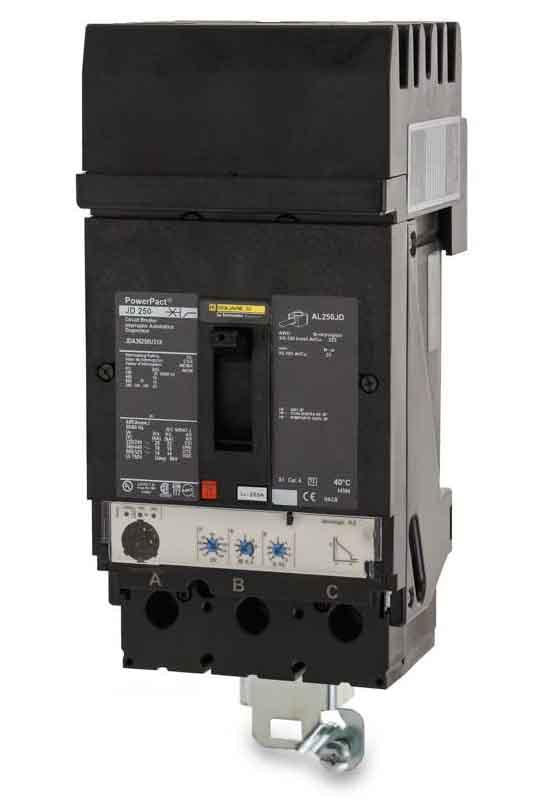

JDA36250U31X - Square D 250A 600V 3 Pole Molded Case Circuit Breaker I-Line Plug-On

JDA36250U31X

JDA36250U31X is a 250 Amp, 600 Volt, 3 Pole molded case circuit breaker from Square D designed for reliable power distribution protection.This Square D JDA36250U31X circuit breaker features a PowerPact J frame with I-Line plug-on mounting, a 14kA interrupt rating at 600VAC, and a Micrologic 3.2 electronic trip unit with Long-Time and Instantaneous trip functions. It is UL listed, CSA certified, and CE marked for safety and compliance.

• Amperage: 250A
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: I-Line Plug-On
• Interrupt Rating: 14kA at 600 VAC, 18kA at 480 VAC
• Series/Frame: PowerPact J (JDA type)
• Trip Unit: Micrologic 3.2 electronic
• Phase: 3
• Certifications: UL Listed, CSA, CE
• Current Limiting Type
• Standard LI trip functions (Long-Time, Instantaneous)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDA36250U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : J
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Solid State
• Phase Connection : BC

Product Data

• UPC : 785901127222
• GTIN : 00785901127222
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 7.17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
