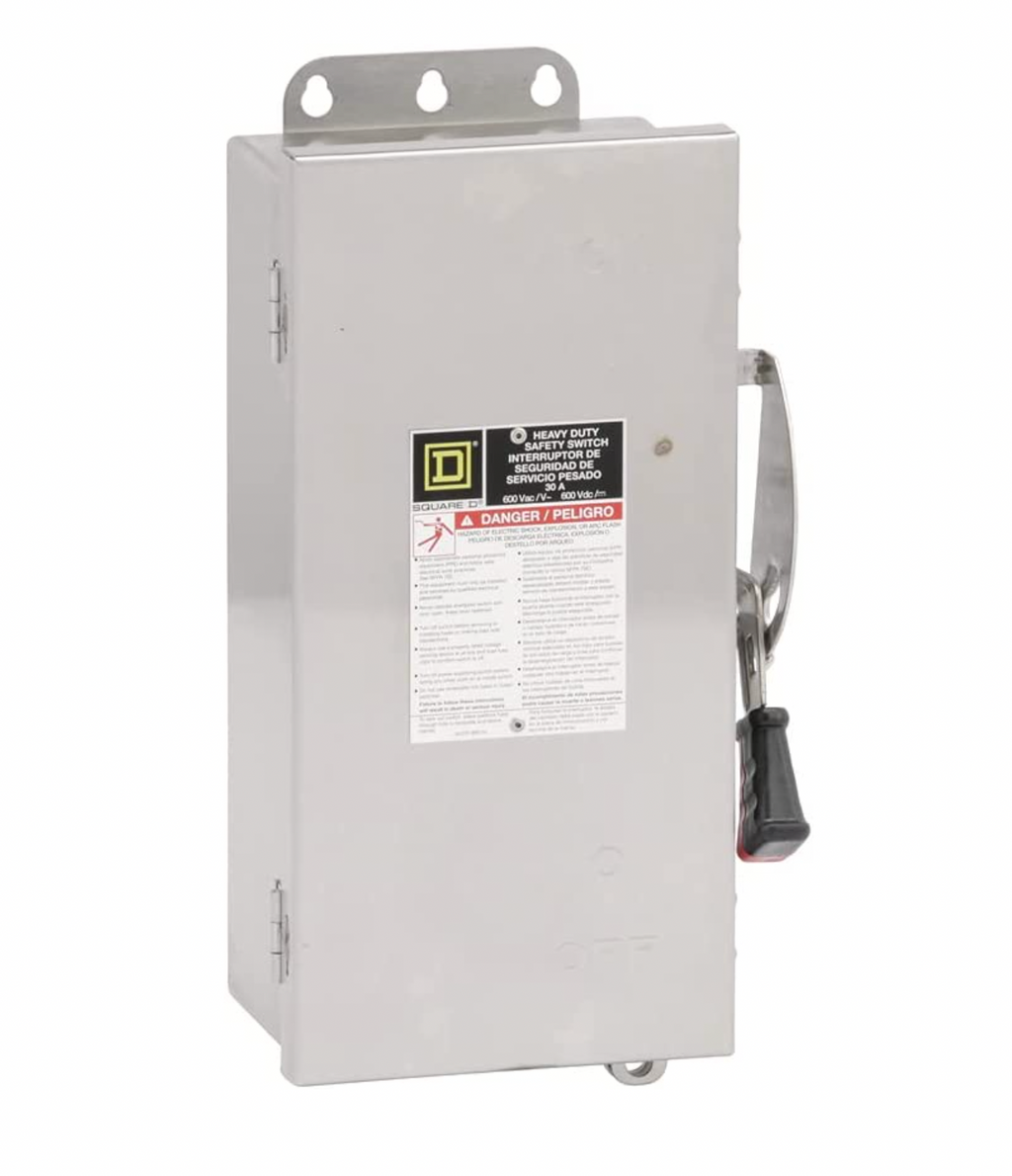

HU361DS - Square D 30A 600VAC 3 Pole Heavy Duty Non-Fusible Safety Switch Surface Mount NEMA 4/4X/5 Stainless Steel

HU361DS

HU361DS is a Square D heavy duty non-fusible safety switch rated for 30 amps and 600VAC/DC with 3 poles and surface mounting.

This safety switch features a 200kA interrupt rating at 600V, a 304 stainless steel enclosure rated NEMA 4/4X/5 for corrosion resistance and indoor/outdoor use, and a quick-make, quick-break operating mechanism. It is designed for service equipment applications with line and load lug terminal connections and supports wire gauges AWG 12 to AWG 6 aluminum and AWG 14 to AWG 6 copper. The switch is UL and CSA certified and meets NEMA and RoHS standards.

Key Specifications
• Amperage: 30 A
• Voltage: 600 VAC/DC
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 200kA @ 600V
• Series/Frame: HU
• Trip Unit: Non-Fusible
• Enclosure: 304 Stainless Steel, NEMA 4/4X/5
• Terminal Connection: Line and Load Lug
• Certifications: UL, CSA, NEMA, RoHS
• Wire Gauge: AWG 12-6 Aluminum, AWG 14-6 Copper
• Duty Rating: Heavy Duty

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU361DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : HU
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : 4/4X
• Compatible Frames : MD

Product Data

• UPC : 785901023630
• GTIN : 00785901023630
• Dimensions : 14.93 in (379.22 mm) x 8.67 in (220.22 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
• Weight : 13.371 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL
