HNF361J Siemens VBII Series Disconnect 600 ACV 30A Switch

HNF361J

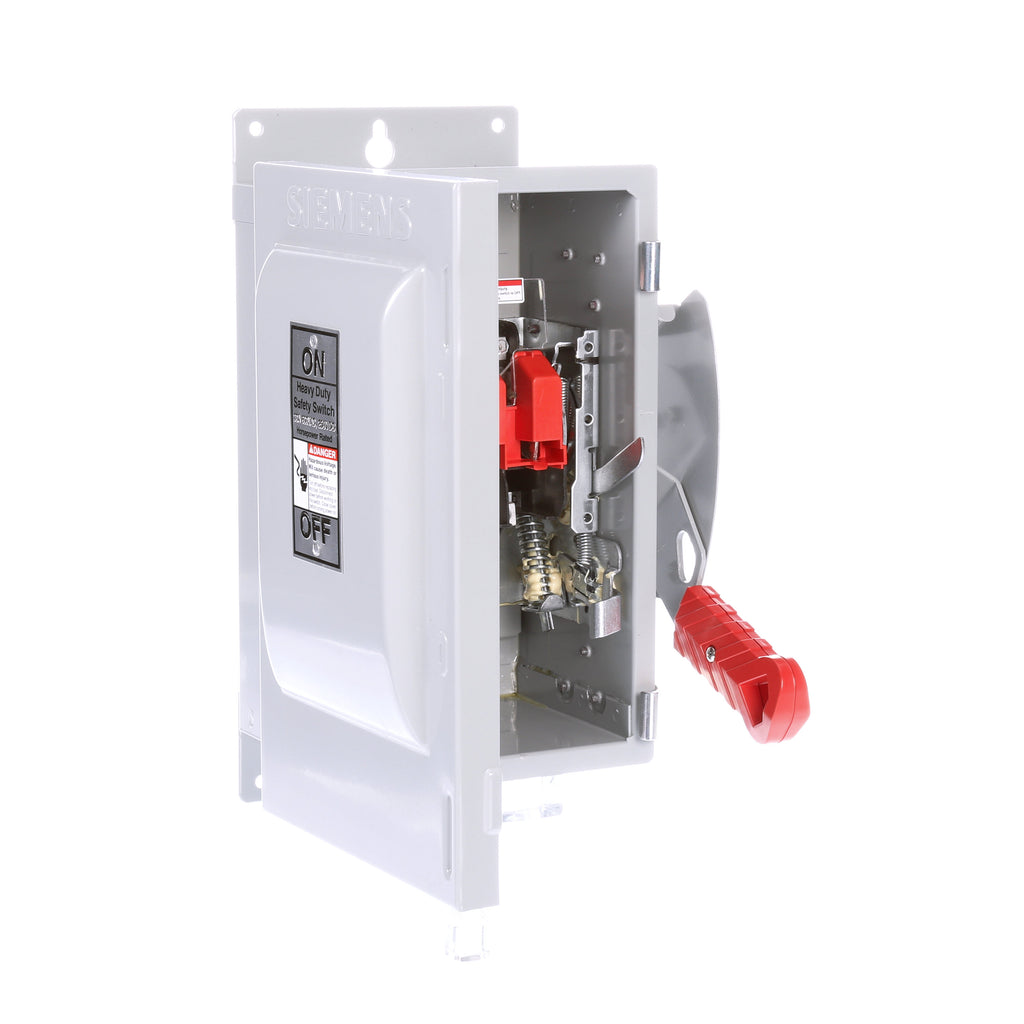

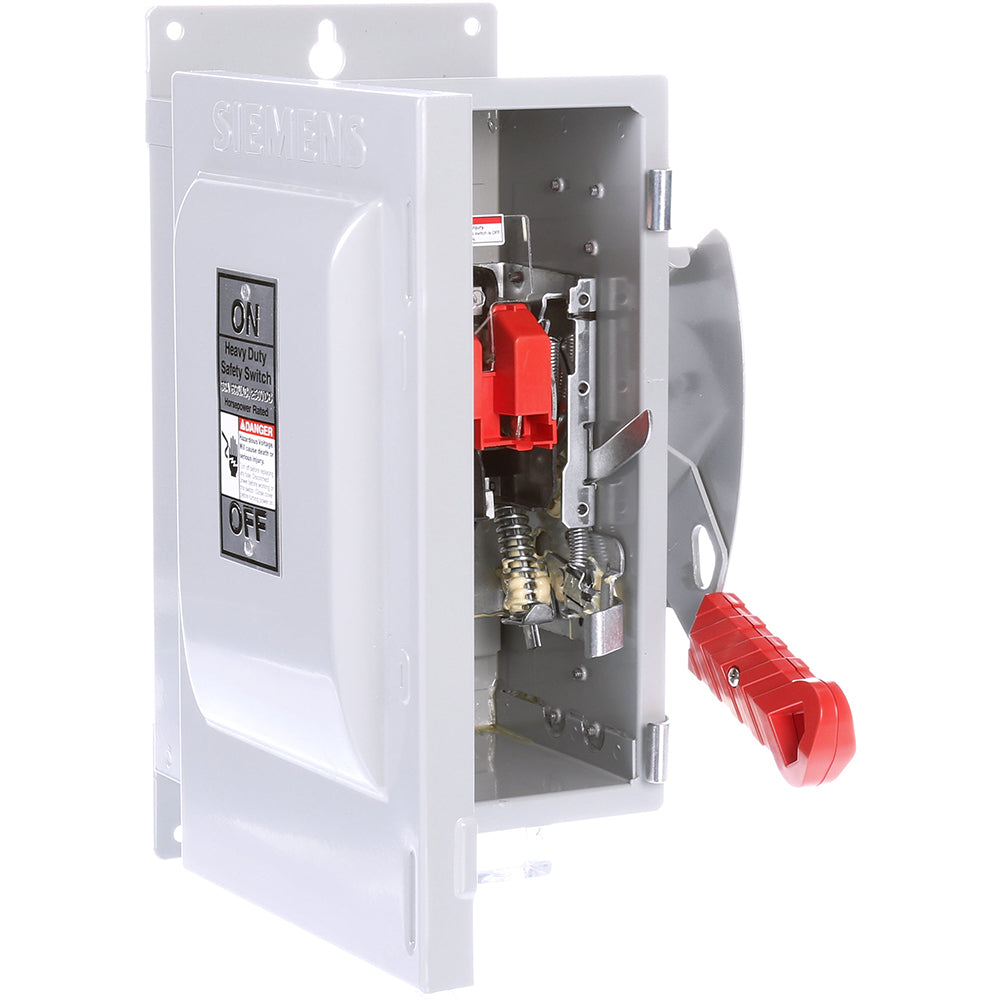

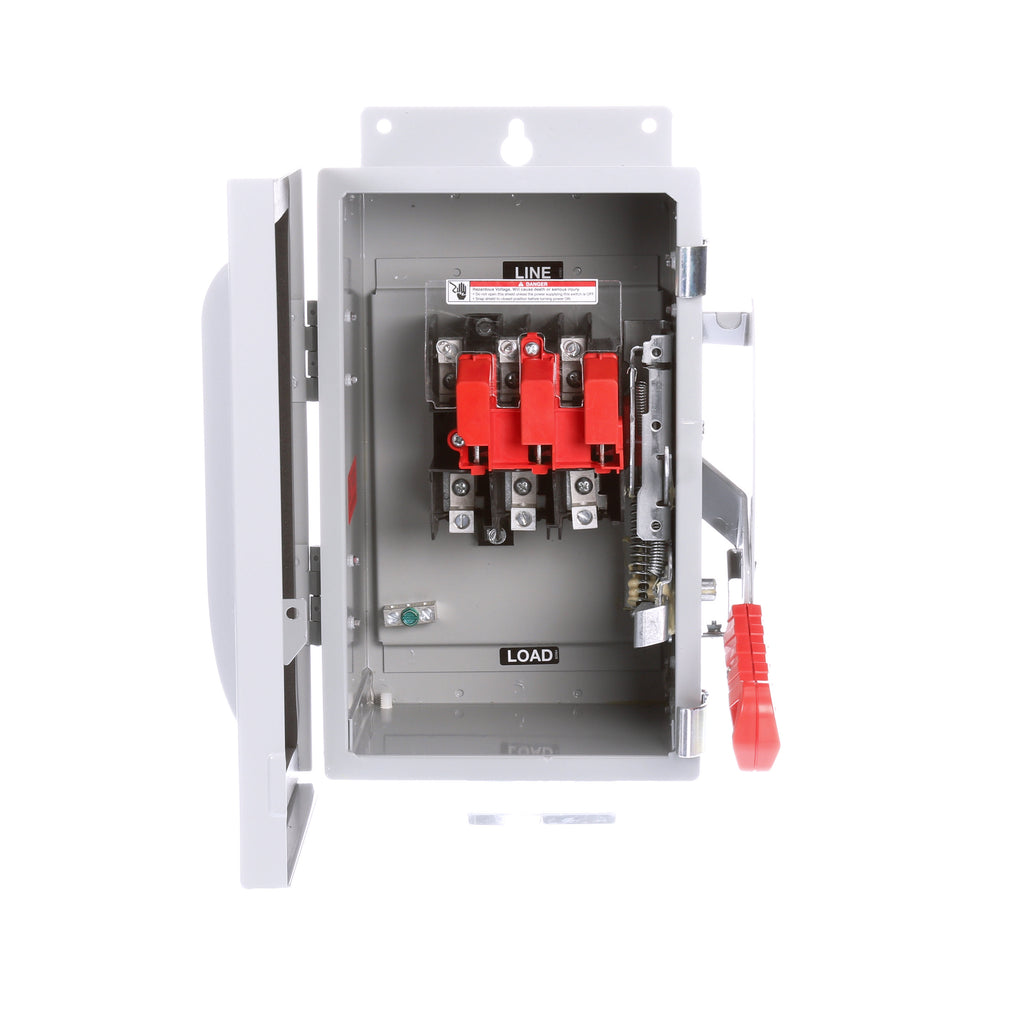

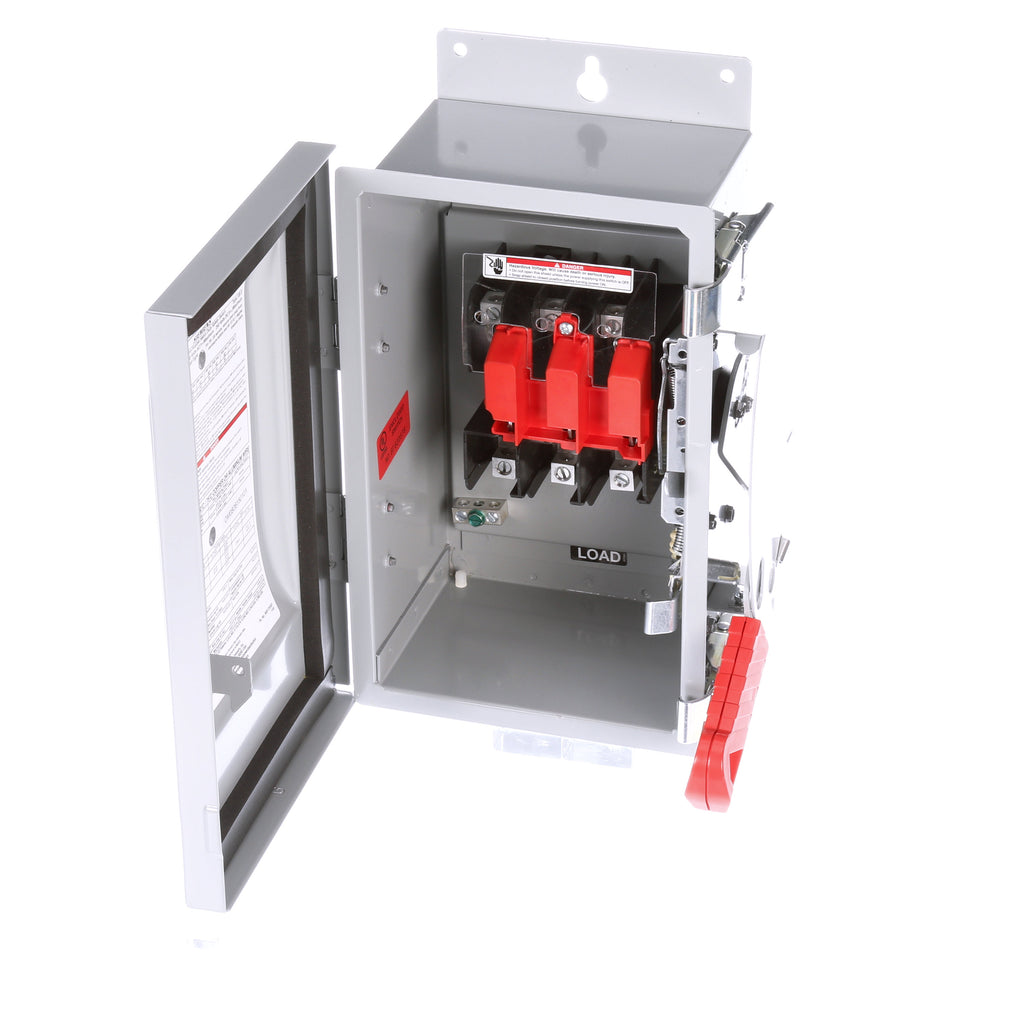

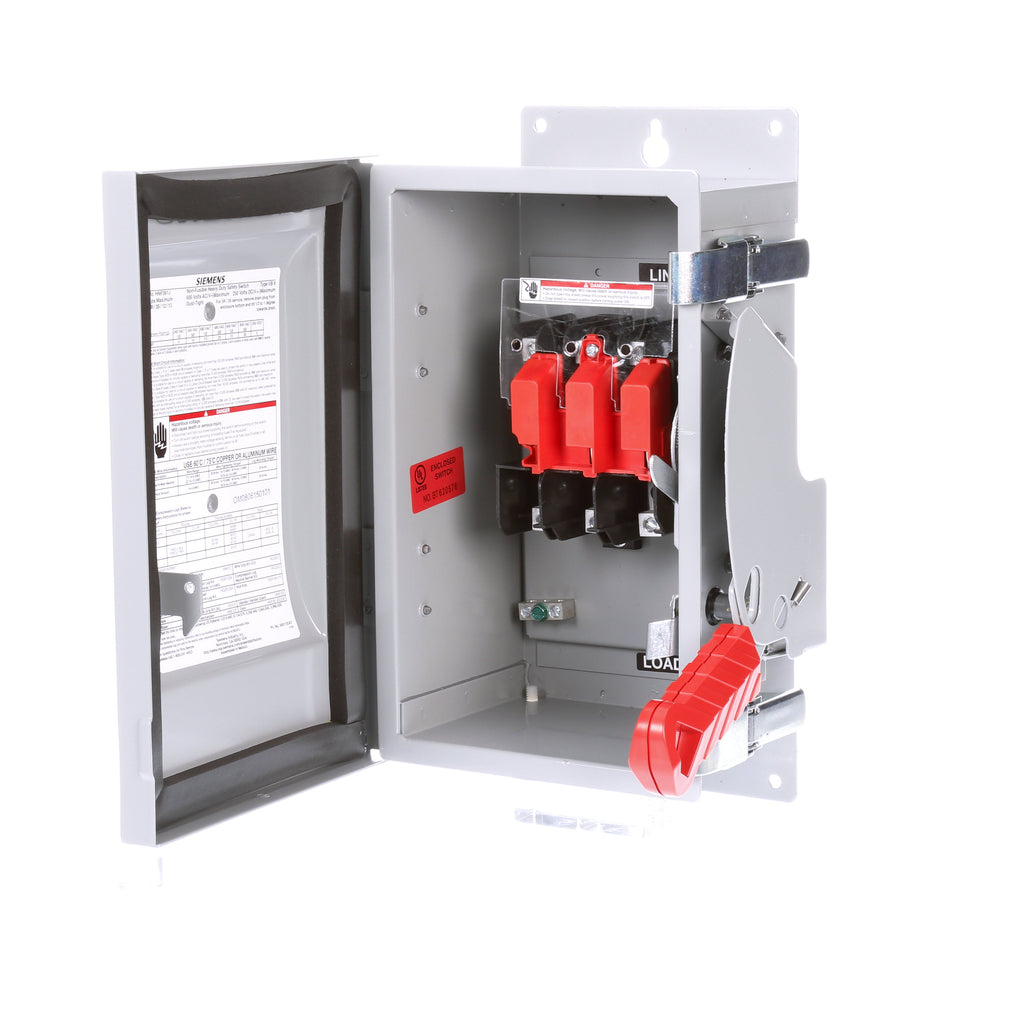

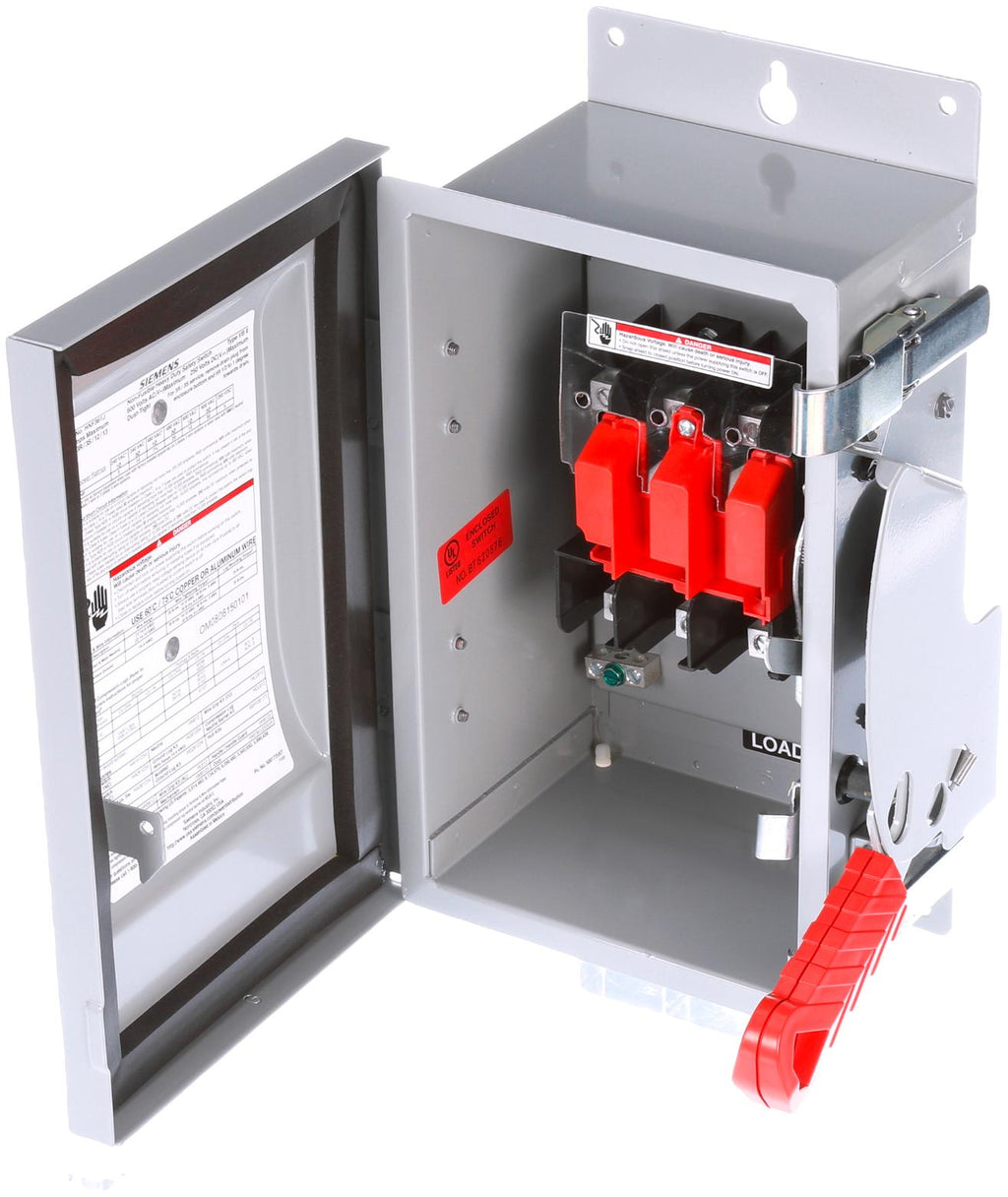

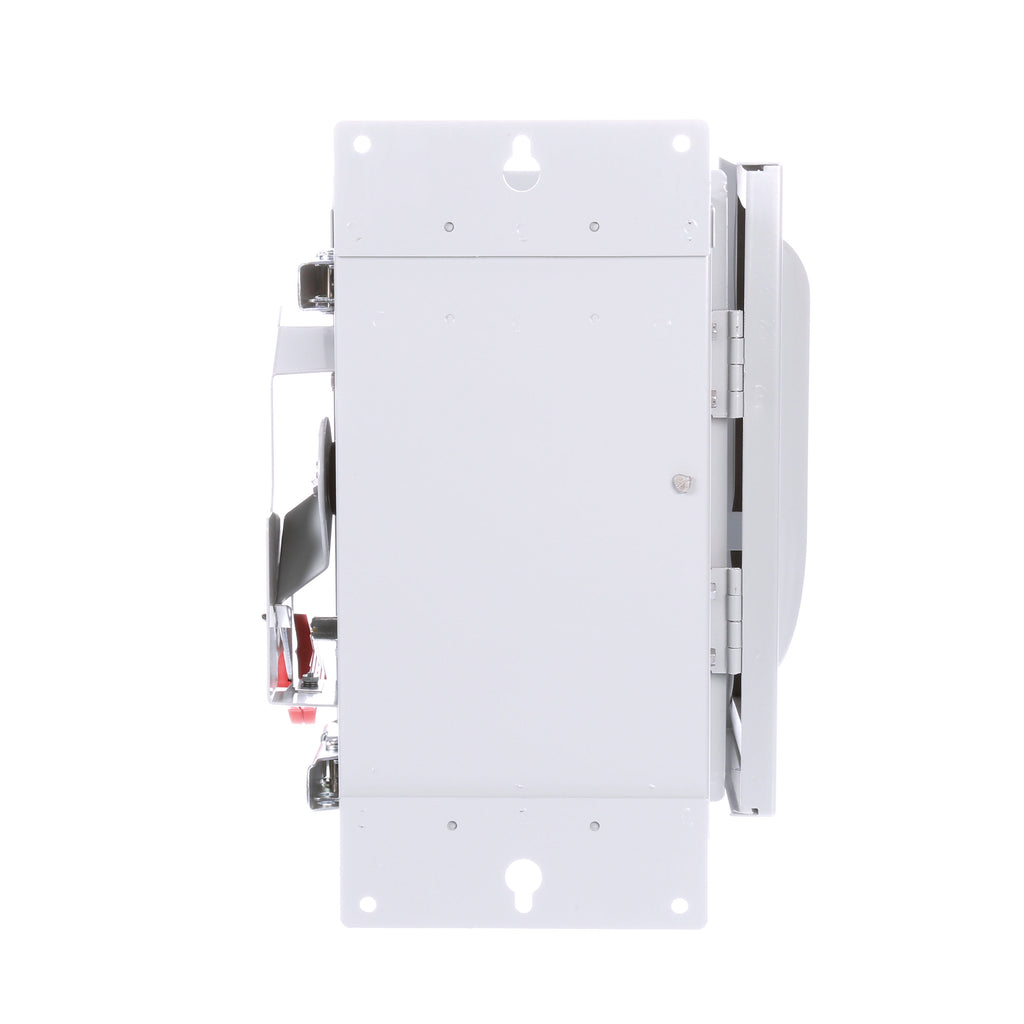

HNF361J - Siemens Type VBII heavy duty non-fusible safety switch, 3-pole, rated for 600 VAC, 30 A.This Siemens HNF361J is a Type VBII enclosed heavy duty low voltage non-fusible single throw safety switch designed for industrial applications. It features quick-make quick-break operation, visible blade double break switching, arc chutes for heat dissipation, and a highly visible red handle grip. The switch has NEMA 12 enclosure, surface mounting, and mechanical lugs for reliable performance.

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Number of Wires: 3
• Phase: 3
• Horsepower Rating: 30 hp at 600V
• Frequency: 60 Hz
• Enclosure Type: NEMA 12
• Mounting Type: Surface
• Short Circuit Current Rating: 200 kA
• Terminal Type: Mechanical Lugs
• Certifications: UL98

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HNF361J
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Non-Fusible Disconnect Switch
• Family : VBII Series
• Type : HNF
• Voltage : 600 AC AC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13äóñ158 ŒÁF (-25äóñ70 ŒÁC)
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 12
• Compatible Frames : PGP

Product Data

• UPC : 783643151895
• GTIN : 0783643151895
• Country of Origin : Mexico
• Dimensions : 16.929 x 11.417 x 7.874 inch
• Weight : 13.977
• Temp Rating : -13äóñ158 ŒÁF (-25äóñ70 ŒÁC)
• Certification : UL listed
