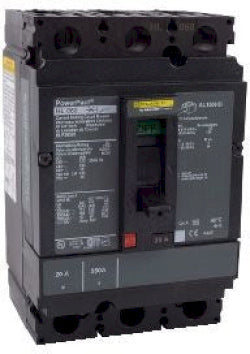

HLP36150 - Square D 150A 600V 3-Pole Molded Case Circuit Breaker H Frame

HLP36150

HLP36150 is a 150 amp, 600 volt, 3-pole molded case circuit breaker from Square D's PowerPact H Frame series designed for reliable circuit protection.This thermal magnetic type breaker features a unit mount design with an interrupt rating of 100kA at 480V AC. It is UL 489 listed and suitable for use in industrial and commercial power distribution applications. The breaker supports up to 600 VAC or 500 VDC and provides robust protection with a thermal magnetic trip unit.

Key Specifications
• Amperage: 150A
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3
• Interrupt Rating: 100kA at 480V
• Frame/Series: PowerPact H Frame
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic
• Certifications: UL 489 Listed
• Type: Molded Case Circuit Breaker
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HLP36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLP
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901835714
• GTIN : 00785901835714
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
