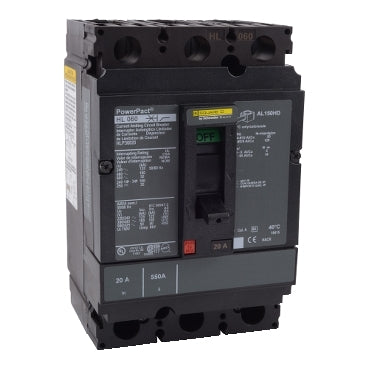

HLP36030 - Square D 30 Amp 600V 3-Pole H-Frame Molded Case Circuit Breaker Thermal Magnetic

HLP36030

HLP36030 is a Square D 3-pole molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.

This circuit breaker features a 30 ampere rating, 600 volt capacity, and H-frame Powerpact design. It utilizes a thermal-magnetic trip unit with long-time and instantaneous trip functions for precise overload and short circuit protection. The breaker is unit mount with lug connections on both line and load sides, suitable for feed-thru and reverse fed applications. It has a breaking capacity code D with an interrupt rating of up to 18kA at 480V, and is UL listed for safety compliance.

• Amperage: 30 A
• Voltage: 600 V AC
• Poles: 3
• Frame Type: H-Frame Powerpact
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Mounting Type: Unit Mount Lug
• Interrupt Rating: 18kA @ 480V
• Connection: Line and Load Side Lugs
• UL Listed
• Breaking Capacity Code: D
• Control Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLP36030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLP
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.9
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
