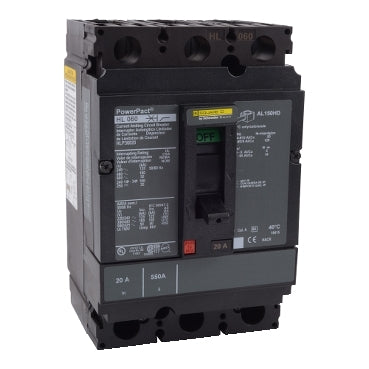

HLP36025 - Square D 25 Amp 3 Pole 600V Molded Case Circuit Breaker H Frame L Interrupt Rating

HLP36025

HLP36025 is a Square D molded case circuit breaker designed for reliable protection in electrical distribution systems.This 25 Amp, 3 pole breaker features a 600 Volt rating and belongs to the PowerPacT H Frame series with an L interrupt rating.The HLP36025 circuit breaker offers thermal magnetic trip protection and is UL 489 listed, suitable for unit mount installation. It supports up to 600 VAC or 500 VDC operation with a high interrupting capacity of 100kA at 480V, ensuring robust short circuit protection. The breaker is compatible with various terminal options and mounting configurations, providing versatility for industrial and commercial applications.

• Amperage: 25 Amp
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3 Pole
• Frame Type: PowerPacT H Frame
• Interrupt Rating: L (100kA at 480V)
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Certifications: UL 489 Listed, CSA, NEMA, IEC, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLP36025
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLP
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 060648705500
• GTIN : 03606487055006
• Dimensions : Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 4
• Wire Size : AWG 14...AWG 3/0 aluminum/copper terminal
