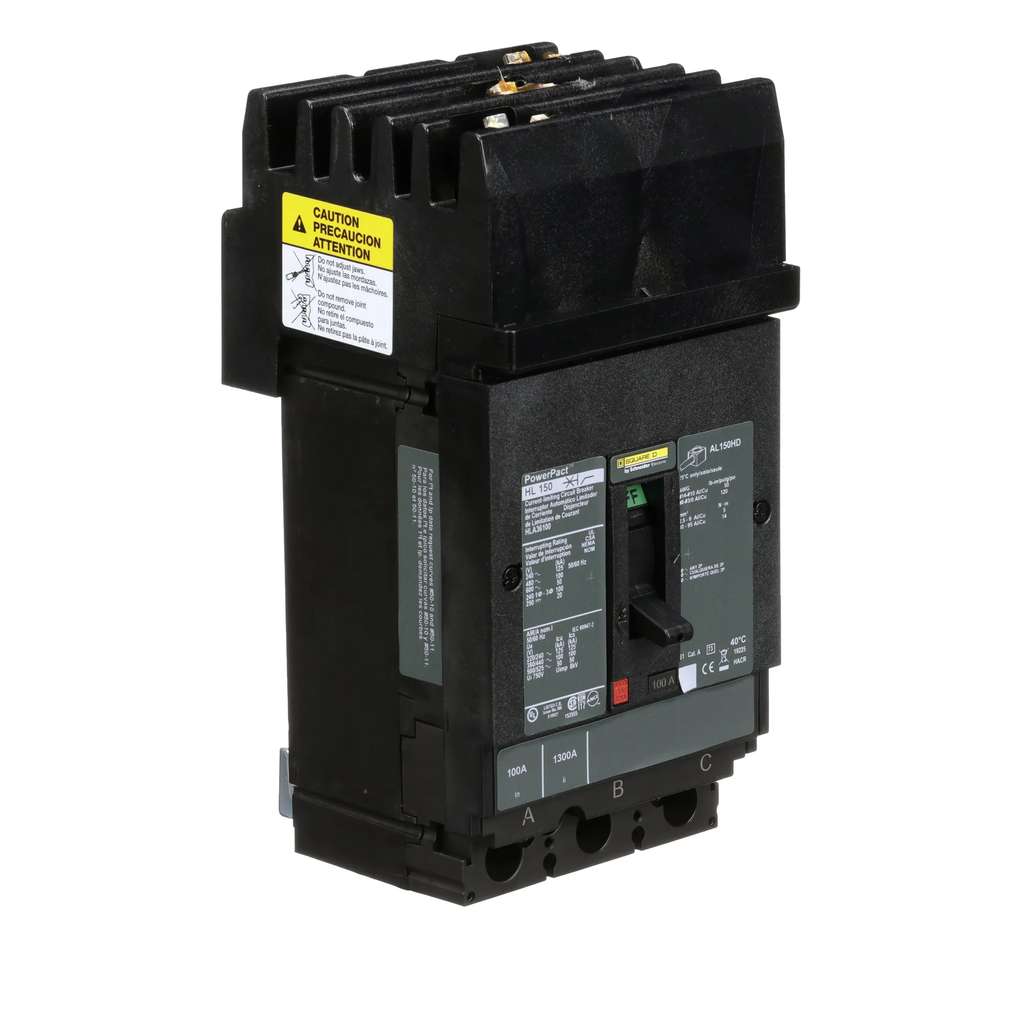

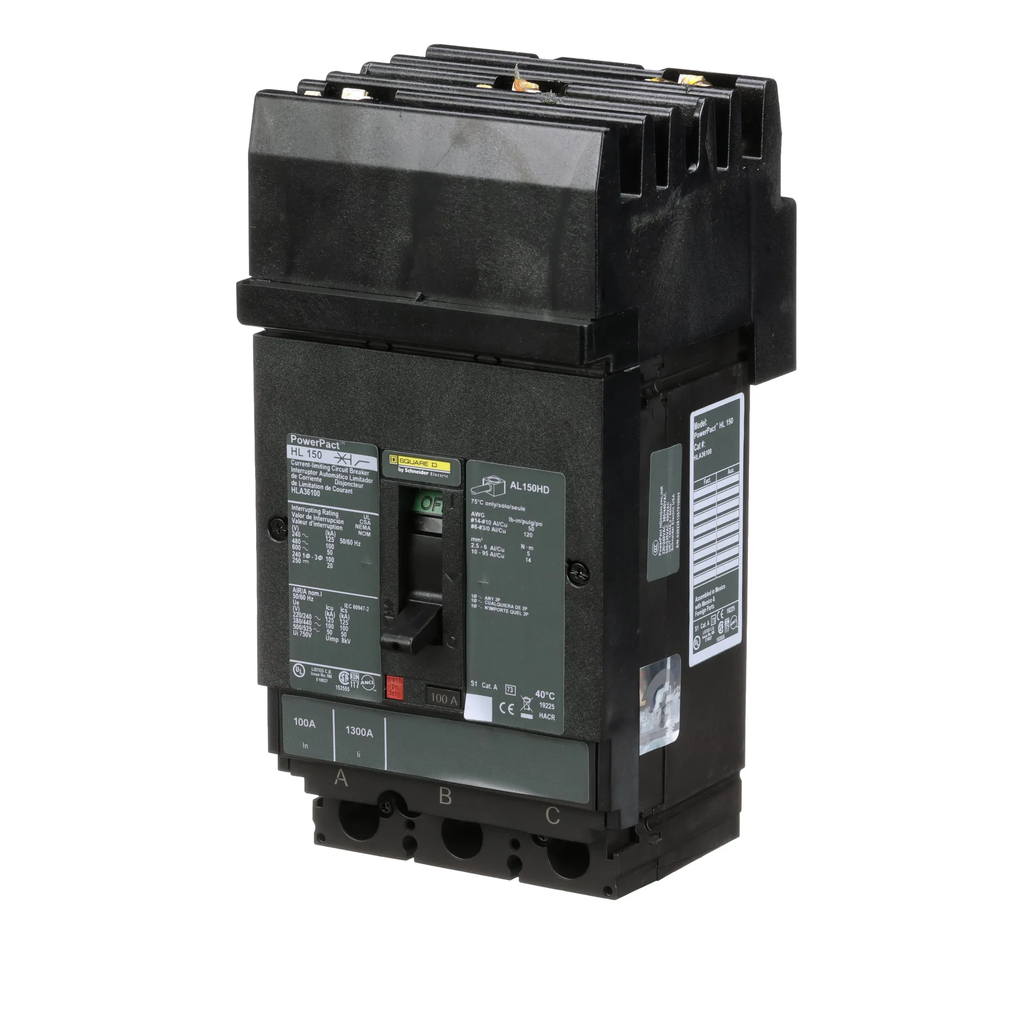

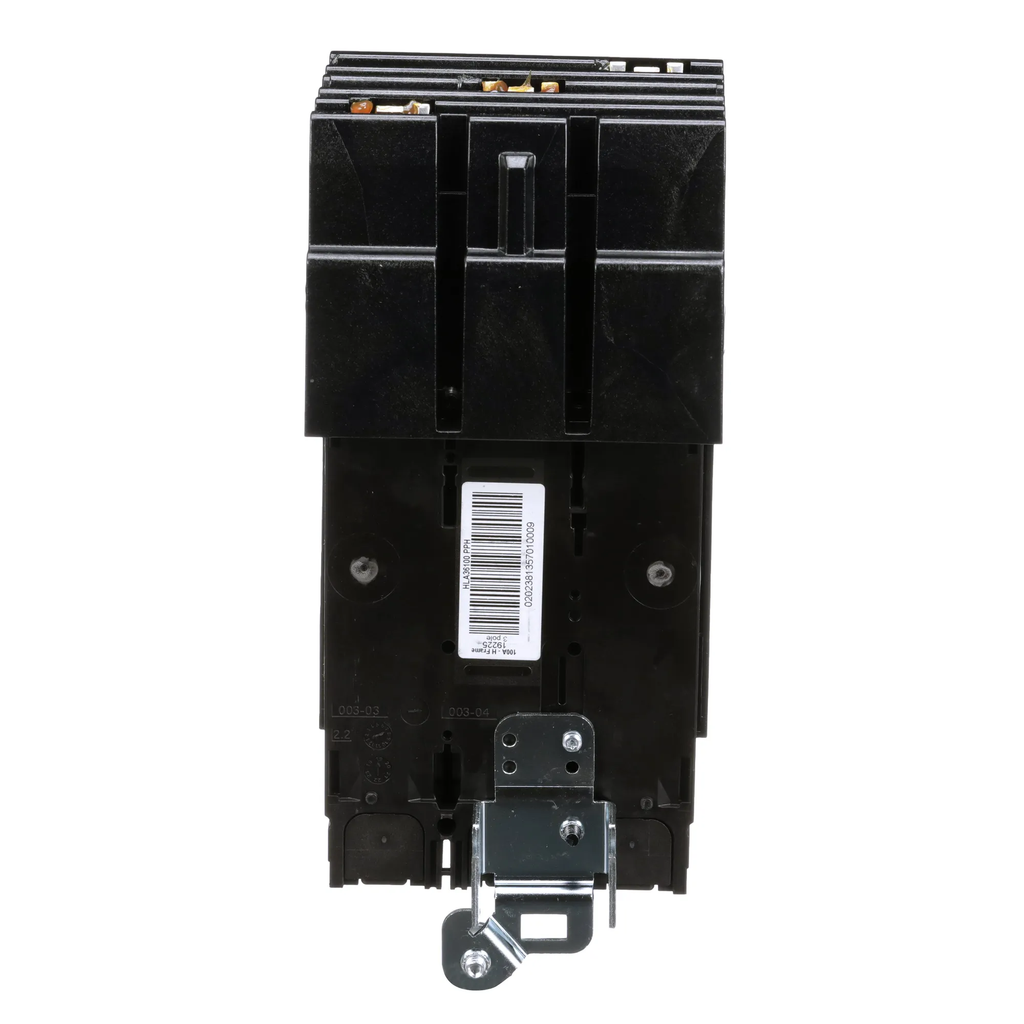

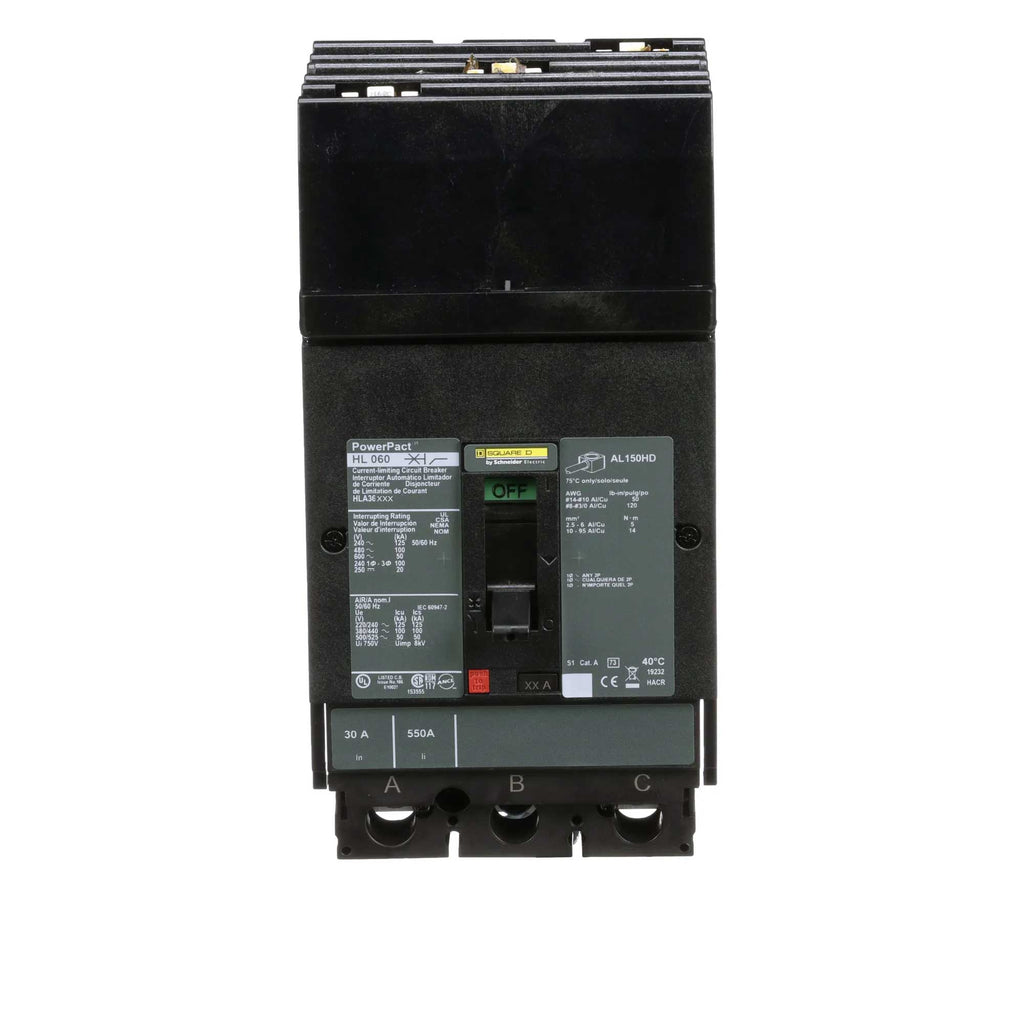

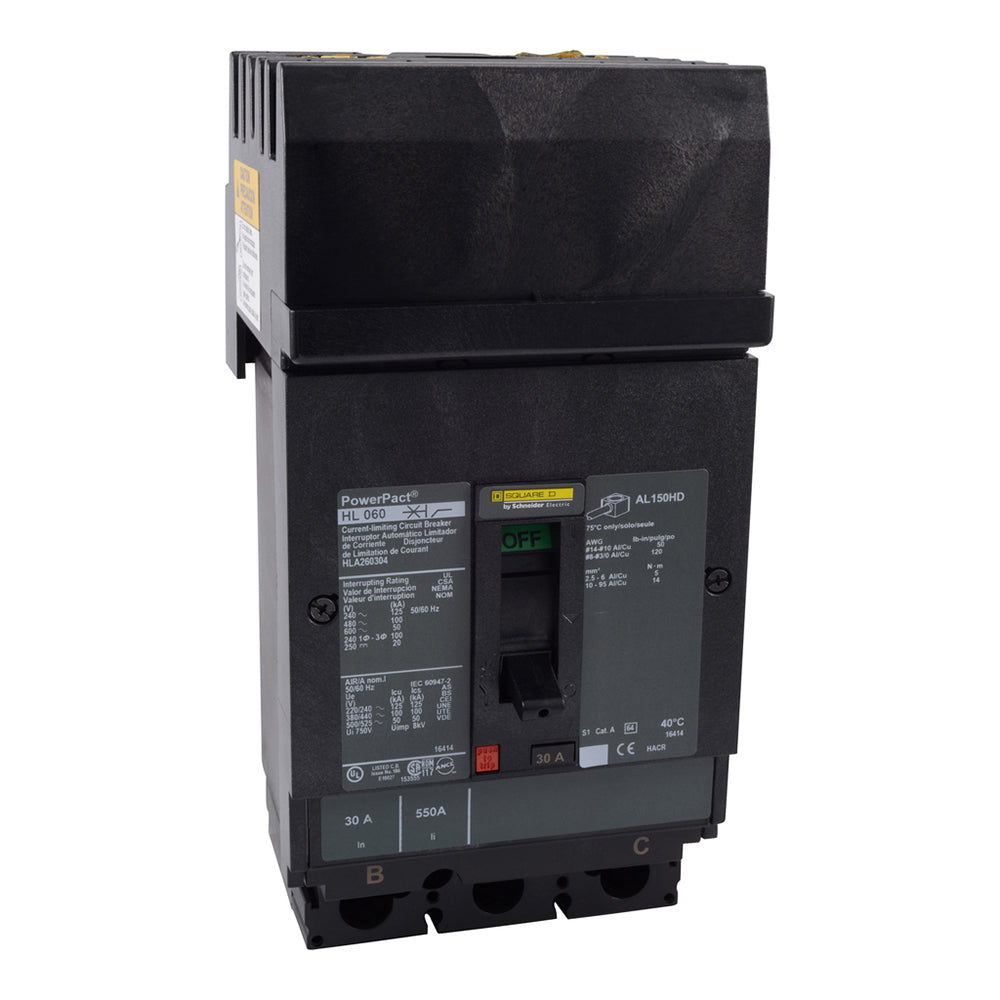

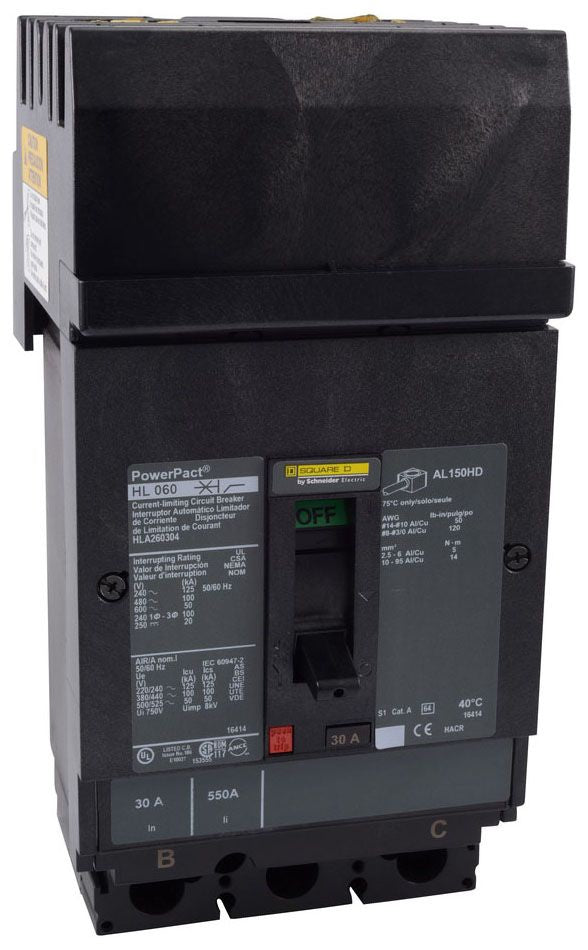

HLA36080 - Square D 80 Amp 600 Volt 3 Pole Thermal Magnetic Circuit Breaker PowerPact HLA Frame

HLA36080

HLA36080 is a Square D 3 pole, 80 amp, 600 volt thermal magnetic circuit breaker designed for PowerPact HLA frame applications.This molded case circuit breaker features a thermal magnetic trip unit with current limiting capability, suitable for use in I-Line panelboards and switchboards. It is UL, CSA, and CE listed, rated for 50kA interrupt capacity at 600VAC, and supports ABC phase connections. The breaker is designed for plug-in mounting and offers reliable protection in industrial and commercial electrical systems.

• Amperage: 80 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: PowerPact HLA
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 50kA at 600 VAC
• Mounting Type: Plug-in I-Line
• Phase: ABC
• Certifications: UL Listed, CSA, CE
• Current Limiting Type
• Suitable for Panelboard and Switchboard Use

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA36080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901700609
• GTIN : 00785901700609
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
