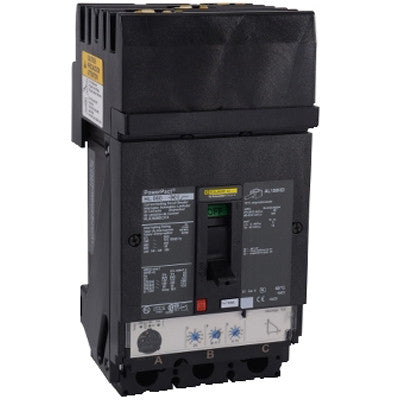

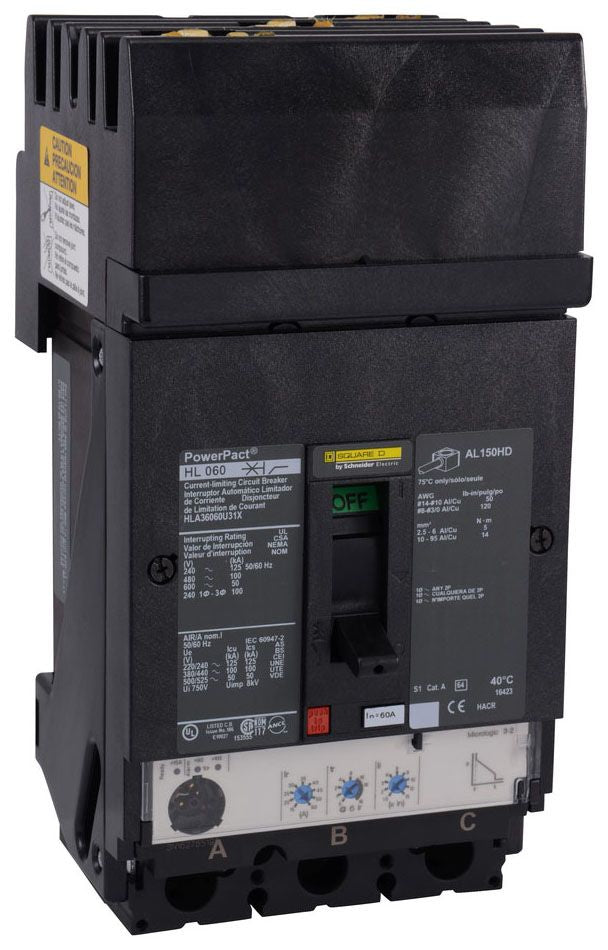

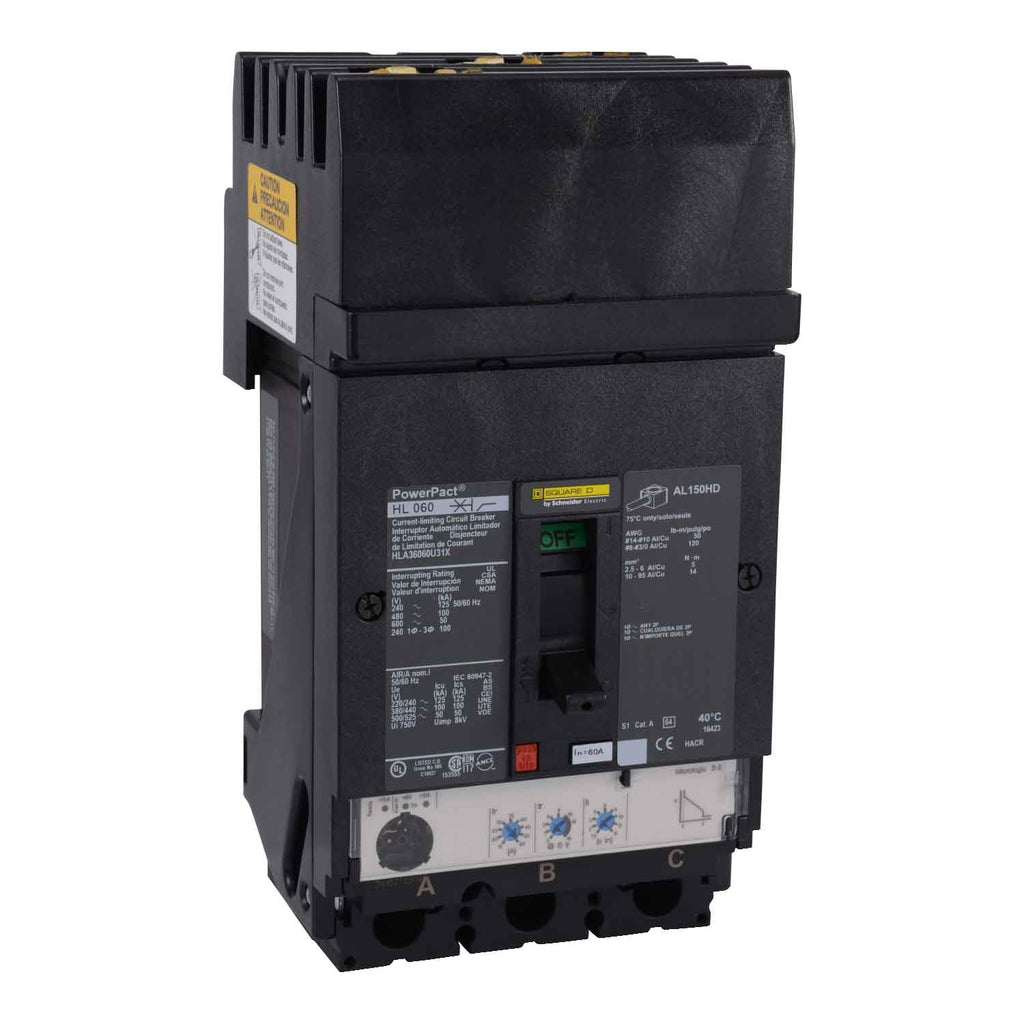

HLA36060U31X - Schneider Electric 60A 600V 3 Pole PowerPact H I-Line Circuit Breaker Micrologic 3.2

HLA36060U31X

HLA36060U31X is a Schneider Electric PowerPact H molded case circuit breaker rated for 60 amps, 600 volts, and 3 poles with I-Line mounting and Micrologic 3.2 electronic trip unit.This circuit breaker features a 50kA interrupt rating at 600VAC and 100kA at 480VAC, designed for reliable protection in industrial and commercial applications. It supports 80% continuous current rating, has a 3-pole design with ABC phase connection, and is UL 489 listed. The breaker uses an I-Line plug-in style for easy installation and includes electronic trip functions with long-time and instantaneous protection.

Key Specifications
• Amperage: 60 Amp
• Voltage: 600 VAC
• Poles: 3 Pole
• Interrupt Rating: 50 kA @ 600V, 100 kA @ 480V
• Frame: PowerPact H
• Mounting Type: I-Line Plug-In
• Trip Unit: Micrologic 3.2 Electronic
• Continuous Current Rating: 80%
• Phase: ABC
• UL Listed: UL 489
• Wire Size: 14 to 3/0 AWG Al/Cu
• Operating Temperature: 104°F (40°C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA36060U31X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 606481029829
• GTIN : 03606481029829
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
