HJA36100SA - Square D 100 Amp 600V 3 Pole PowerPact H I-Line Molded Case Circuit Breaker

Save $1,942.15
SKU: HJA36100SA-New
Condition: New
Price:
$999.85 $2,942.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

HJA36100SA - Square D I-Line Style Plug-In 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply

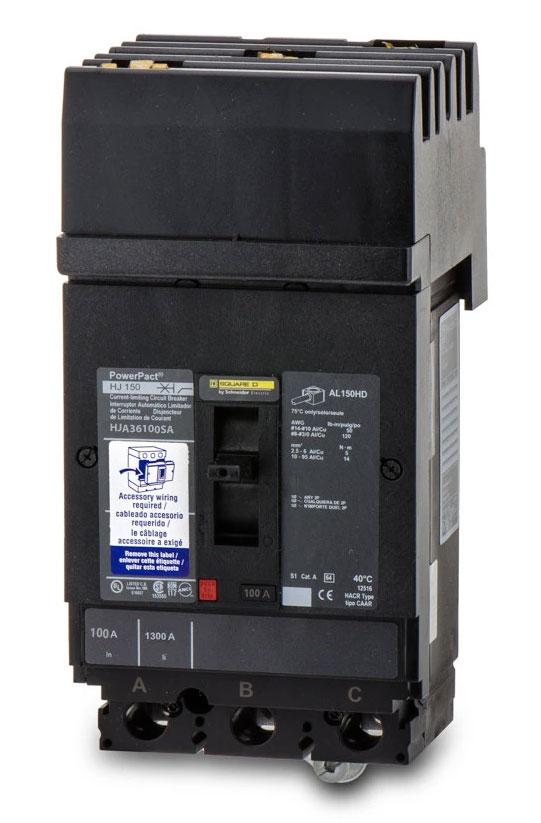

HJA36100SA - Square D 100 Amp 600V 3 Pole PowerPact H I-Line Molded Case Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HJA36100SA - Square D I-Line Style Plug-In 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply
HJA36100SA - Square D 100 Amp 600V 3 Pole PowerPact H I-Line Molded Case Circuit Breaker - Essential Electric Supply

Description

HJA36100SA


HJA36100SA is a Square D PowerPact H series 3 pole molded case circuit breaker rated for 100 amps and 600/690 VAC voltage. It features thermal magnetic protection with I-Line style plug-in mounting.This circuit breaker provides reliable overload and short circuit protection with a breaking capacity of 100kA at 240 VAC and 65kA at 480 VAC. It includes long-time and instantaneous trip functions, a factory-installed 120 VAC shunt trip, and is suitable for use in I-Line panelboards and switchboards. The breaker is UL, CSA, CE, NOM, and IEC certified and supports wire gauges from AWG 14 to AWG 3/0 for aluminum or copper conductors.
    Key Specifications
    • Amperage: 100 Amp
    • Voltage Rating: 600/690 VAC
    • Poles: 3
    • Mounting Type: I-Line Plug-In
    • Interrupting Rating: 100kA at 240 VAC, 65kA at 480 VAC, 25kA at 600 VAC
    • Series/Frame: PowerPact H, Frame HJA
    • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
    • Certifications: UL, CSA, CE, NOM, IEC
    • Connection Type: I-Line Style Plug-In with Load Side Lugs
    • Wire Gauge Range: AWG 14 to AWG 3/0 Aluminum/Copper
    • Operating Temperature: -25 to 70 °C
    • Actuator Type: Toggle
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120Vac shunt trip


Specifications

  • Part Number: HJA36100SA
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HJA
  • Voltage : 600
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous Trip
  • Frame Size : H Frame
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901428473
  • GTIN : 00785901428473
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 6.001
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal

Accesories

Part Manufacture Sub Category
S29452
S29450
AL150HD
S29383
S29392
S29404
