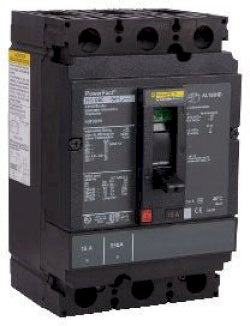

HGP36060 - Square D 60 Amp 600 Volt 3 Pole PowerPact H Frame Molded Case Circuit Breaker

HGP36060

HGP36060 is a Square D molded case circuit breaker designed for reliable power distribution protection.This 3 pole breaker features a 60 amp rating and supports up to 600 volts AC. It belongs to the PowerPact H frame series with a thermal magnetic trip unit. The breaker offers high interrupt ratings of 65kA at 240V, 35kA at 480V, and 18kA at 600V, ensuring robust short-circuit protection. It uses line lug mounting and meets industry certifications for safety and performance.

• Amperage: 60 Amp
• Voltage Rating: 600 Volt AC Max
• Poles: 3
• Mounting Type: Line Lugs
• Interrupt Rating: 65kA @ 240V, 35kA @ 480V, 18kA @ 600V
• Series/Frame: PowerPact H Frame (150 Amp frame)
• Trip Unit: Thermal Magnetic
• Type: Molded Case Circuit Breaker
• Dimensions: Approx. 4.12" W x 4.36" D x 6.4" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGP36060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGP
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901680963
• GTIN : 00785901680963
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.134
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
