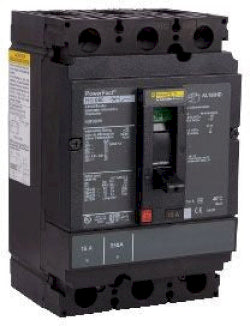

HGP36050 - Square D 50 Amp 600V 3 Pole Molded Case Circuit Breaker PowerPact H Frame

HGP36050

HGP36050 is a 50 amp, 3 pole molded case circuit breaker from Square D designed for up to 600 volts AC applications.This PowerPact H frame breaker features thermal magnetic trip units and load lug terminals, with an interrupt rating of 65kA at 240V AC and 35kA at 480V AC. It supports voltages up to 600 VAC and 250 VDC, suitable for industrial power distribution. The breaker is UL and CSA certified and accommodates wire sizes from 14 to 3/0 AWG aluminum or copper.

Key Specifications
• Amperage: 50 Amp
• Voltage Rating: 600 VAC max, 250 VDC max
• Poles: 3
• Interrupt Rating: 65kA at 240V AC, 35kA at 480V AC, 18kA at 600V AC
• Mounting Type: Bolt-On
• Frame Type: H Frame (PowerPact H)
• Trip Unit: Thermal Magnetic
• Terminal Type: Load Lug
• Wire Size: 14 to 3/0 AWG Aluminum/Copper
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGP36050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGP
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901551065
• GTIN : 00785901551065
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.9
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
