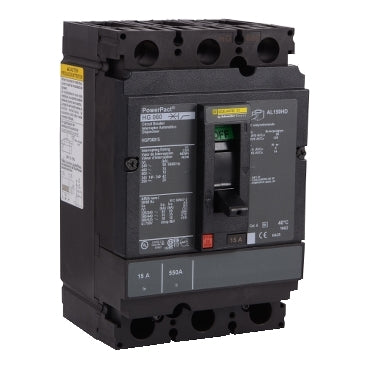

HGP36045 - Square D 45 Amp 600 Volt 3 Pole Bolt-On Molded Case Circuit Breaker

HGP36045

HGP36045 is a Square D 3 pole, 45 amp, 600 volt bolt-on molded case circuit breaker designed for reliable circuit protection.This circuit breaker features a thermal magnetic trip unit and a 35kA interrupting rating at 480V, making it suitable for a variety of industrial and commercial applications. It is UL 489 listed and designed for bolt-on mounting, providing easy installation and maintenance.

• Amperage: 45 Amp
• Voltage Rating: 600 Volt
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Interrupting Rating: 35kA at 480V
• Trip Unit: Thermal Magnetic
• Frame/Series: H Frame
• UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGP36045
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGP
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.9
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
