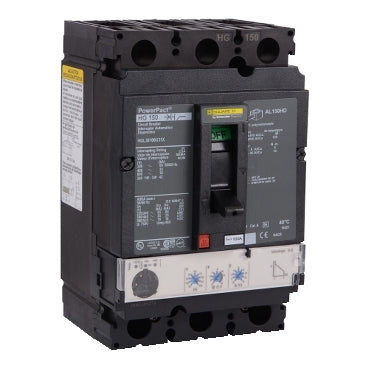

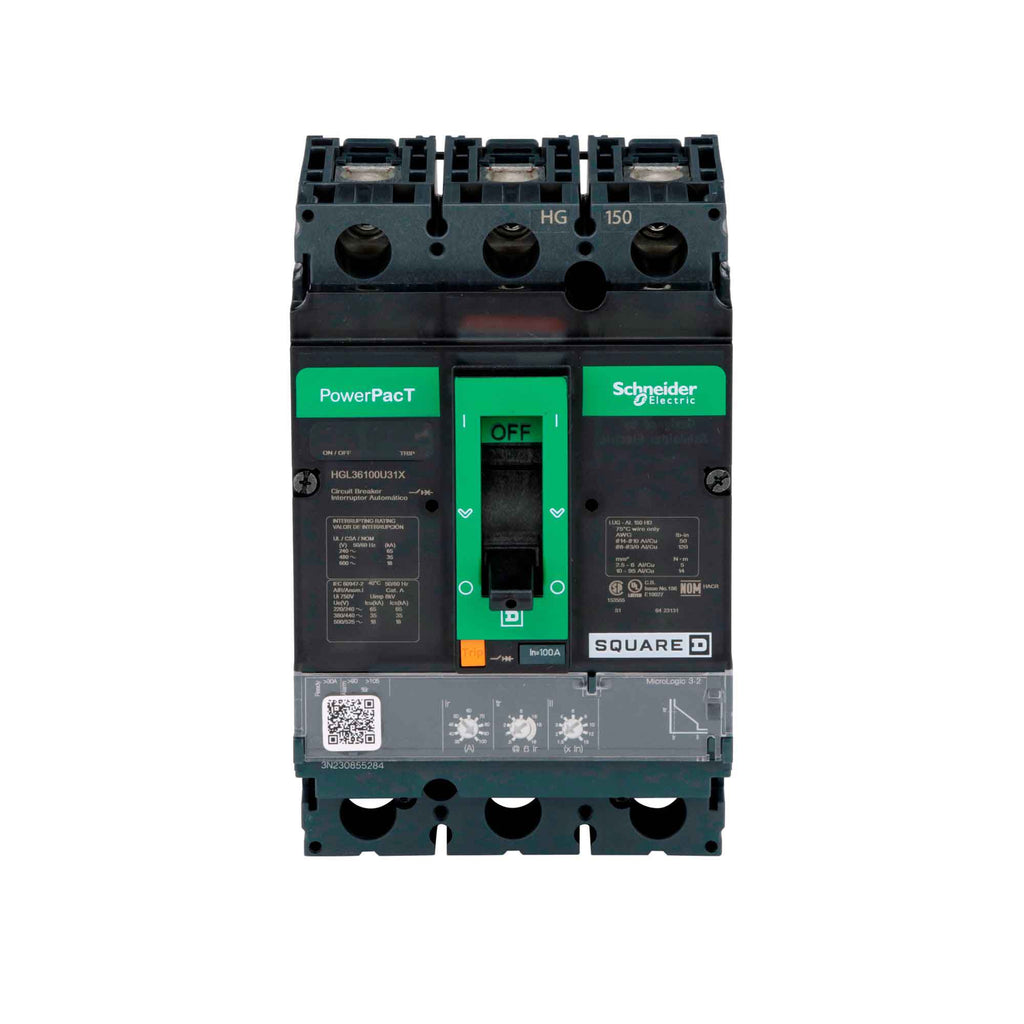

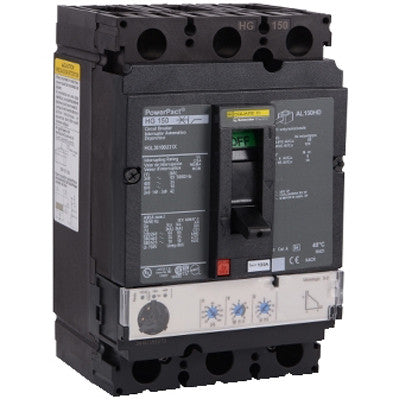

HGL36100U31X - Square D PowerPacT H Molded Case Circuit Breaker 100A 600V 3 Pole Micrologic 3.2

HGL36100U31X

HGL36100U31X is a Square D PowerPacT H molded case circuit breaker designed for reliable electrical protection.This 3-pole circuit breaker features a 100 ampere rating and a maximum voltage of 600 volts AC. It includes a Micrologic 3.2 electronic trip unit with current limiting (LI) capability, providing precise and efficient trip performance. The breaker has a G interrupt rating with an 18kA breaking capacity at 600VAC and is UL, CSA, and CE certified. It is unit mount type with lugs on both line and load sides, suitable for industrial and commercial applications.

Key Specifications
• Amperage: 100A
• Voltage Rating: 600VAC, 250VDC max
• Poles: 3
• Interrupt Rating: 18kA at 600VAC
• Series/Frame: PowerPacT H Frame
• Trip Unit: Micrologic 3.2 Electronic, Current Limiting (LI)
• Mounting Type: Unit Mount
• Certifications: UL, CSA, CE
• Dimensions: 4.09" W x 3.39" D x 6.42" H
• Color: Black
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HGL36100U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 150A/HG
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3/0 AWG
• Breaker Type : Micrologic Standard W LI Functionality
• Protection : Solid State
• Phase Connection : ABC



Product Data

• UPC : 785901229049
• GTIN : 00785901229049
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.28
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
