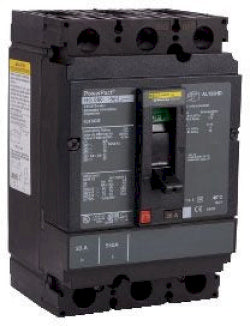

HGF36125 - Square D PowerPact H Frame Molded Case Circuit Breaker 125A 3 Pole 600VAC Thermal Magnetic

HGF36125

HGF36125 is a Square D PowerPact H Frame molded case circuit breaker rated for 125 amps and 600 volts AC with 3 poles and thermal magnetic trip unit.This circuit breaker features a 18kA interrupt rating at 600VAC, unit mount design, and is UL 489 listed with multiple international certifications including CSA, NEMA, IEC, and CE. It offers reliable protection with an 80% continuous current rating and is designed for versatile installation in industrial and commercial power distribution systems.

• Amperage: 125 A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 18 kA
• Frame: PowerPact H
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Certifications: UL 489, CSA, NEMA, IEC, CE
• Dimensions: 6.4 in H x 4.09 in W x 3.4 in D
• Continuous Current Rating: 80%
• Environmental: Packaging made with recycled cardboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HGF36125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGF
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : H
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901612261
• GTIN : 00785901612261
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.178
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
