Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HGF36030

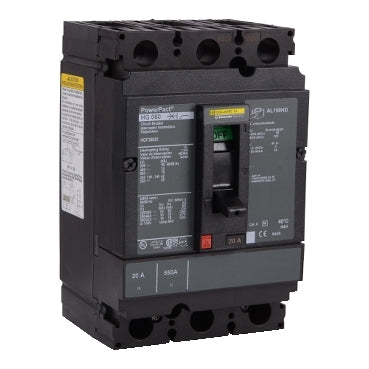

HGF36030 is a 30 amp, 3-pole, 600 volt molded case circuit breaker manufactured by Square D as part of the PowerPact H series. This thermal-magnetic circuit breaker is designed for panel mount applications and provides reliable overcurrent protection in industrial and commercial electrical systems.Key Specifications
- Amperage: 30A
- Voltage: 600 VAC
- Poles: 3
- Circuit Breaker Type: Molded Case
- Tripping Mechanism: Thermal-Magnetic
- Interrupt Rating: 35 kA at 480V
- Series: PowerPact H
- Mounting: Panel Mount
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: HGF36030
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HGF
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : H Frame
- Temp Rating : 28-158 °F (-2-70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 606486282970
- GTIN : 03606486282977
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 3.999
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
