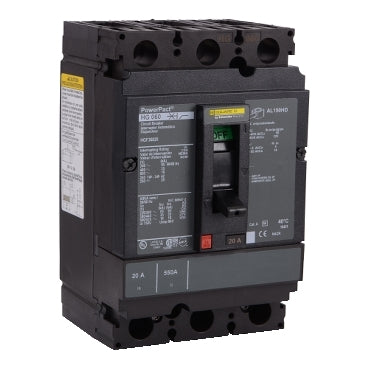

HGF36110 - Square D PowerPact H Frame 110 Amp 3 Pole 600 VAC Thermal Magnetic Circuit Breaker

HGF36110

HGF36110 is a Square D PowerPact H Frame molded case circuit breaker rated for 110 amps and 600 VAC with three poles.This circuit breaker features a thermal magnetic trip unit and is designed for unit mount installation. It has an interrupt rating of 18 kA at 600 VAC and is UL 489 listed. The breaker supports busbar terminal connections and is part of the PowerPact H series, known for reliable protection in industrial and commercial applications.

Key Specifications
• Amperage: 110 Amp
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Frame Type: PowerPact H
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 18 kA at 600 VAC
• Mounting Type: Unit Mount
• Terminal Connection: Busbar
• Certification: UL 489 Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: HGF36110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGF
• Voltage : 600
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901697527
• GTIN : 00785901697527
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
