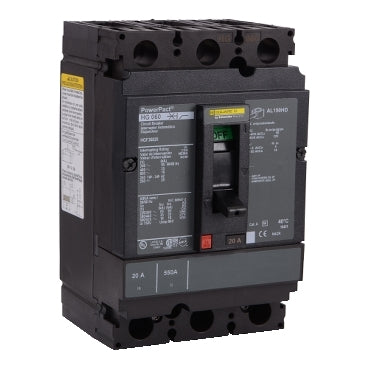

HGF36025 - Square D PowerPacT H 25A 3 Pole 600VAC 18kA Bolt-On Circuit Breaker

HGF36025

HGF36025 is a 25A, 3-pole, 600VAC, 18kA bolt-on circuit breaker from the Square D PowerPacT H series, designed for reliable protection in commercial and industrial power distribution systems.This thermal magnetic circuit breaker features a robust design for use in 600VAC applications, with a continuous current rating of 80%. It is suitable for bolt-on mounting and provides dependable protection for three-phase circuits. The device is built to meet demanding electrical standards and is ideal for distribution panel installations.

• Part Number: HGF36025
• Manufacturer: Square D
• Series: PowerPacT H
• Amperage: 25A
• Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 18kA
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Certifications: UL 489 Listed, CSA, NOM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HGF36025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGF
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
