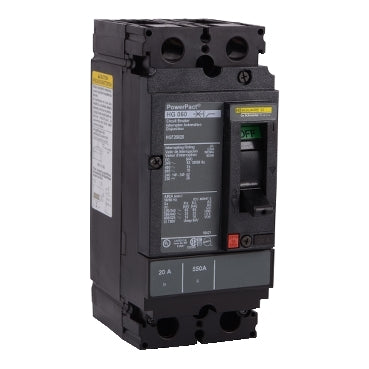

HGF26150 - Square D 150 Amp 2 Pole 600 Volt Bolt-On Circuit Breaker 35kA@480V Interrupt Rating

HGF26150

HGF26150 is a Square D 2 pole, 150 amp bolt-on circuit breaker rated for 600 volts with a 35kA interrupt rating at 480 volts.

This molded case circuit breaker features thermal-magnetic trip unit technology and is designed for reliable protection in power distribution applications. It is UL 489 listed and suitable for use in industrial and commercial electrical systems. The breaker has a frame type H and is unit mountable, providing robust performance with a high interrupting capacity to safely clear faults.

• Manufacturer: Square D
• Part Number: HGF26150
• Amperage: 150 Amp
• Voltage Rating: 600 Volt AC
• Poles: 2 Pole
• Mounting Type: Bolt-On (Unit Mount)
• Interrupt Rating: 35kA at 480 VAC
• Frame Type: H Frame
• Trip Unit: Thermal-Magnetic
• UL Listed: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HGF26150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGF
• Voltage : 600
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
