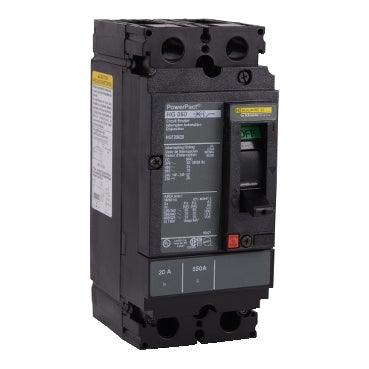

HGF26060 - Square D PowerPact H 60A 2-Pole 600VAC Molded Case Circuit Breaker

HGF26060

HGF26060 is a Square D PowerPact H molded case circuit breaker designed for industrial and commercial power distribution applications. This thermal magnetic breaker provides reliable overcurrent protection with a 60-ampere continuous current rating at 600VAC and an 18kA interrupting capacity at 480VAC. The two-pole configuration supports single-phase or three-phase systems with standard 80% continuous rating and busbar mounting capability. Key Specifications

• Part Number: HGF26060
• Manufacturer: Square D (Schneider Electric)
• Series: PowerPact H
• Amperage: 60A
• Voltage Rating: 600VAC
• Poles: 2
• Interrupting Capacity: 18kA at 480VAC
• Trip Type: Thermal Magnetic
• Continuous Rating: 80%
• Mounting: Busbar
• Breaker Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HGF26060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGF
• Voltage : 600
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• GTIN : 03606482046207
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
