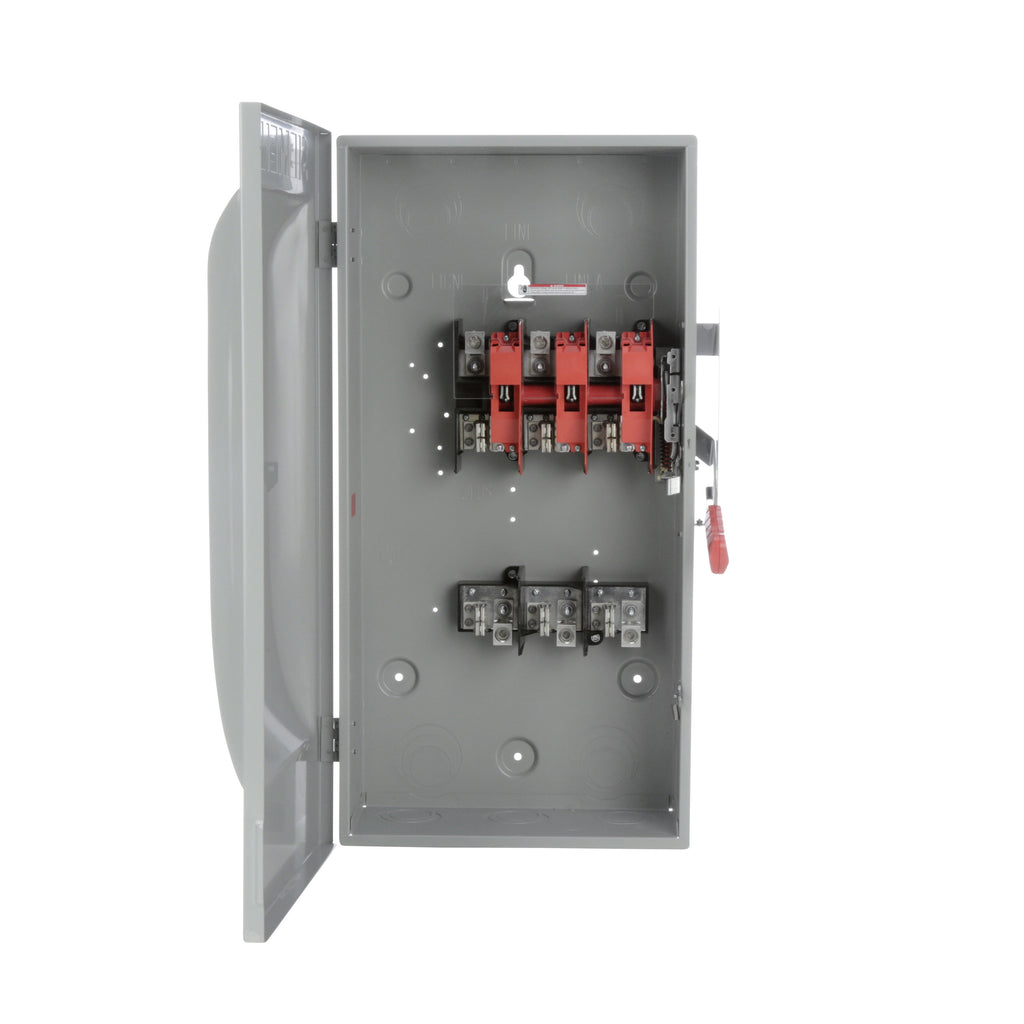

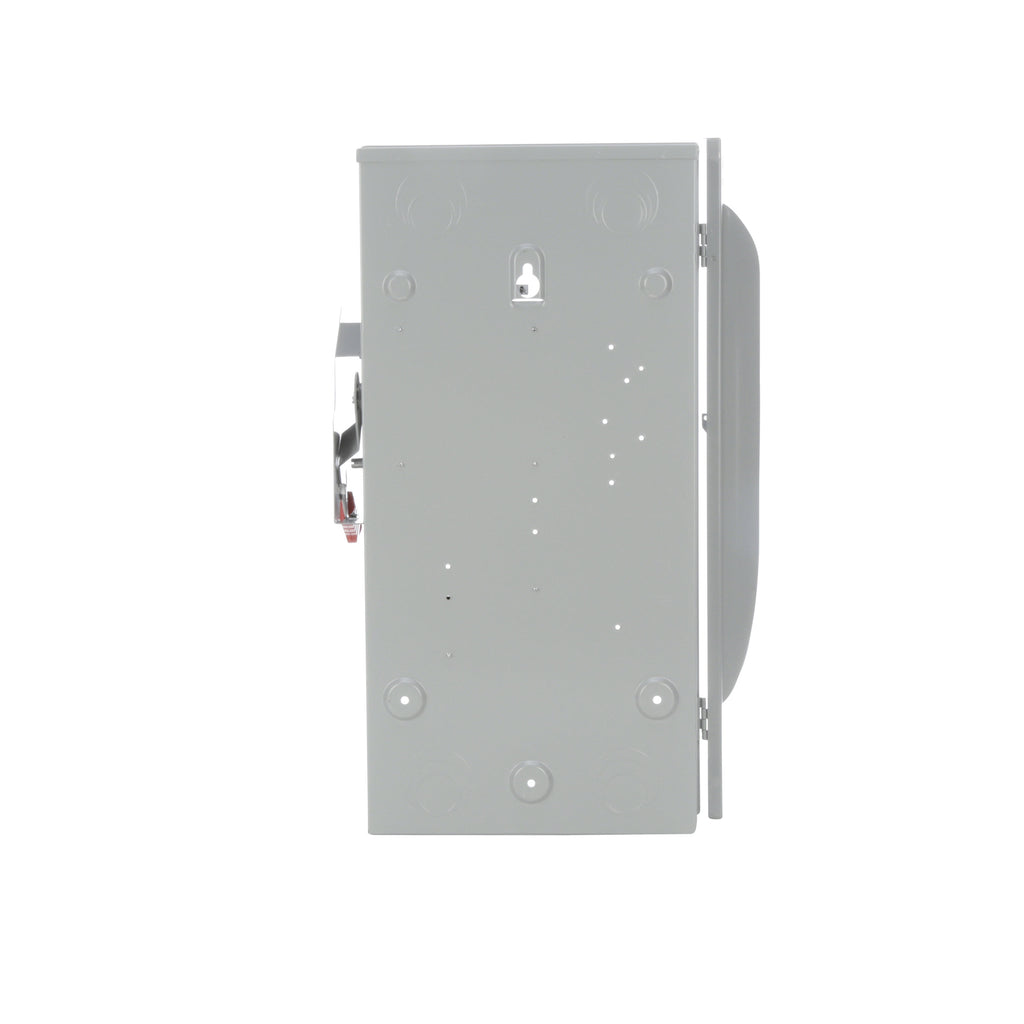

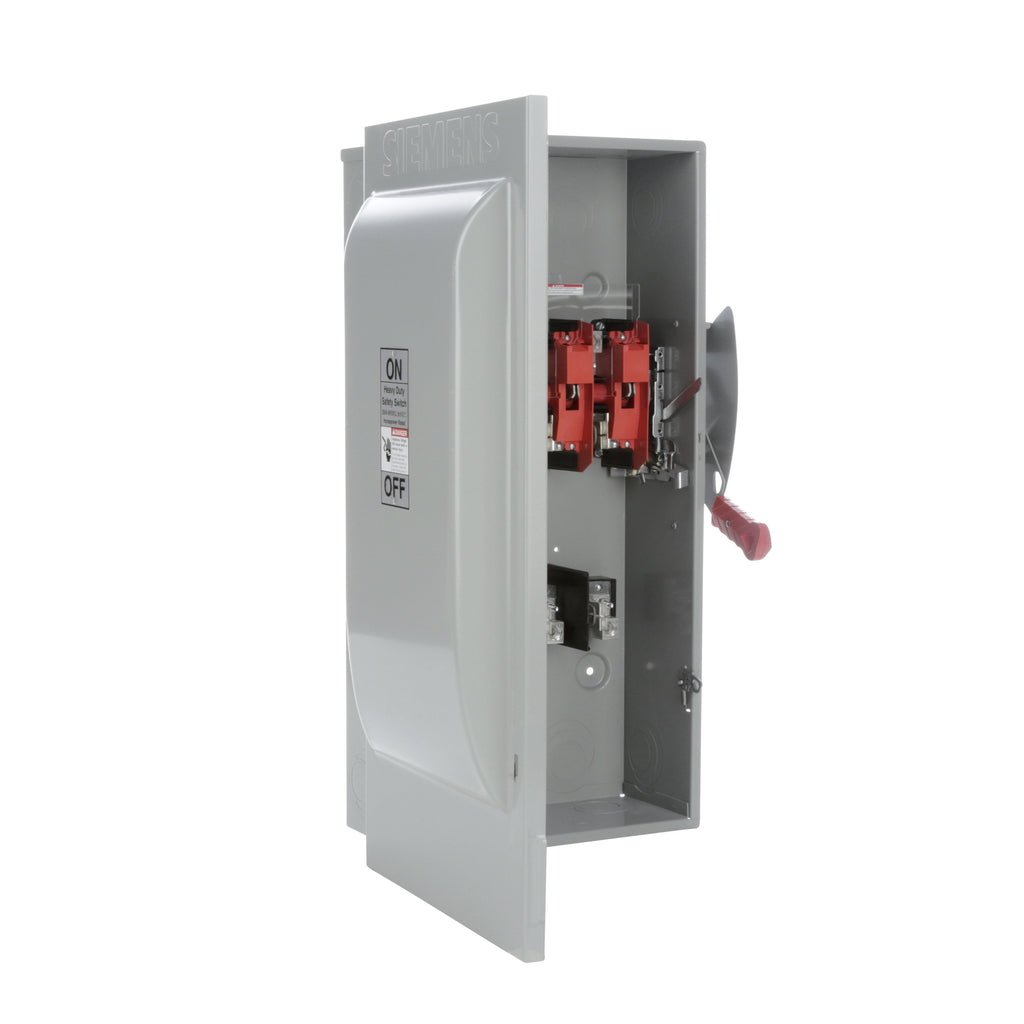

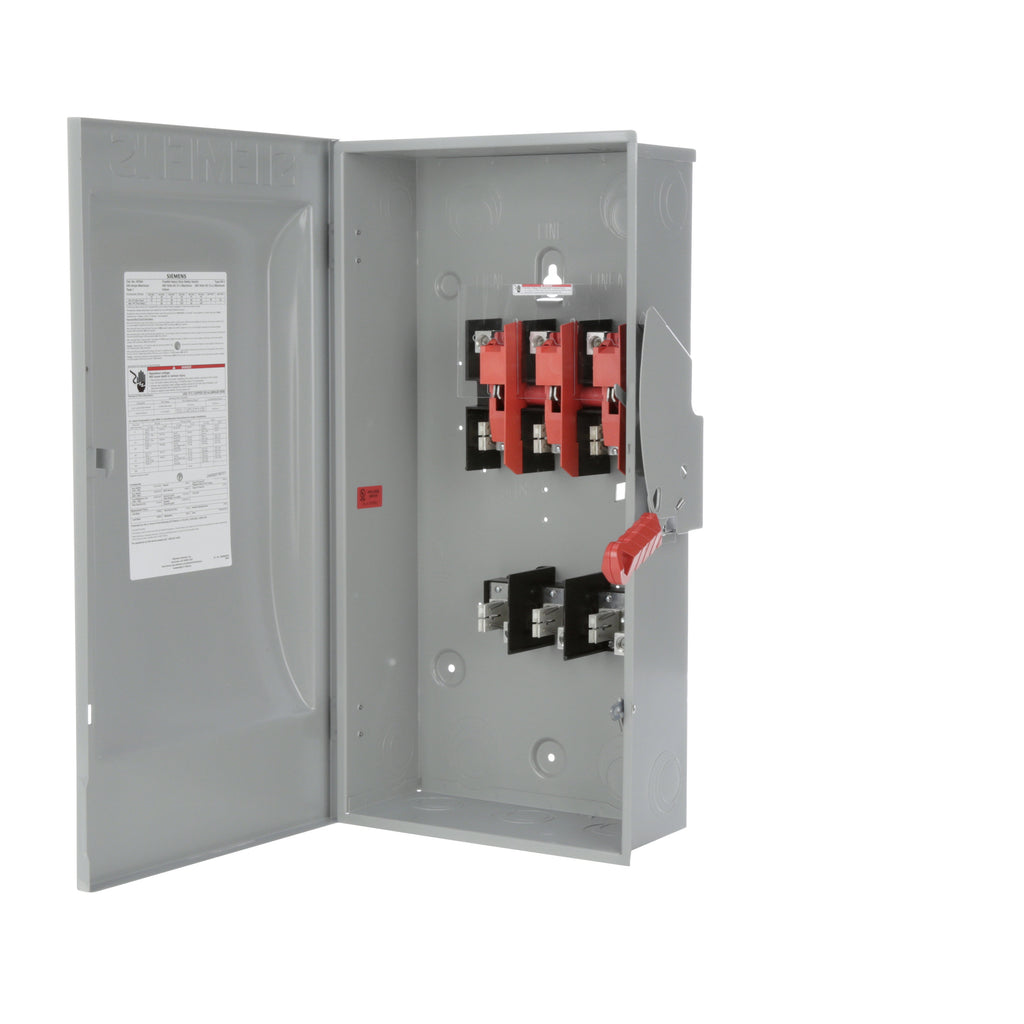

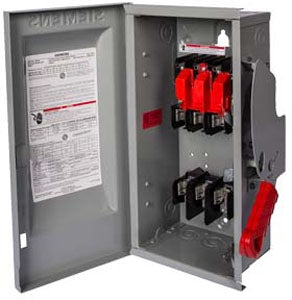

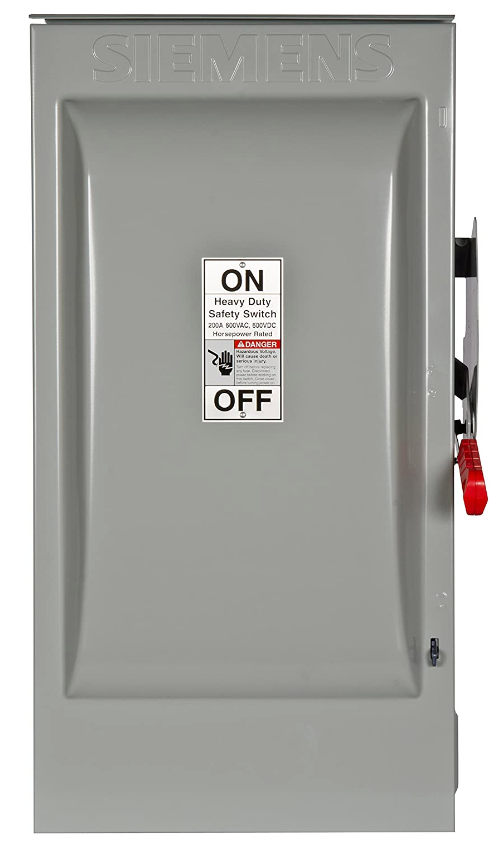

HF364 - Siemens 200A 600V 3-Pole Enclosed Heavy Duty Fusible Safety Switch

HF364

HF364 - Siemens Heavy Duty Fusible Safety Switch, 3-pole, 200 Amp rated for 480/600 VAC and 250/600 VDC, NEMA 1 enclosure.This Siemens HF364 is a Type VBII enclosed fusible heavy duty low voltage single throw safety switch designed for reliable circuit protection in industrial applications. It features 3 poles, 3 wires, and accommodates Class H/J/R/T time delay fuses in a grounded wye system, with UL 98 approval and NEMA KS-1 compliance.

• Amperage: 200 Amp
• Voltage Rating: 480/600 VAC, 250/600 VDC
• Poles: 3-Pole
• Wires: 3-Wire
• Enclosure: NEMA 1 (Indoor)
• Fuse Type: Fusible (3 Fuses, Class H/J/R/T Time Delay)
• Contact Configuration: TPST
• Horsepower Rating (3-Phase): 50 HP at 480V, 60 HP at 600V (Standard)
• Certifications: UL 98
• Standards: NEMA KS-1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HF364
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : PGP

Product Data

• UPC : 783643151031
• GTIN : 00783643151031
• Country of Origin : Mexico
• Dimensions : 33.858 x 20.079 x 10.236 inch
• Weight : 40.896 lb
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Certification : UL listed
