Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF321NR

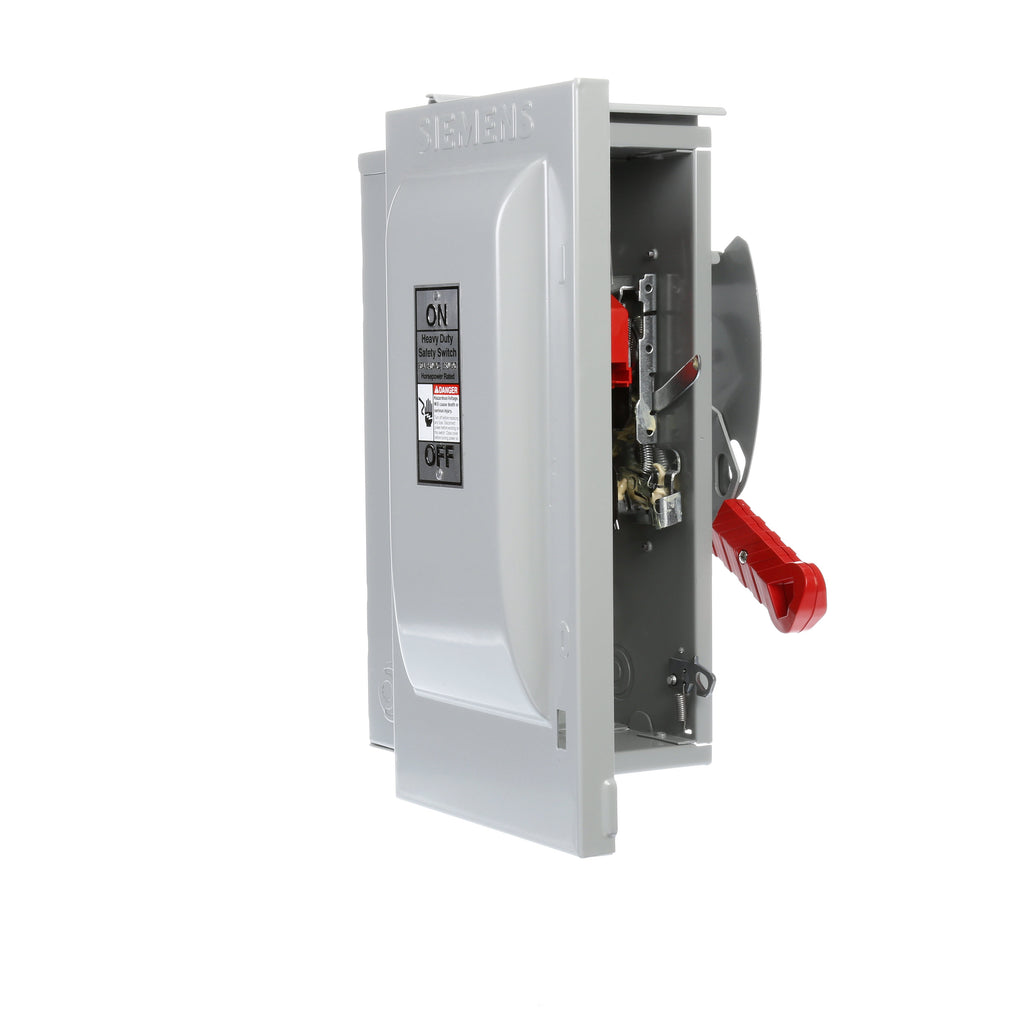

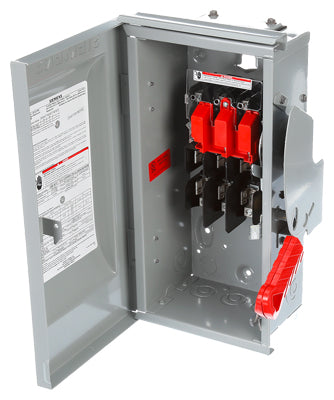

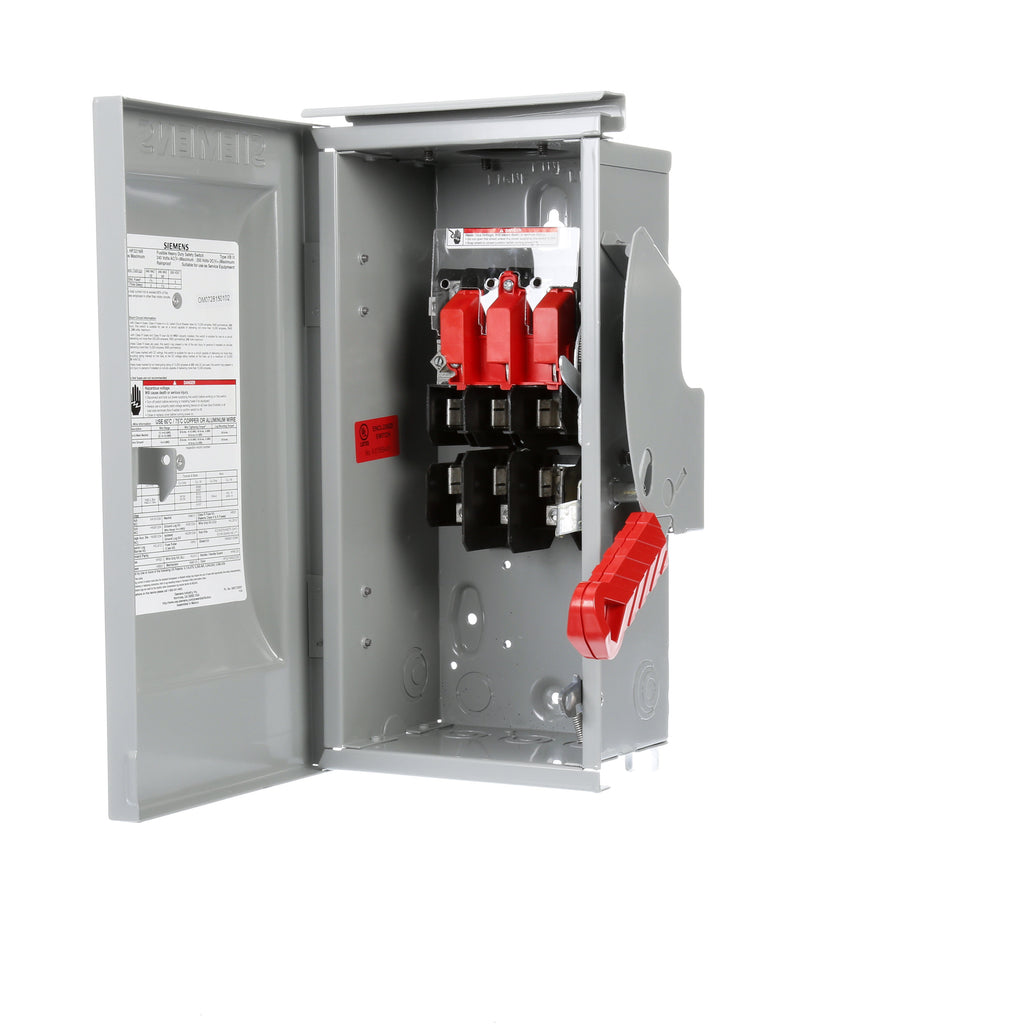

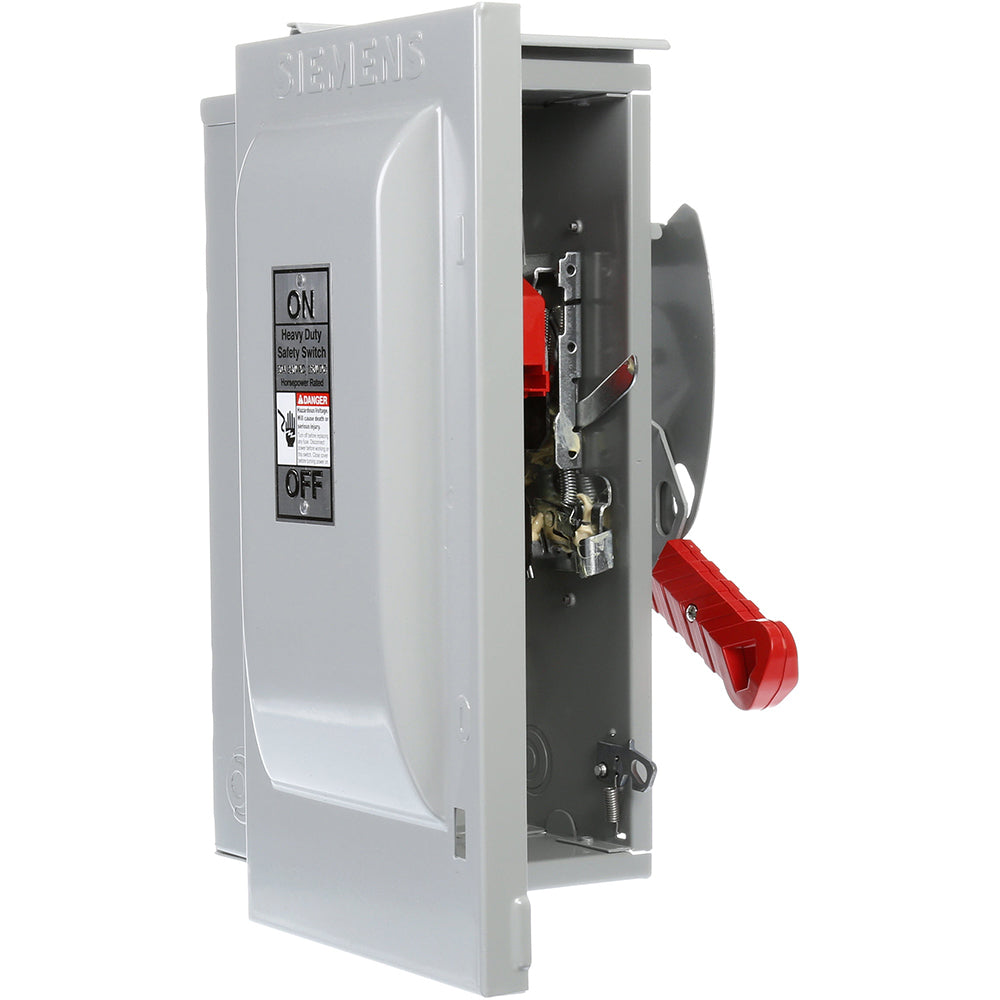

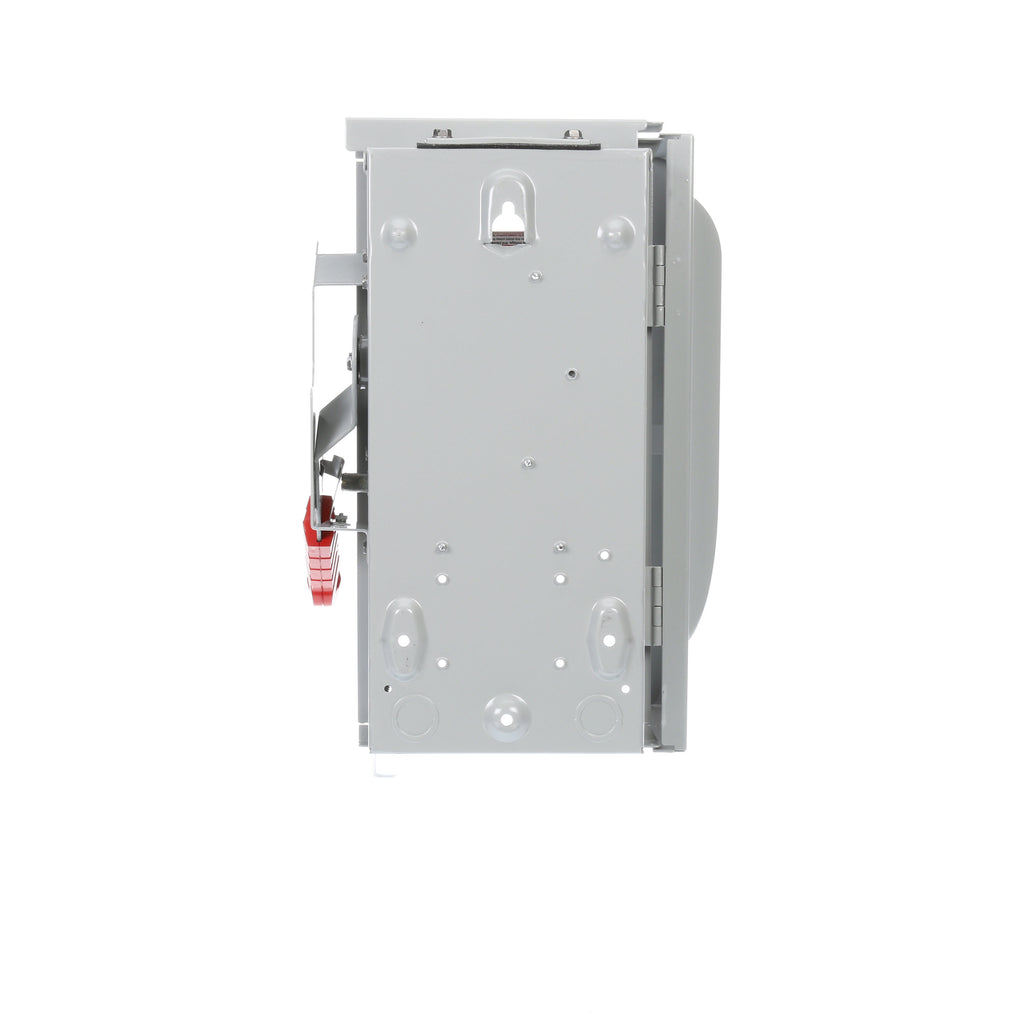

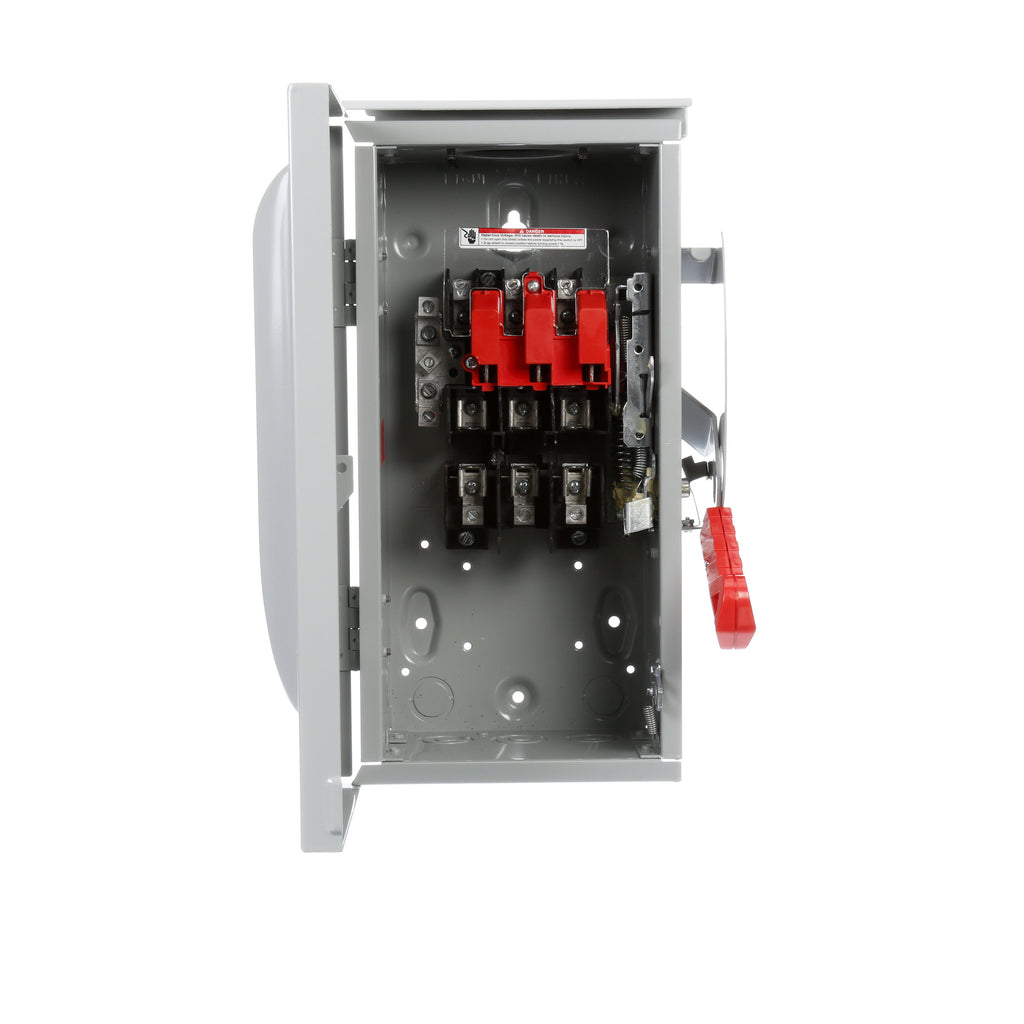

HF321NR - Siemens 30 Amp 240 VAC three-pole fusible heavy duty safety switch with NEMA 3R enclosure.This Siemens HF321NR is a heavy duty fusible safety switch rated for 30 amps at 240 VAC and 250 VDC, featuring three poles and four wires in a NEMA 3R outdoor enclosure. It provides reliable single-throw operation with solid neutral and is designed for demanding applications.
- Amperage: 30A
- Voltage: 240 VAC / 250 VDC
- Poles: 3-Pole
- Wires: 4-Wire
- Enclosure: NEMA 3R
- Type: Fusible Heavy Duty Safety Switch
- Action: Single Throw
- Neutral: Solid Neutral
- Interrupt Rating: 100kA@480V
- Certifications: UL98 Listed
Specifications
- Part Number: HF321NR
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 240 AC
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
- Compatible Frames : MXP
Product Data
- UPC : 783643150683
- GTIN : 00783643150683
- Country of Origin : Mexico
- Dimensions : 14.91 x 7.88 x 9.18 inch
- Weight : 13.999
- Certification : UL listed
