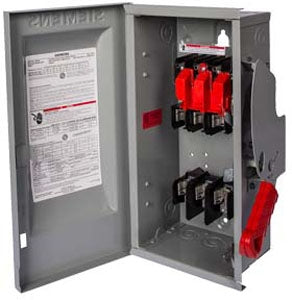

HF323N - Siemens 100A 240V 3-Pole Fusible Heavy Duty Safety Switch NEMA 1 Indoor

HF323N

HF323N is a heavy-duty fused safety switch rated for 100 amperes at 240 volts AC with 3-pole configuration and solid neutral design.

This enclosed safety switch features a Type 1 NEMA-rated enclosure suitable for indoor use and service entrance applications. The switch incorporates a double-break visible blade design with quick-make and quick-break switching action, providing highly visible ON/OFF indication. The unit is constructed of galvanized steel with mechanical lugs for electrical connections and surface mounting. It meets UL98 standards for switches and UL50 for enclosures, and complies with NEMA Standard KS-1 for enclosed switches.

• Amperage: 100A
• Voltage: 240V AC / 250V DC
• Poles: 3-Pole
• Configuration: 3-Fuse with solid neutral
• Enclosure Type: Type 1 (Indoor)
• Mounting: Surface
• Material: Galvanized Steel
• Electrical Connection: Mechanical Lugs
• Operating Cycles: 10,000
• Ambient Temperature Range: -29°C to 85°C
• Frequency: 50/60 Hz
• Certifications: UL98, UL50, NEMA KS-1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HF323N
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 240 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : NS

Product Data

• UPC : 783643150300
• GTIN : 00783643150300
• Country of Origin : Mexico
• Dimensions : 25.591 x 14.173 x 7.48 inch
• Weight : 21.451
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Certification : UL listed
