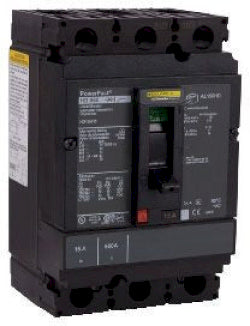

HDP36150 - Square D 150A 600V 3 Pole PowerPact H Frame Circuit Breaker Thermal Magnetic

HDP36150

HDP36150 is a Square D 3 pole, 150 amp, 600 volt PowerPact H frame molded case circuit breaker designed for reliable circuit protection.This thermal magnetic breaker features a unit mount design with a 14kA interrupt rating at 600VAC and 18kA at 480VAC. It is UL and CSA certified, suitable for industrial and commercial applications requiring robust overload and short circuit protection.

• Amperage: 150 Amps
• Voltage Rating: 600 VAC max
• Poles: 3 Pole
• Mounting Type: Unit Mount
• Interrupt Rating: 14kA @ 600VAC, 18kA @ 480VAC
• Series/Frame: PowerPact H Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA
• Breaking Capacity Code: D
• Dimensions: Approx. 4.12" W x 4.36" D x 6.4" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDP36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDP
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901854258
• GTIN : 00785901854258
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
