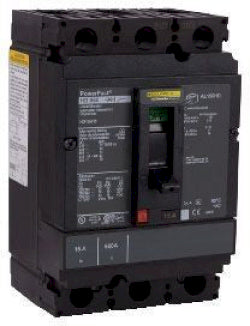

HDP36125 - Square D PowerPact H Frame 125A 3 Pole 600V Molded Case Circuit Breaker, Thermal Magnetic Trip, Bolt-On Mount, 18kA Interrupt Rating, UL/CSA Listed

HDP36125

HDP36125 is a Square D PowerPact H Frame molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications. This thermal magnetic, three-pole circuit breaker offers a 125A rating at up to 600VAC, with an 18kA interrupt rating at 480V. It features a bolt-on mounting configuration, 80% continuous current rating, and is UL 489 listed for safety and compliance.

Key Specifications
• Part Number: HDP36125
• Manufacturer: Square D by Schneider Electric
• Amperage: 125A
• Voltage: 600VAC (50/60 Hz), 250VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA at 480V
• Series/Frame: PowerPact H
• Trip Unit: Thermal Magnetic
• Continuous Rating: 80%
• Certifications: UL 489 Listed, CSA
• Dimensions: 4.12" W x 4.36" D x 6.4" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDP36125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDP
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901582069
• GTIN : 00785901582069
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
