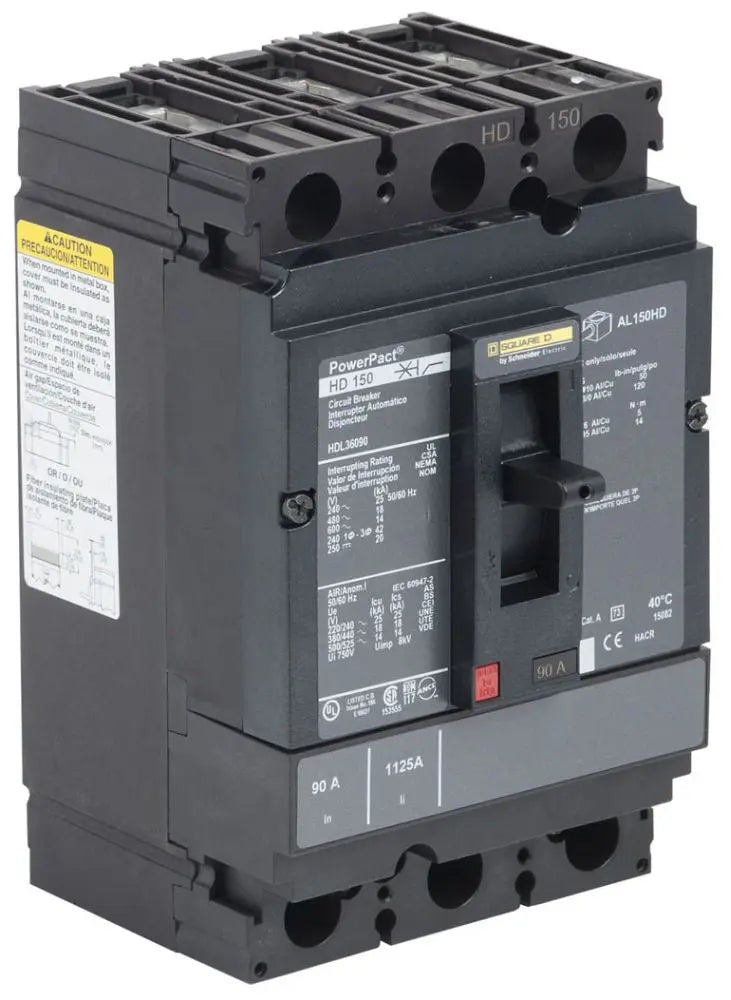

HDL36090C - Square D 90A 600V 3-Pole I-Line Powerpact Molded Case Circuit Breaker

HDL36090C

HDL36090C is a Square D 3-pole molded case circuit breaker designed for reliable power distribution and protection.This circuit breaker features a 90 amp trip rating with a 150 amp frame, suitable for 600 volt applications. It uses a thermal magnetic, current limiting trip unit for precise overload and short circuit protection. The breaker is part of the I-Line Powerpact series, known for its robust construction and compatibility with I-Line panelboards.

• Amperage Rating: 90 A trip, 150 A frame
• Voltage Rating: 600 V
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC
• Trip Unit: Thermal Magnetic, Current Limiting
• Series/Frame: Powerpact I-Line

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36090C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901054030
• GTIN : 00785901054030
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
