HDL36020 - Square D 20A 600VAC 3 Pole Thermal Magnetic Circuit Breaker PowerPacT H Series

HDL36020

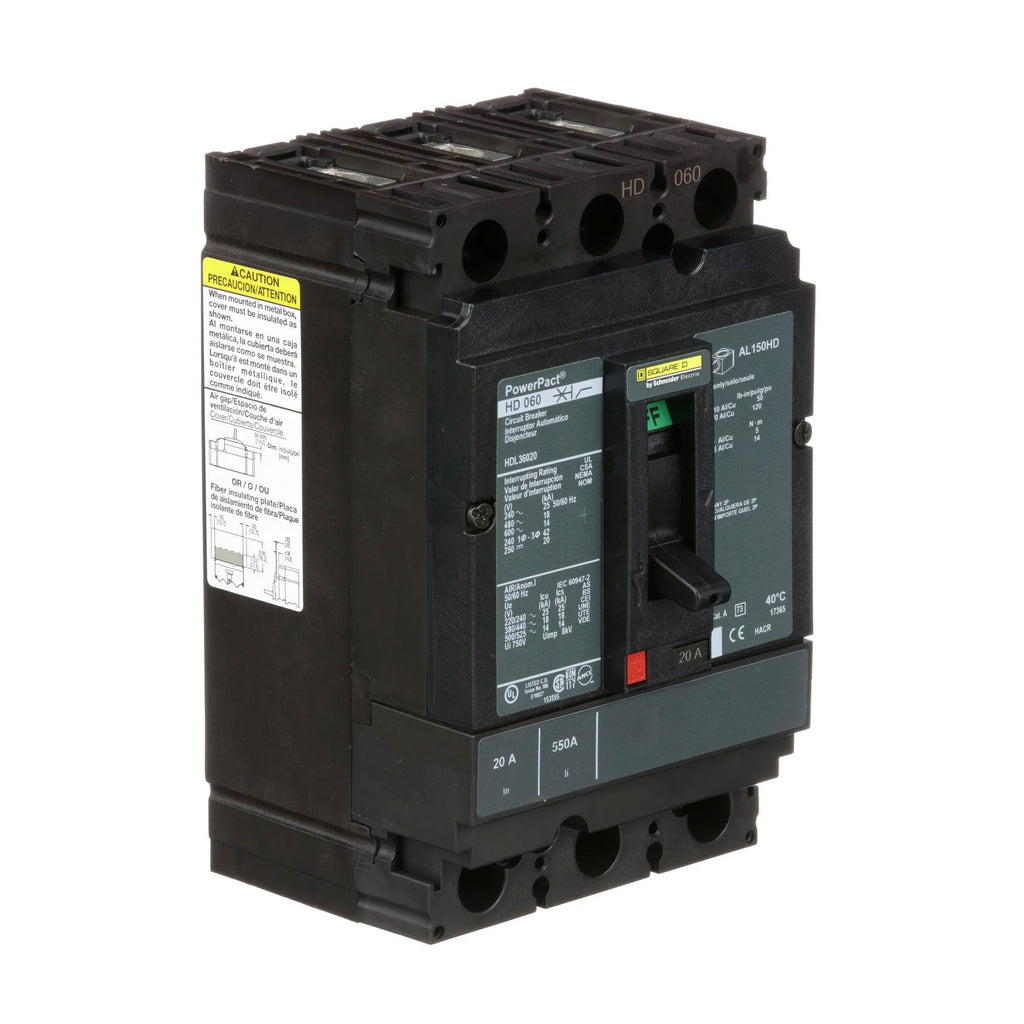

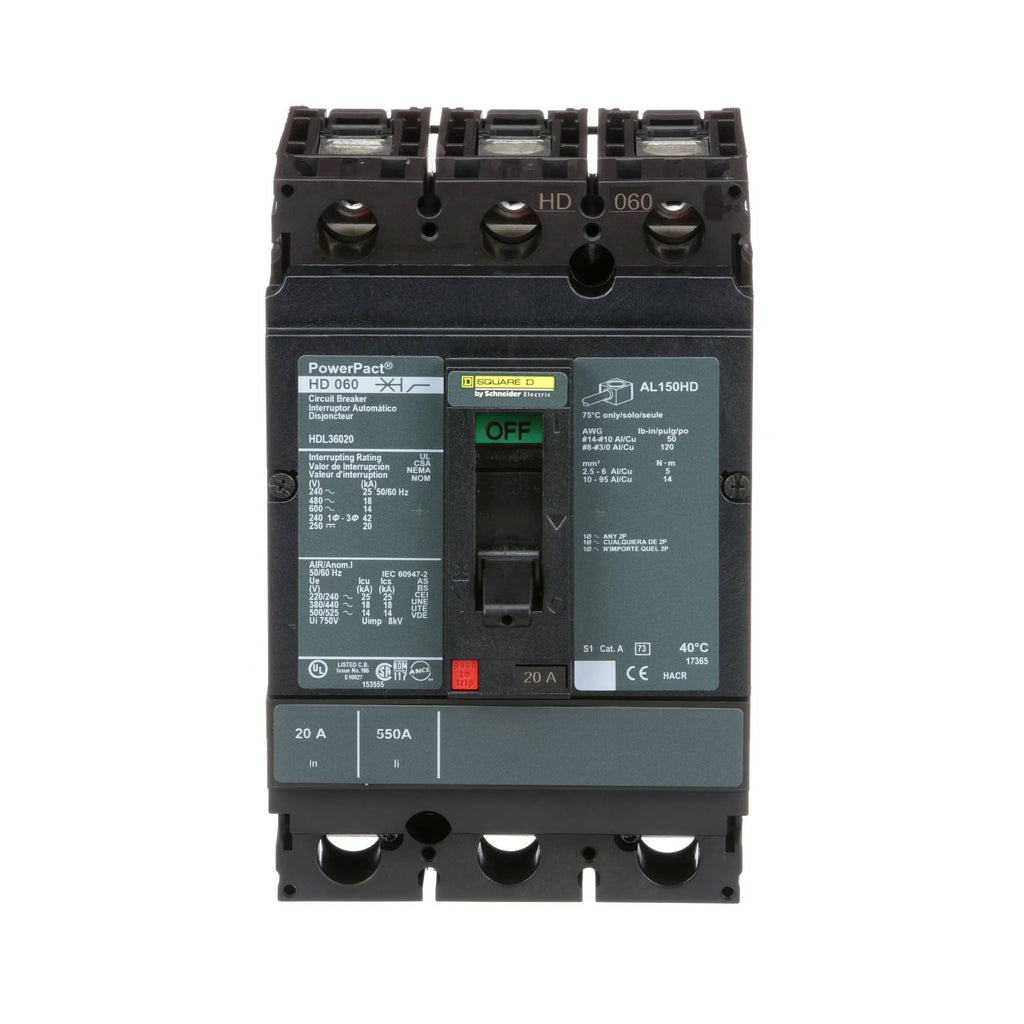

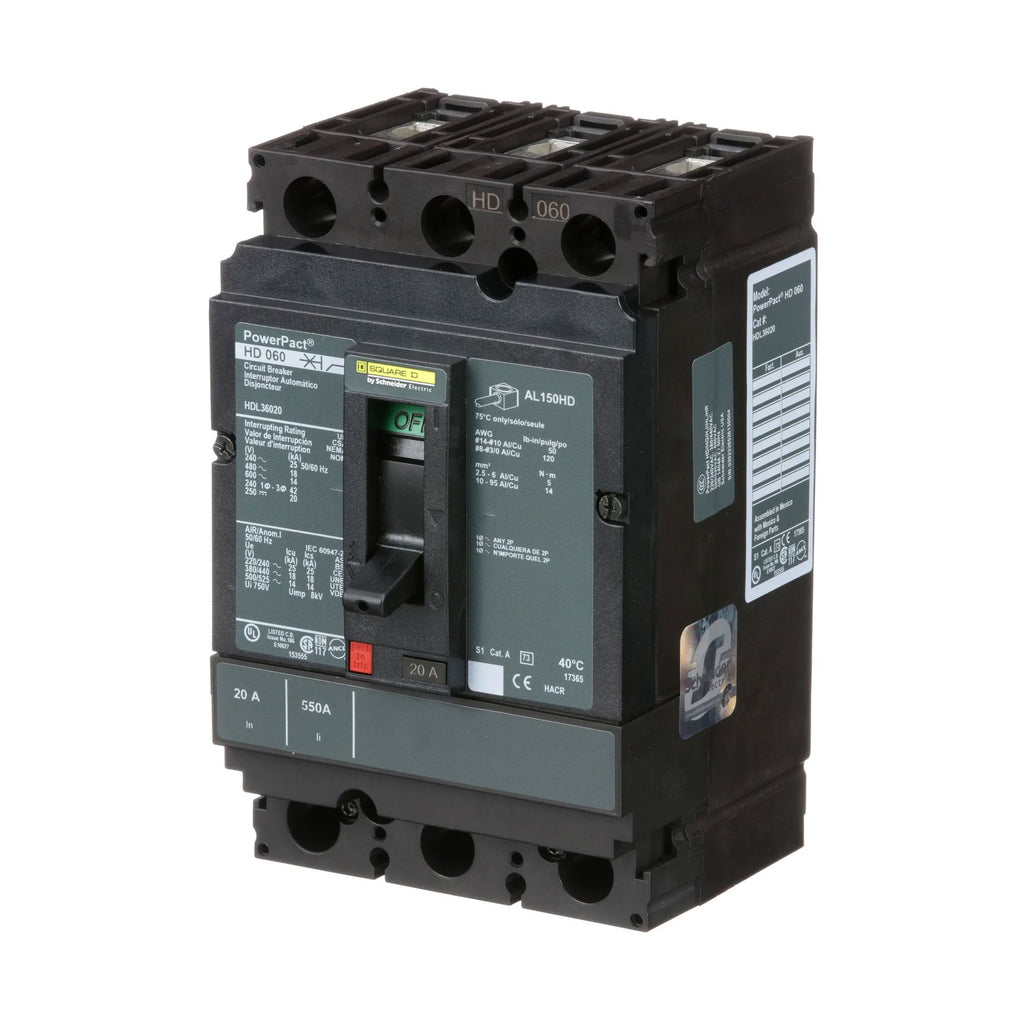

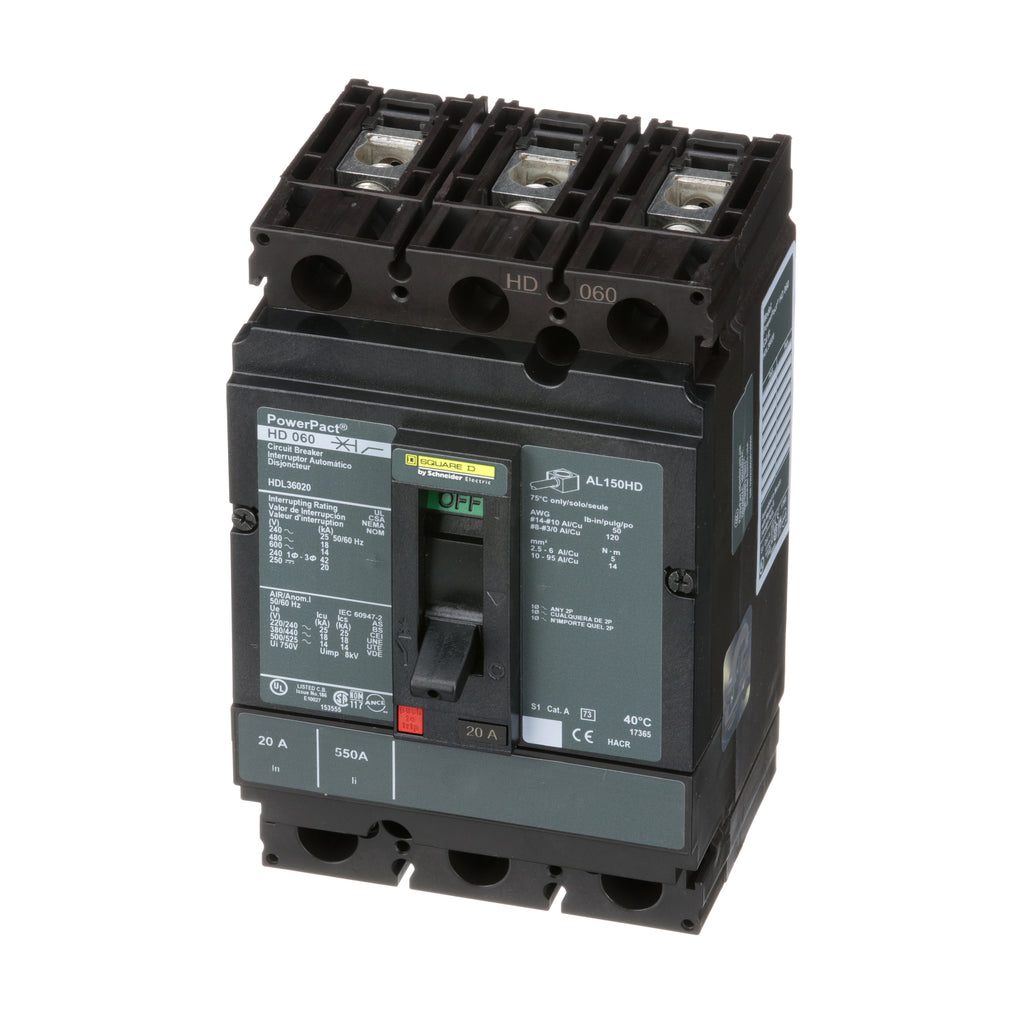

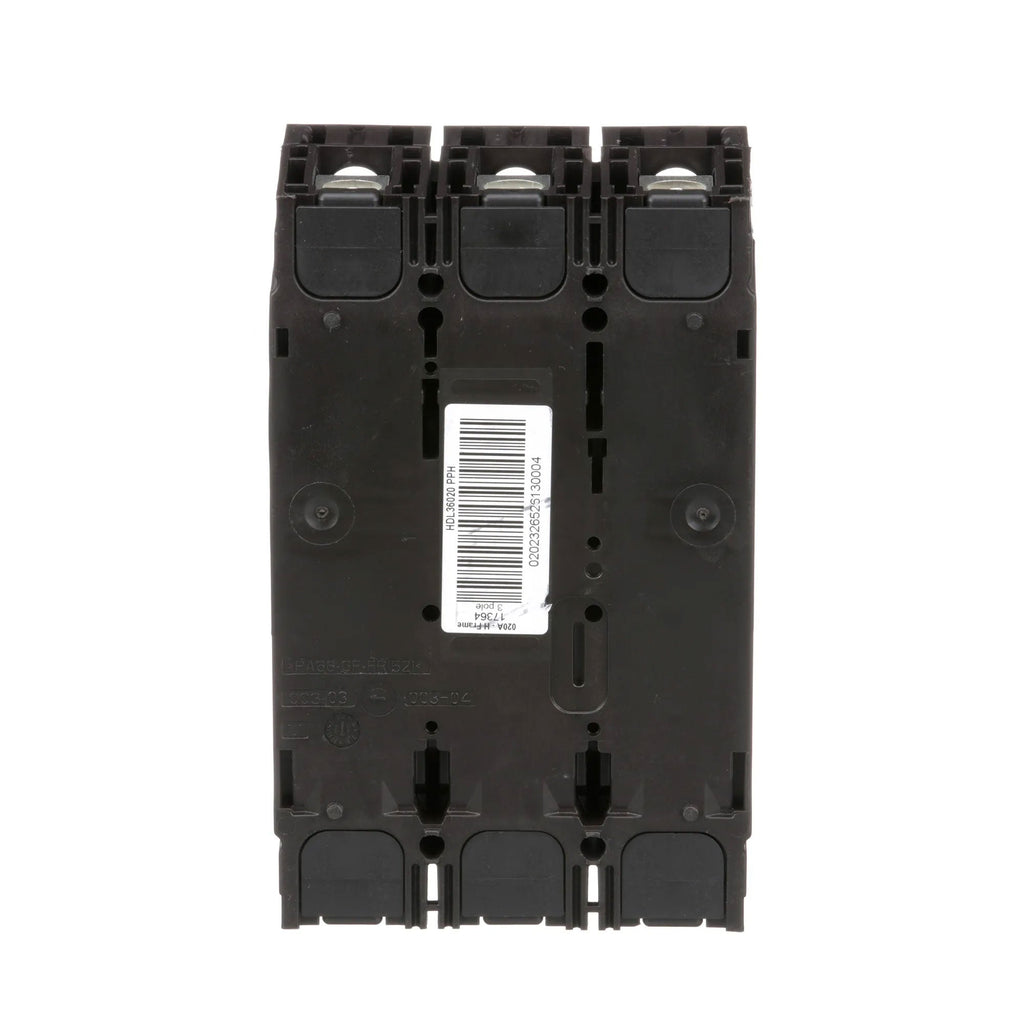

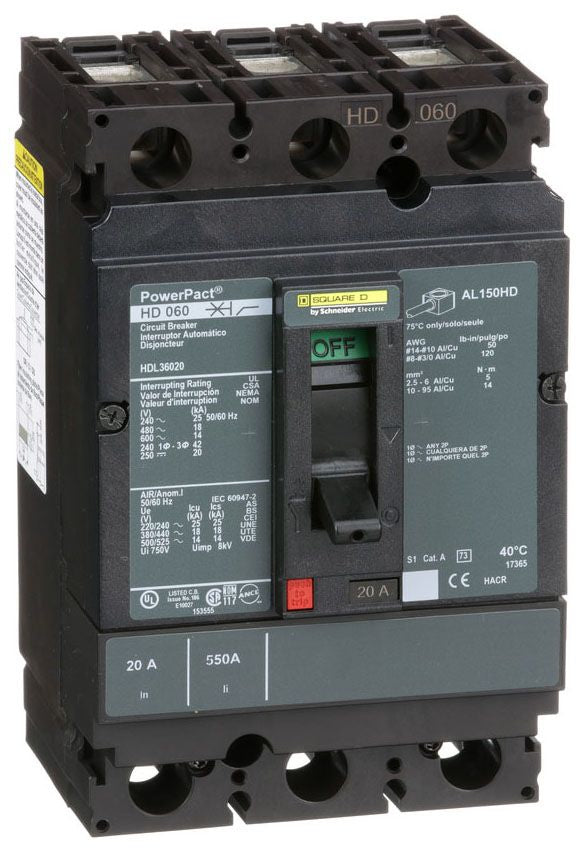

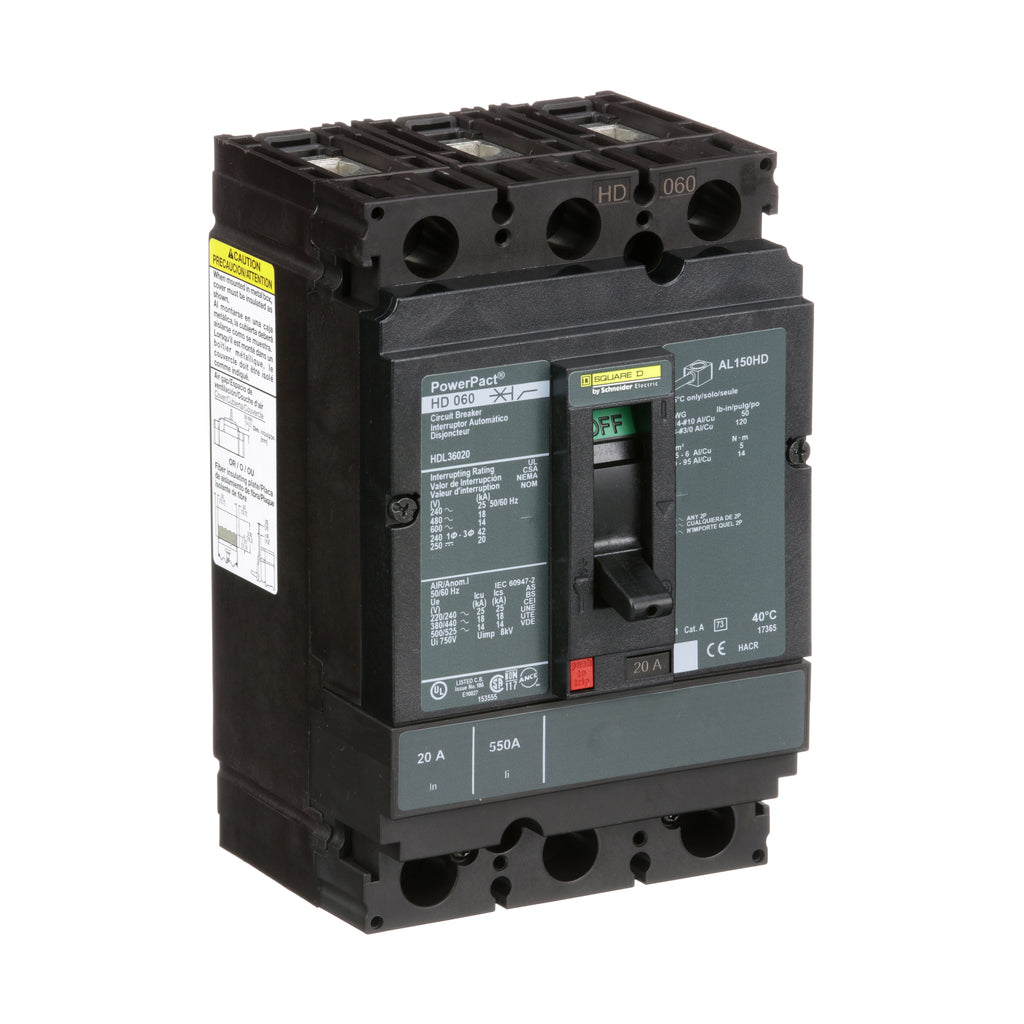

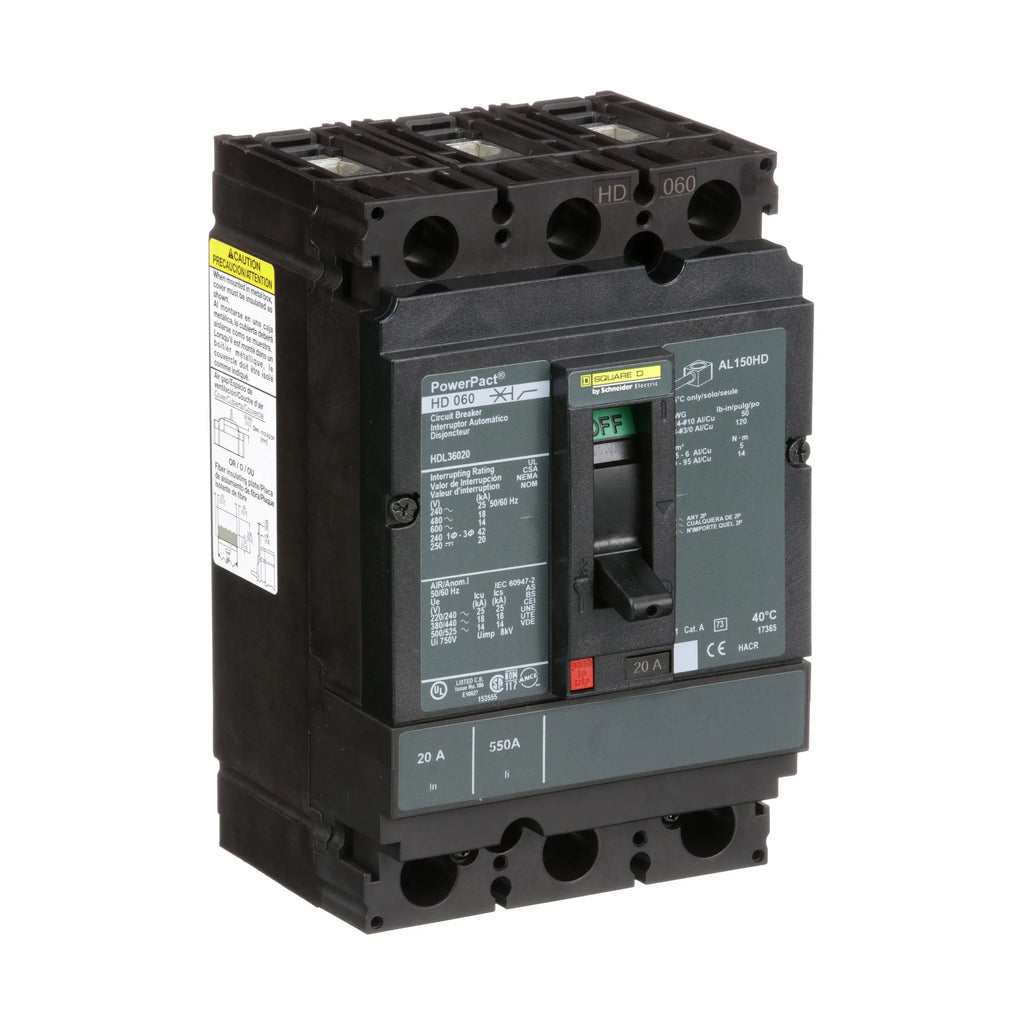

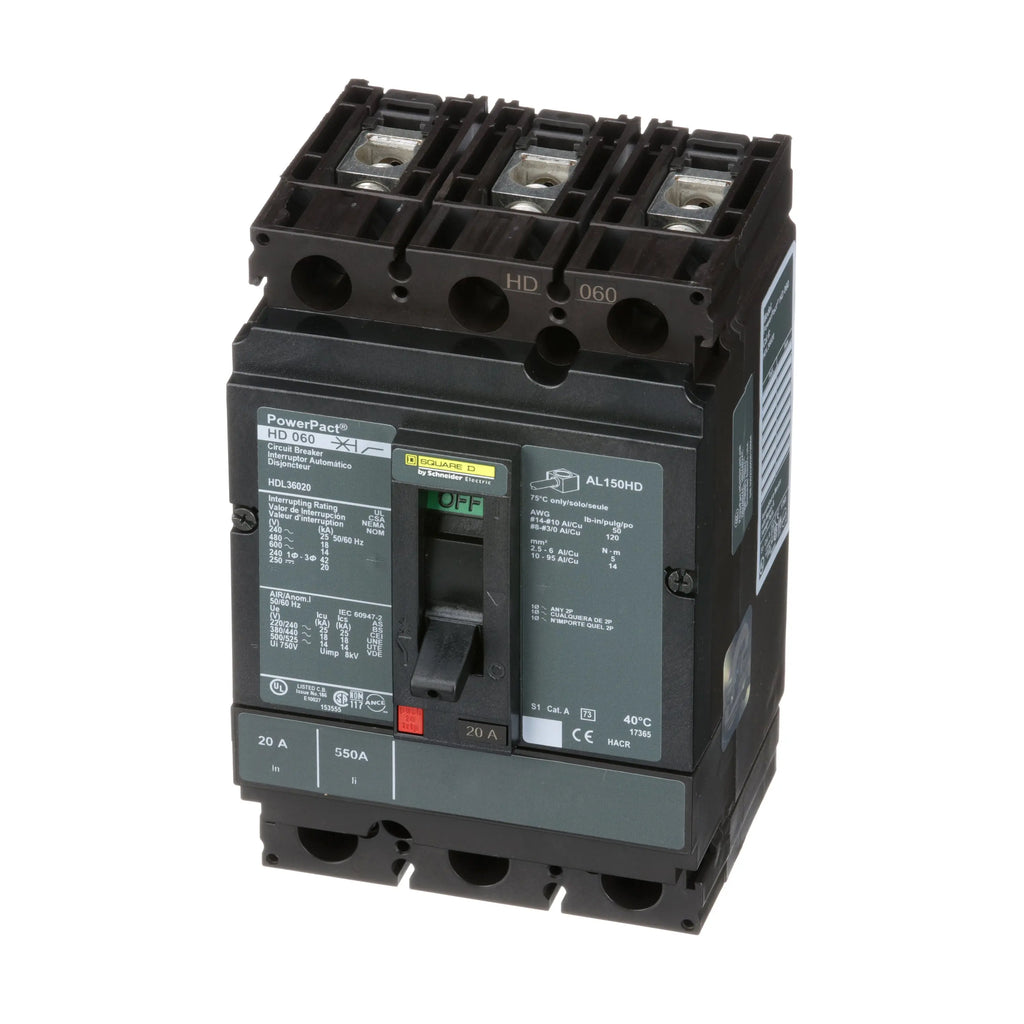

HDL36020 is a 20 Amp, 3 Pole thermal magnetic molded case circuit breaker from Square D's PowerPacT H Series designed for 600VAC applications.This circuit breaker features a unit mount design with a 14kA interrupting rating at 600VAC and includes long-time and instantaneous trip functions for reliable overload and short circuit protection.

• Amperage: 20A
• Voltage Rating: 600/690VAC
• Number of Poles: 3
• Mounting Type: Unit Mount
• Interrupting Rating: 14kA at 600VAC, 18kA at 480VAC, 25kA at 240VAC
• Series/Frame: PowerPacT H, HDL Frame
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous) trip
• Terminal Connection: Line and Load Side Lug
• Wire Size Range: AWG 14 to 3/0 Aluminum/Copper
• Certifications: UL Listed, CSA Certified, IEC Rated, CE Marked, NEMA, NOM
• Dimensions: Approx. 6.4" H x 4.1" W x 3.4" D
• Operating Temperature: -25 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901706694
• GTIN : 00785901706694
• Country of Origin : Mexico

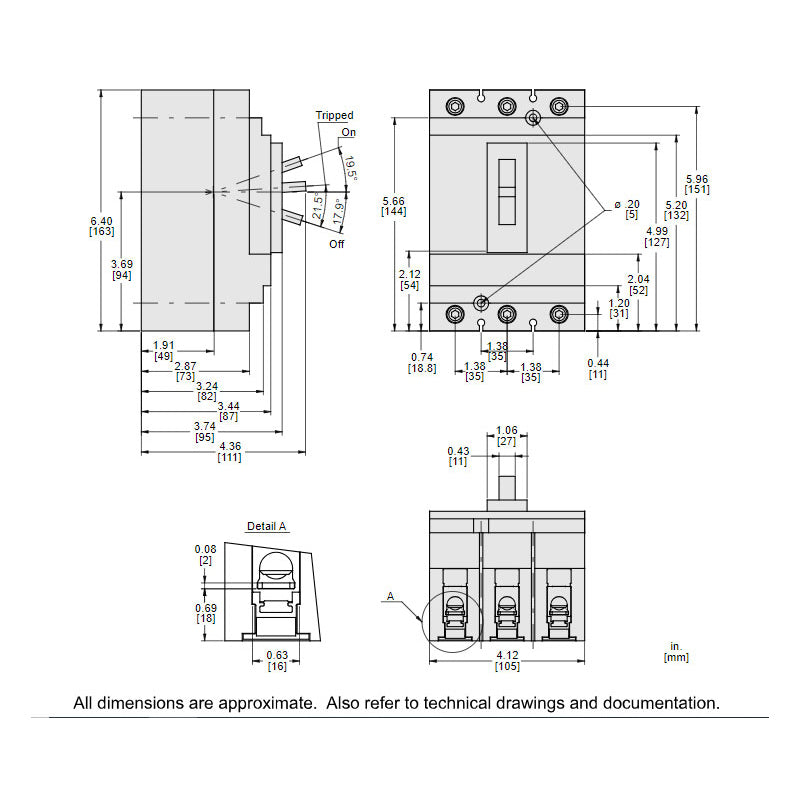

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.061
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
