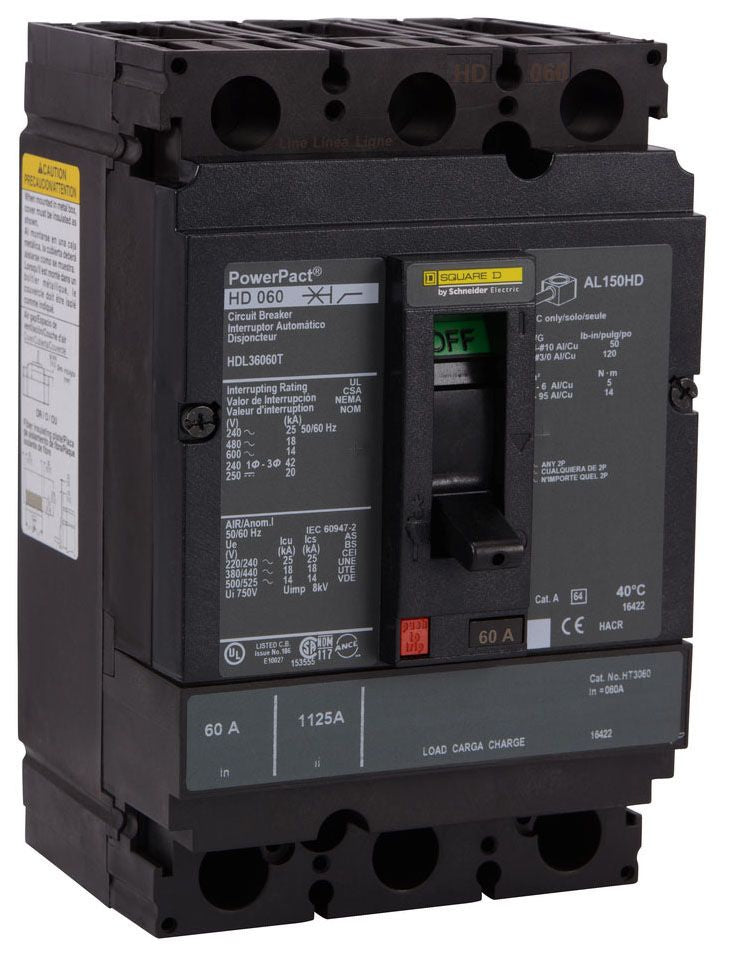

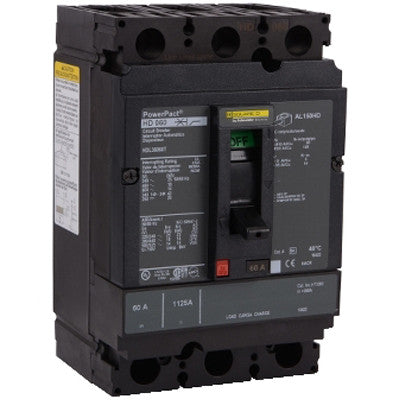

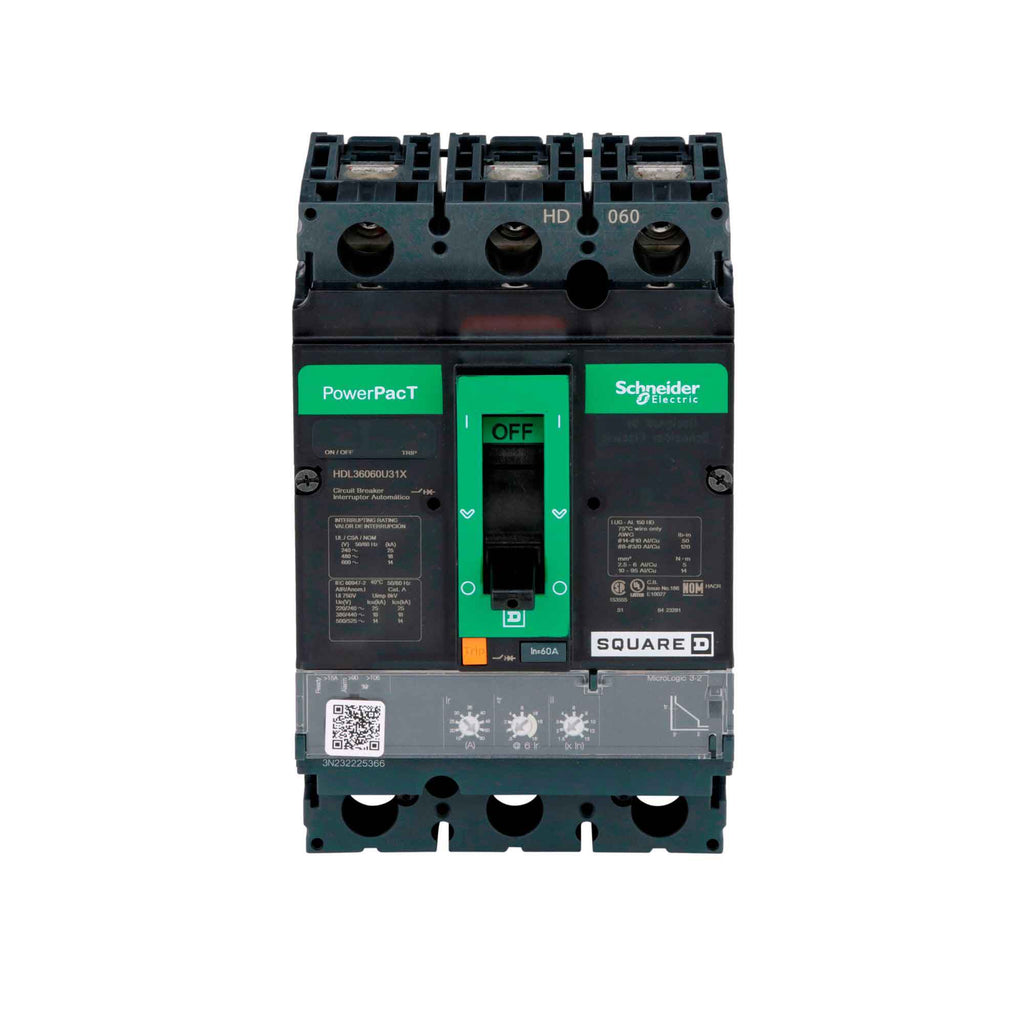

HDL36060U31X - Square D 60A 600VAC 3 Pole Molded Case Circuit Breaker, Unit Mount, Solid State, Long Time & Instantaneous Trip

HDL36060U31X

HDL36060U31X is a 3 pole, 60 amp, 600VAC molded case circuit breaker from Square D designed for unit mounting with solid state protection.This Square D HDL36060U31X circuit breaker features a 3 pole configuration with a 60 amp continuous current rating and a voltage rating up to 600VAC. It includes long time and instantaneous trip functions with solid state electronic trip units. The breaker has a unit mount type frame (HDL series) and offers interrupting ratings of 25kA at 240VAC, 18kA at 480VAC, and 14kA at 600VAC. It supports line and load side lug connections compatible with wire sizes from AWG 14 to AWG 3/0 aluminum or copper. Certified to UL, CSA, CE, NEMA, NOM, IEC, and RoHS standards, it is UL 489 listed and suitable for three-phase applications.

Key Specifications
• Manufacturer: Square D
• Part Number: HDL36060U31X
• Amperage: 60 Amps
• Voltage Rating: 600VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupting Rating: 25kA@240VAC, 18kA@480VAC, 14kA@600VAC
• Frame/Series: HDL
• Trip Unit: Solid State, Long Time and Instantaneous
• Connection Type: Line and Load Side Lug
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper
• Certifications: UL 489, CSA, CE, NEMA, NOM, IEC, RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36060U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901230472
• GTIN : 00785901230472
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.28
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
