Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HDL36050LU

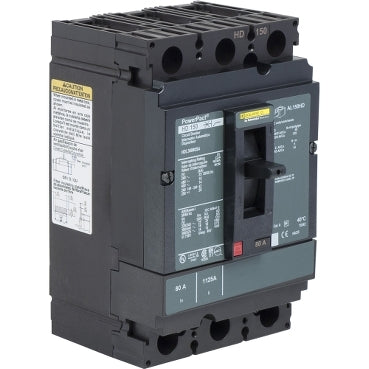

HDL36050LU is a Square D PowerPact H molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 3-pole, 50A, 600V breaker features a thermal-magnetic trip unit and is suitable for a wide range of electrical systems. The unit mount design with lugs provides secure and easy installation, making it ideal for feed-thru and reverse fed applications. This PowerPact H circuit breaker offers a breaking capacity of 14kA at 600VAC and is rated for 80% continuous current. The breaker is UL 489 listed and certified to multiple international standards, ensuring global acceptance and compliance. Its robust construction and versatile mounting options make it a dependable choice for demanding environments.
- Part Number: HDL36050LU
- Manufacturer: Square D
- Series/Frame: PowerPact H
- Poles: 3
- Amperage: 50A
- Voltage: 600VAC
- Mounting Type: Unit Mount
- Interrupt Rating: 14kA at 600VAC
- Continuous Current Rating: 80%
- Trip Unit: Thermal-Magnetic
- Electrical Connection: Lugs
- Certifications: UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC, CE
Specifications
- Part Number: HDL36050LU
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HDL
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : H Frame
- Temp Rating : 28-158 °F (-2-70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901219415
- GTIN : 00785901219415
- Country of Origin : United States
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 3.999
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
