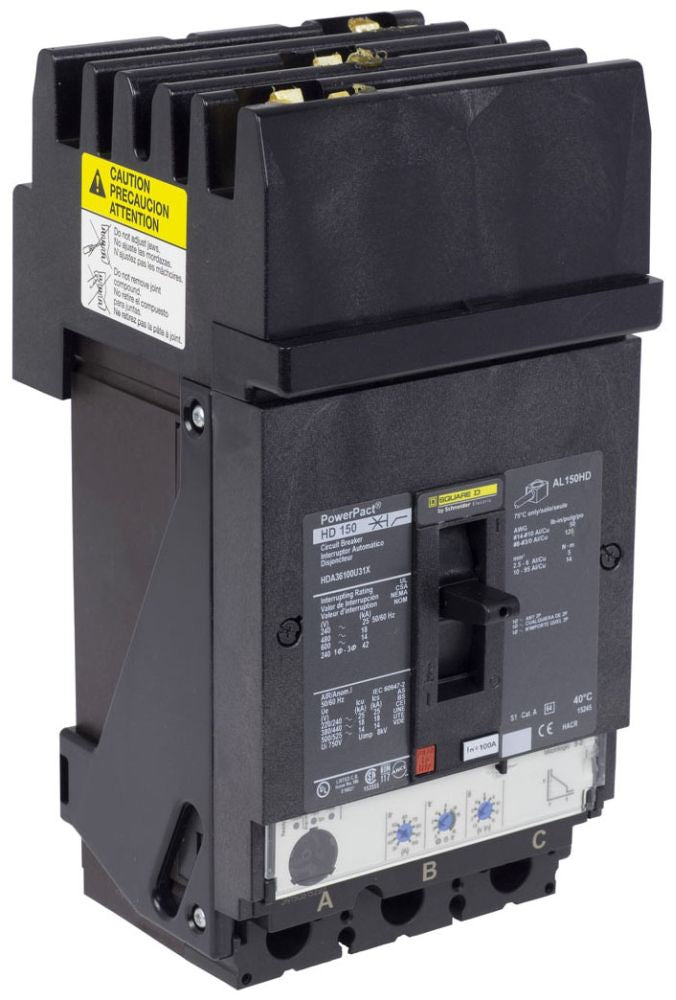

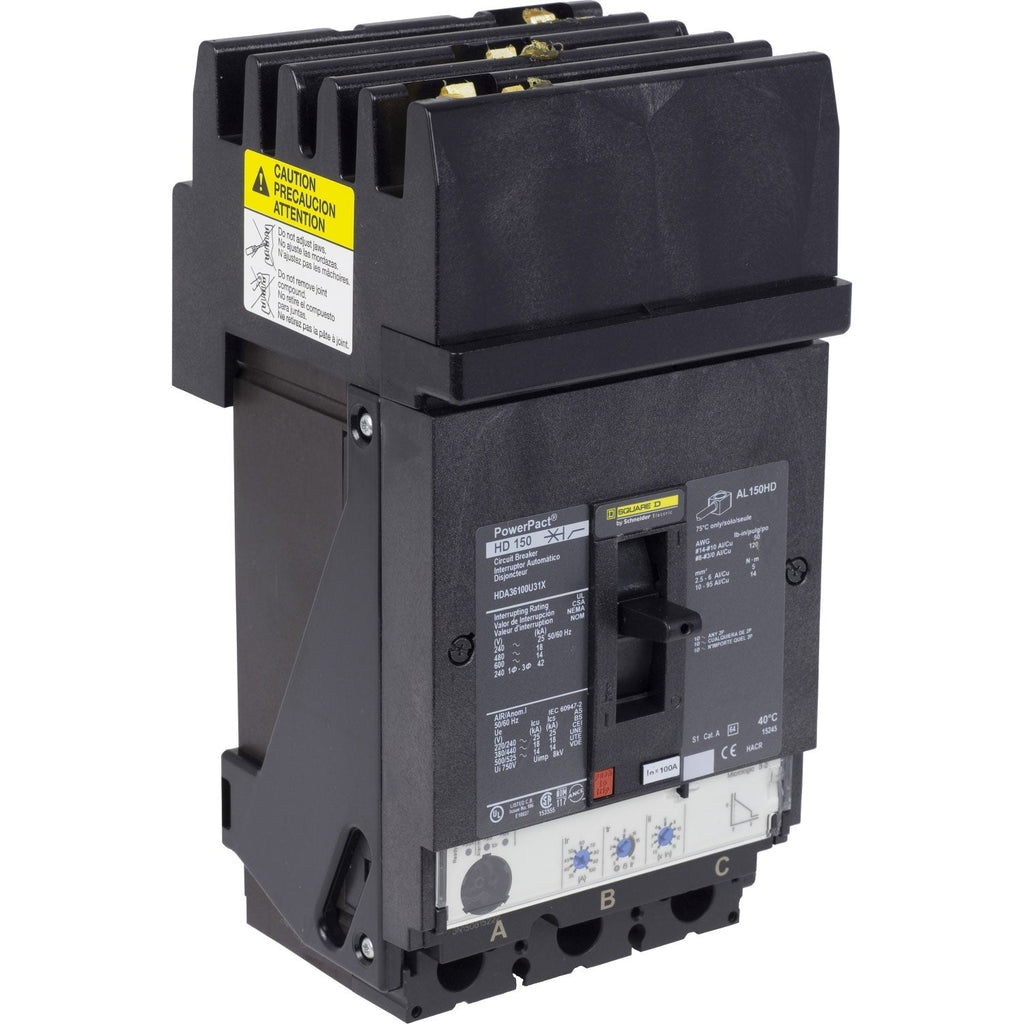

HDA36100U31X - Square D 100 Amp 600 Volt 3 Pole Molded Case Circuit Breaker I-Line Micrologic 3.2

HDA36100U31X

HDA36100U31X is a Square D molded case circuit breaker designed for 100 amp, 600 volt applications with 3 poles and I-Line mounting.This PowerPact H series breaker features a Micrologic 3.2 electronic trip unit, 18kA interrupt rating at 480V, and is suitable for 3-phase ABC connections. It is UL, CSA, and CE certified, designed for reliable protection in industrial and commercial power distribution systems.

• Amperage: 100 Amp
• Voltage: 600 Volt AC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 18kA @ 480V AC
• Series/Frame: PowerPact H (Type HDA)
• Trip Unit: Micrologic 3.2 Electronic
• Phase: 3 Phase ABC
• Certifications: UL Listed, CSA, CE
• Application: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36100U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901154426
• GTIN : 00785901154426
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.171
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
