HDA36100 - Square D 100A 600V 3 Pole I-Line Thermal Magnetic Circuit Breaker PowerPact H

HDA36100

HDA36100 is a Square D PowerPact H series 3 pole circuit breaker rated for 100 amps and 600 volts with thermal magnetic trip unit.This molded case circuit breaker features an interrupt rating of 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC, and 20 kA at 250 VDC. It is designed for I-Line plug-in mounting and supports wire gauges from AWG 14 to 3/0 aluminum or copper. The breaker is UL, CSA, CE, and IEC certified, suitable for power distribution applications requiring reliable overload and short circuit protection.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 V AC, 250 V DC
• Number of Poles: 3P
• Interrupt Rating: 25 kA @ 240 V AC, 18 kA @ 480 V AC, 14 kA @ 600 V AC, 20 kA @ 250 V DC
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line plug-in
• Wire Gauge: AWG 14 to 3/0 aluminum/copper
• Series/Frame: PowerPact H
• Certifications: UL Listed, CSA, CE, IEC
• Magnetic Hold Current: 900 A
• Magnetic Trip Current: 1700 A

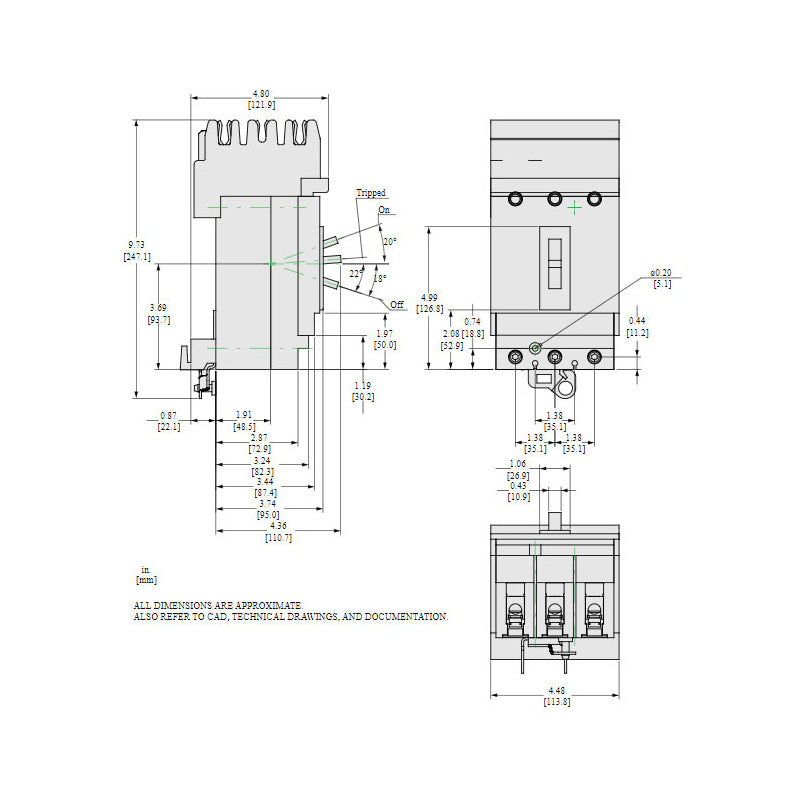

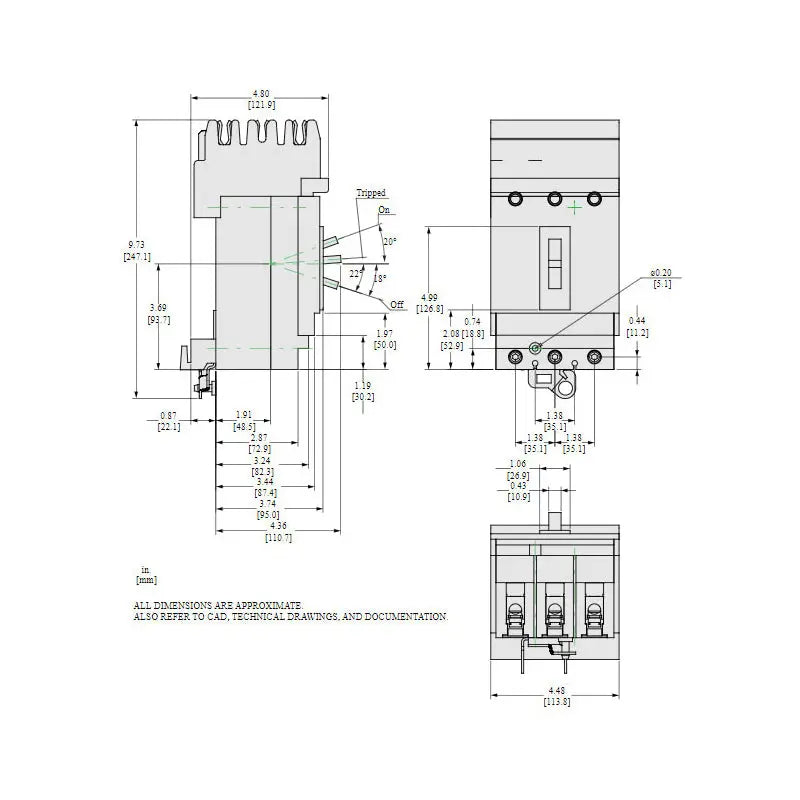

• Dimensions: Height 9.73 in, Width 4.48 in, Depth 4.8 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901419983
• GTIN : 00785901419983
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.549
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
