Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
H321N

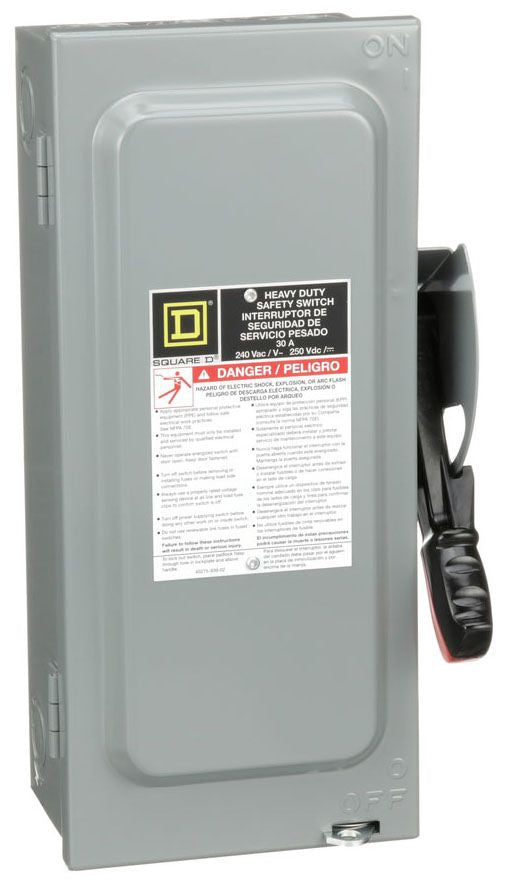

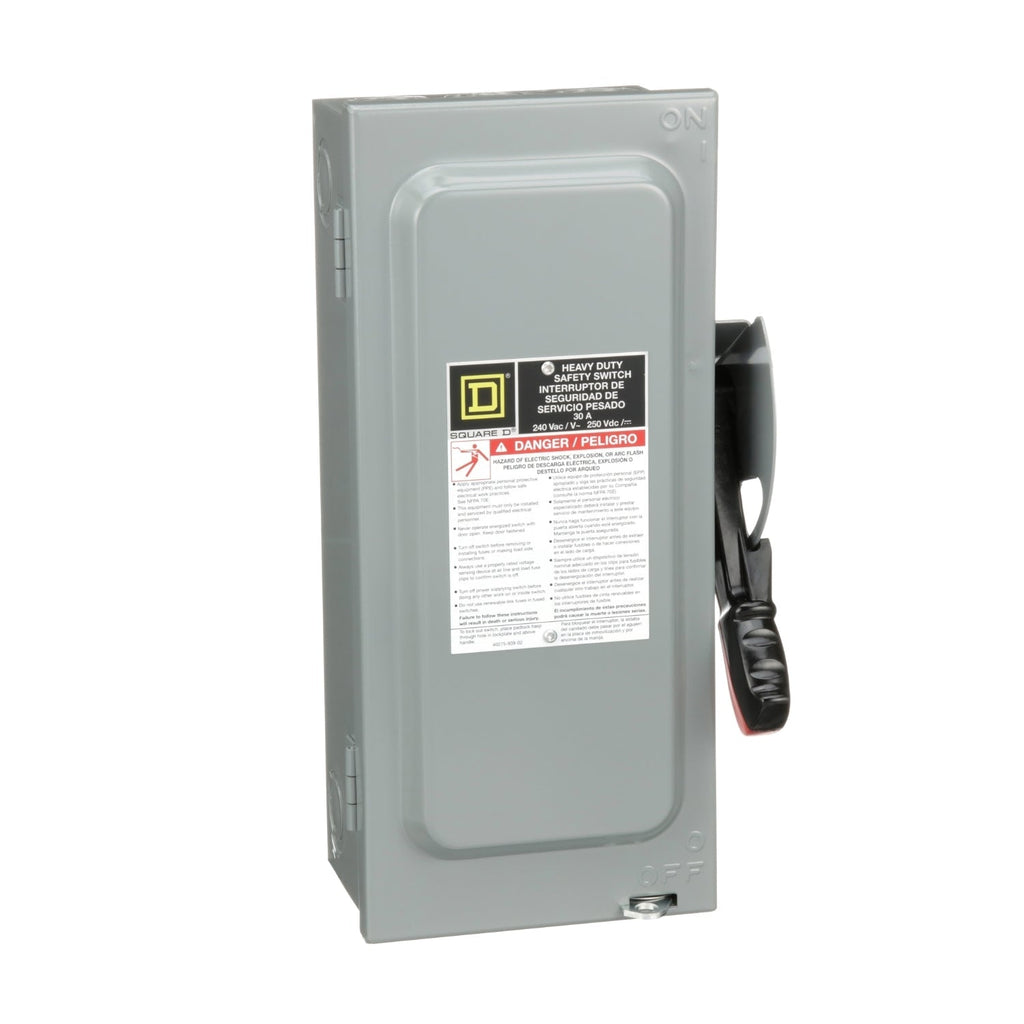

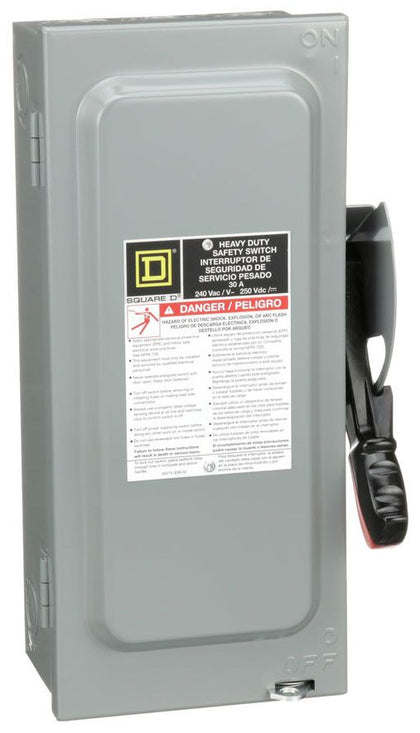

H321N Square D heavy duty fusible safety switch delivers reliable circuit control for demanding indoor applications.
This 3-pole, 3-wire safety disconnect switch is rated for 30A at 240V AC, features a galvanized steel NEMA 1 enclosure, and is designed for heavy-duty use. It accepts Class R fuses, offers a high interrupting rating, and is suitable for motor loads from 1.5 to 5 HP. Ideal for industrial and commercial installations requiring robust safety and disconnecting means.
-
Key Specifications
- Part Number: H321N
- Manufacturer: Square D
- Amperage: 30A
- Voltage: 240V AC, 250V DC
- Poles: 3
- Mounting Type: Indoor
- Enclosure: NEMA 1, galvanized steel
- Interrupt Rating: 200kA at 240V
- Series/Frame: H Series
- Trip Unit: Fusible, accepts Class R fuses
- Certifications: Not specified in available data
- Horsepower Rating: 1.5 to 5 HP
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: H321N
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 240
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
Product Data
- UPC : 785901480082
- GTIN : 00785901480082
- Dimensions : 14.6 in (370.8 mm) x 6.5 in (165.1 mm) x 4.88 in (123.95 mm) (Height x Width x Depth)
- Weight : 8.001
- Certification : UL Listed
