Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Disconnect
- Series
- Series F
- Frame
- H
- Rated current
- 30
- Voltage
- 240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 200kA@240V
- Configuration
- Single
- Switch style
- Fusible
- Fuse class
- R
- NEMA rating
- 1
Show all specifications (5 more)
- Compatible Frames
- FAP
- UPC
- 785901477686
- GTIN
- 00785901477686
- Dimensions
- 14.6 in (370.8 mm) x 6.5 in (165.1 mm) x 4.88 in (123.95 mm) (Height x Width x Depth)
- Weight
- 7.811
Product description & additional details

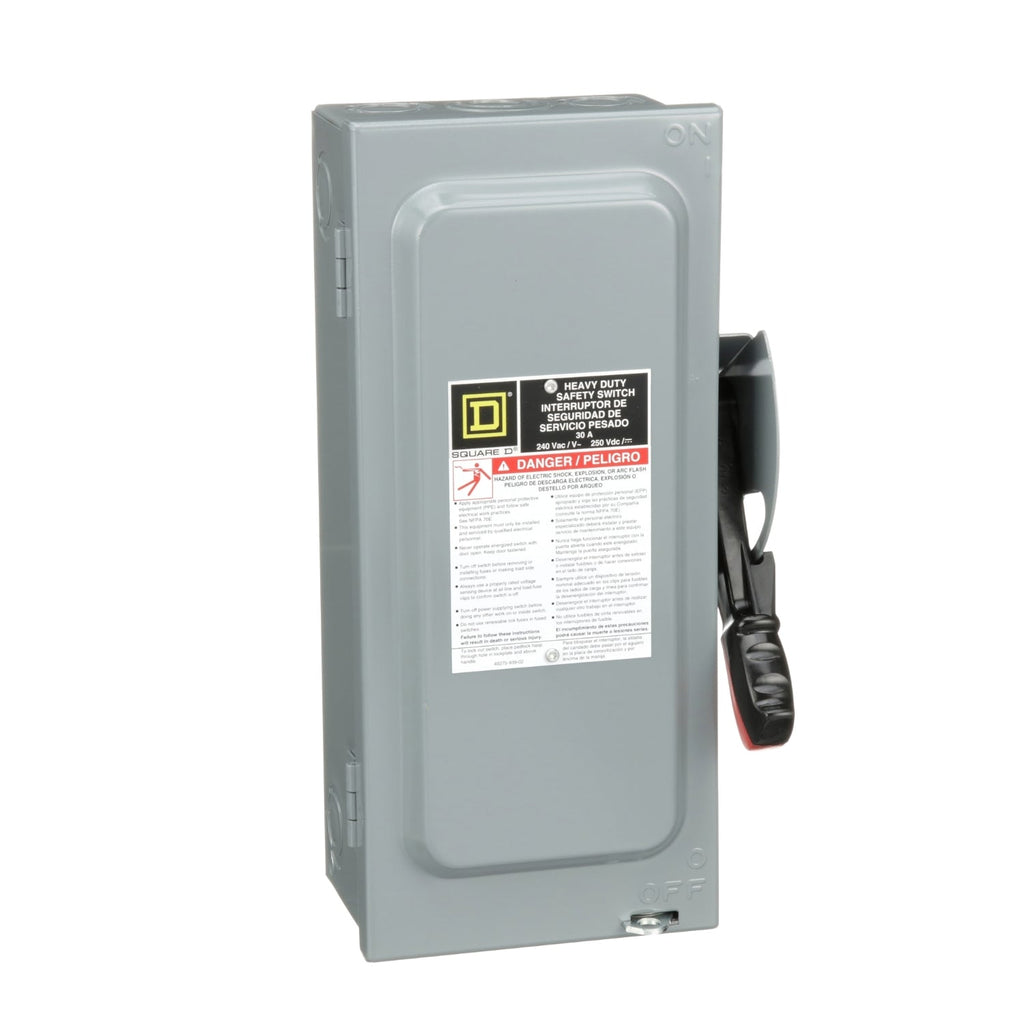

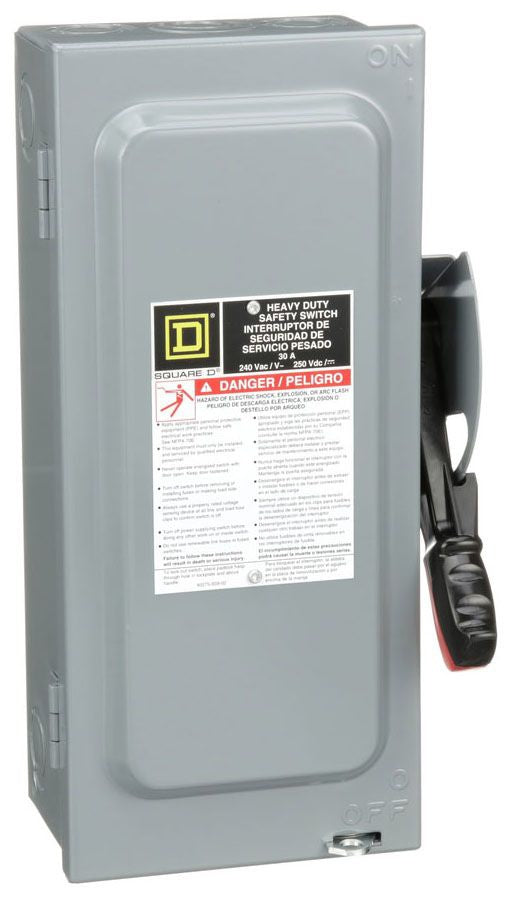

H221N
H221N is a heavy duty fusible safety switch designed for reliable circuit protection in commercial and industrial applications. This Square D model features a 2-pole, 3-wire configuration with a factory-installed neutral and is rated for 30A at 240VAC and 250VDC. The switch is surface mounted and built with a robust steel enclosure for durability. Engineered for demanding environments, the H221N offers a quick-make, quick-break mechanism, dual cover interlock, and color-coded indicator handle. It accepts Class H, J, K, L, and R fuses and is suitable for indoor use with a NEMA 1 rating. The switch provides a high interrupting rating and is UL listed for safety and compliance.
- Part Number: H221N
- Manufacturer: Square D
- Amperage: 30A
- Voltage: 240VAC, 250VDC
- Poles: 2
- Mounting Type: Surface
- Interrupting Rating: 200kAIC at 240V
- Series: F
- Fusibility: Fusible
- Enclosure: NEMA 1 Steel
- Neutral: Factory Installed
- Certifications: UL Listed, RoHS
Specifications
- Part Number: H221N
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 200kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : FAP
Product Data
- UPC : 785901477686
- GTIN : 00785901477686
- Dimensions : 14.6 in (370.8 mm) x 6.5 in (165.1 mm) x 4.88 in (123.95 mm) (Height x Width x Depth)
- Weight : 7.811
