Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Disconnect
- Series
- Series F
- Frame
- D
- Rated current
- 60
- Voltage
- 240 AC
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 100kA@240V
- Configuration
- Single
- Switch style
- Fusible
- Fuse class
- H, K, R
- NEMA rating
- NEMA 3R
- Country of origin
- United States
Show all specifications (6 more)
- Compatible Frames
- NSE
- UPC
- 785901461289
- GTIN
- 00785901461289
- Dimensions
- 14.88 in (377.95 mm) x 7.45 in (189.23 mm) x 4.87 in (123.70 mm) (Height x Width x Depth)
- Weight
- 8.589
- Certification
- UL listed
Product description & additional details
D322NRB

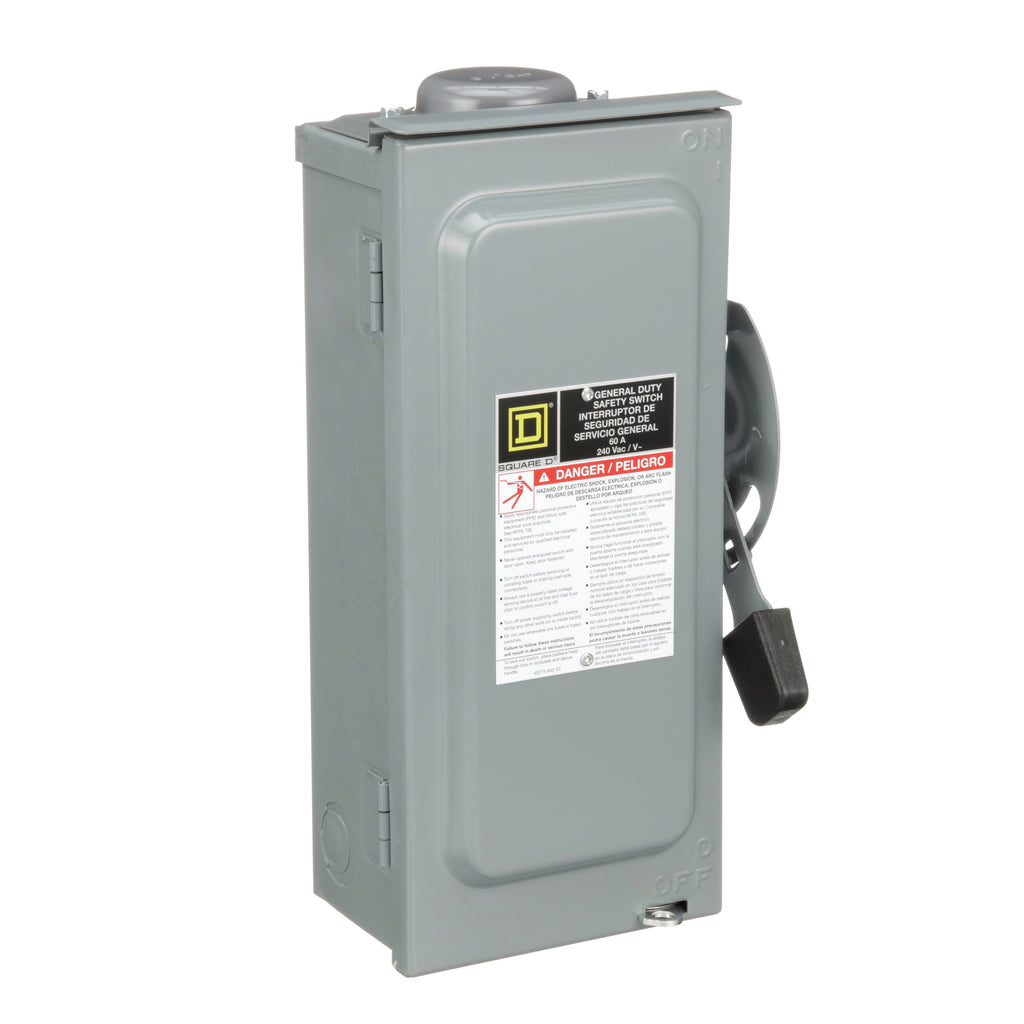

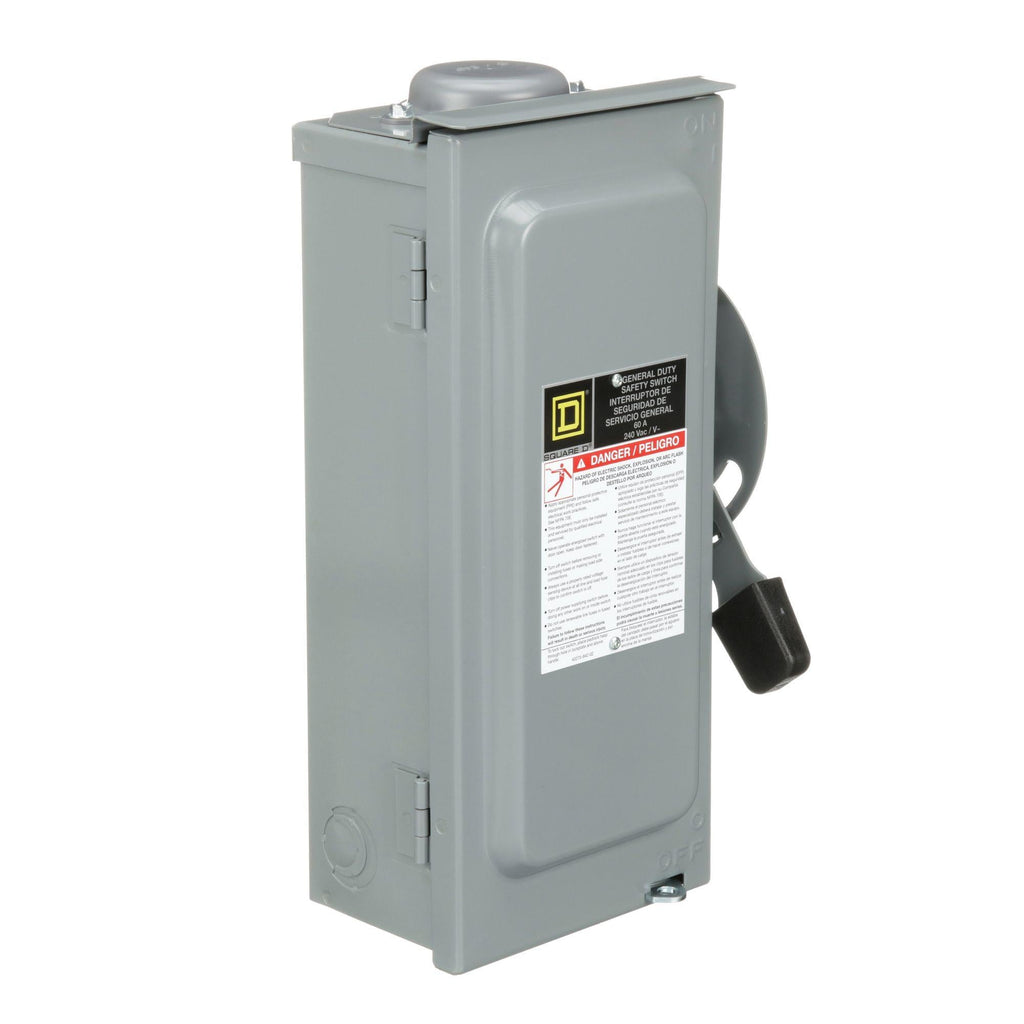

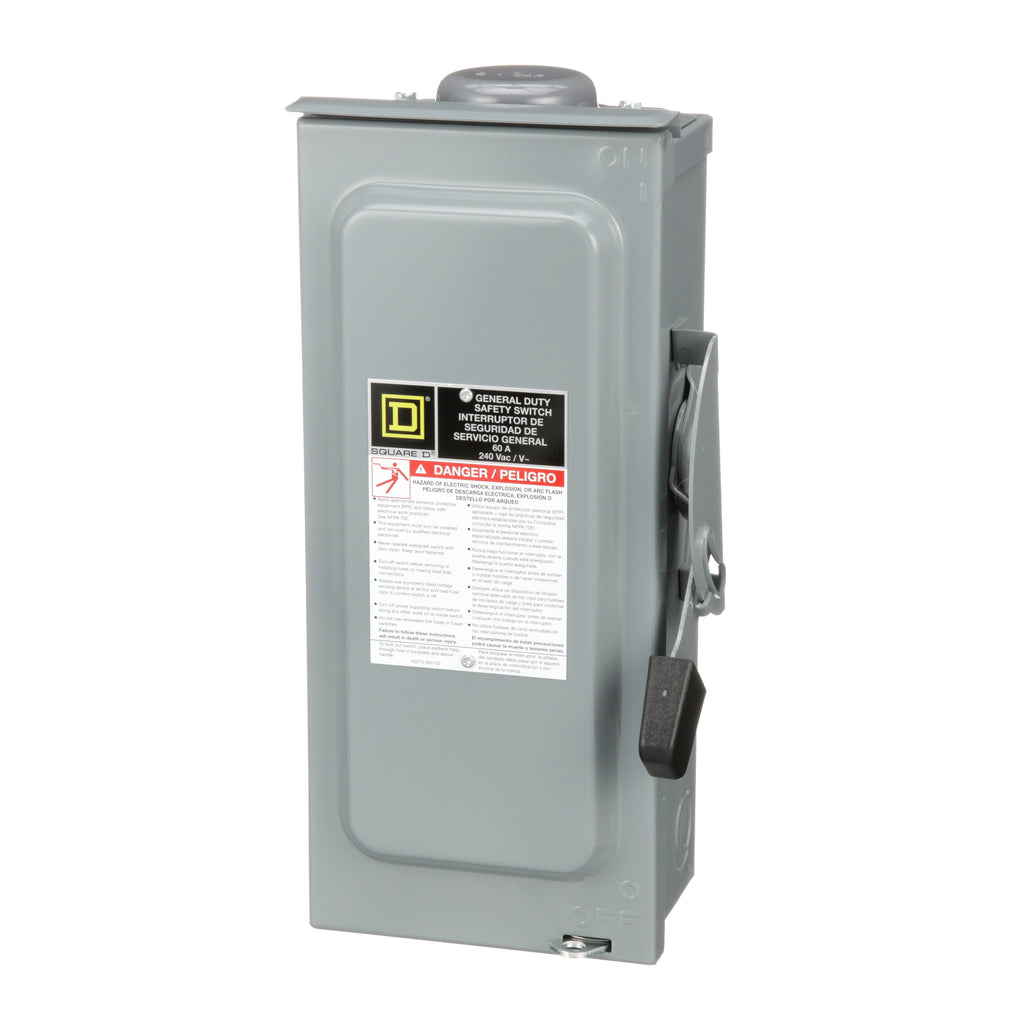

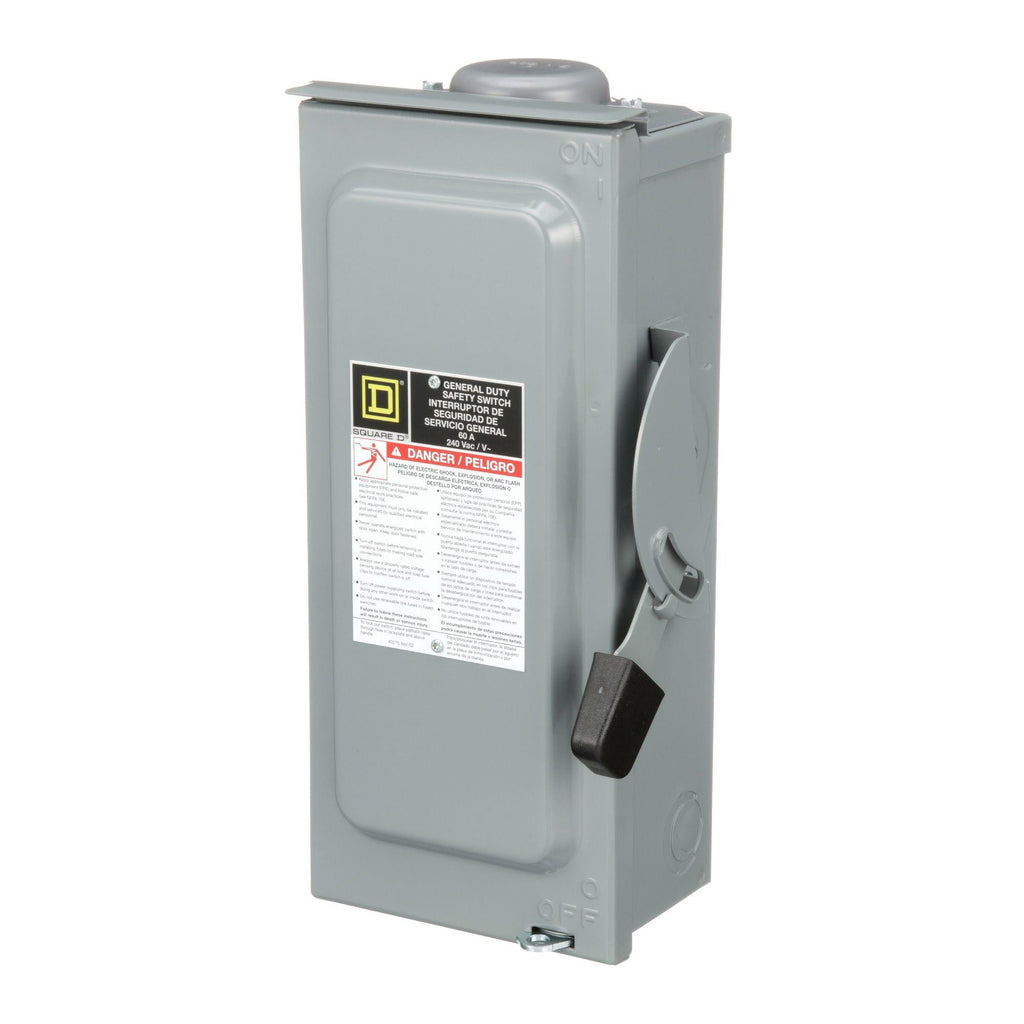

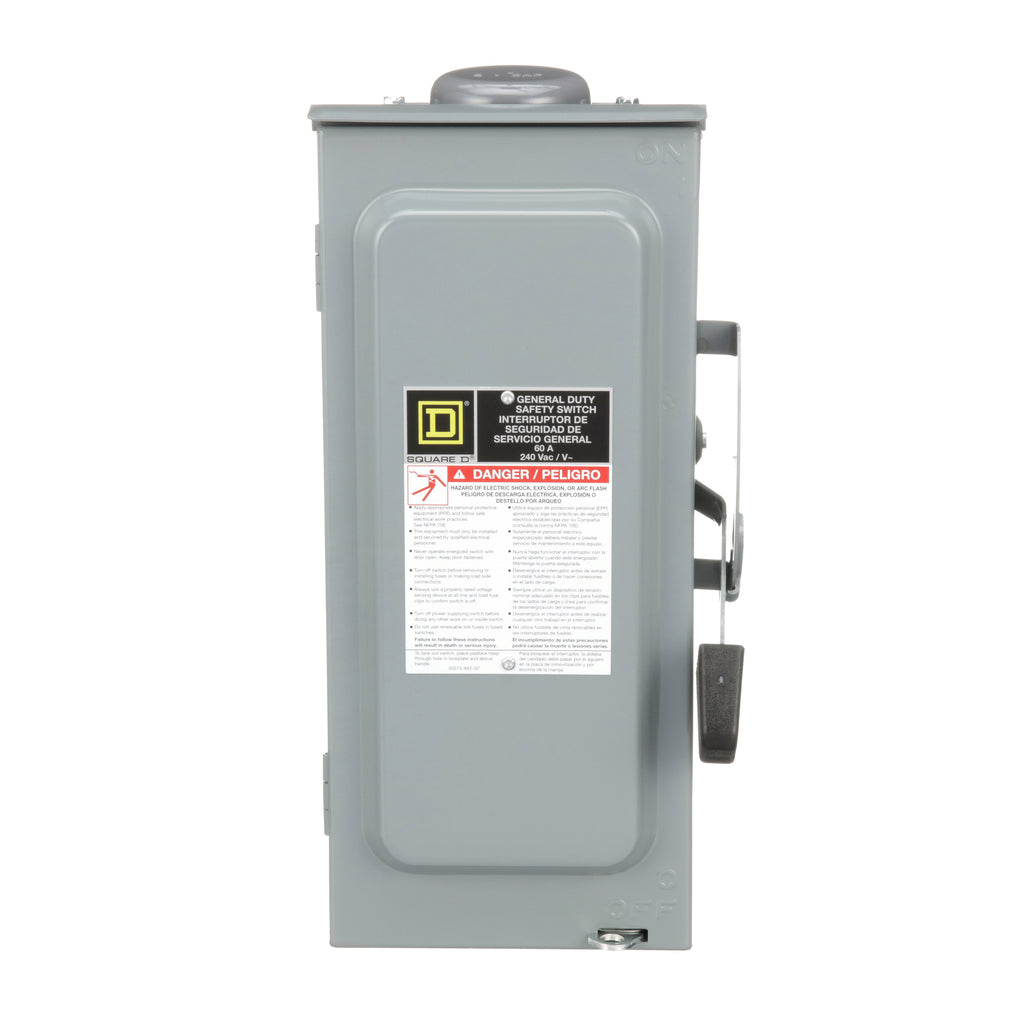

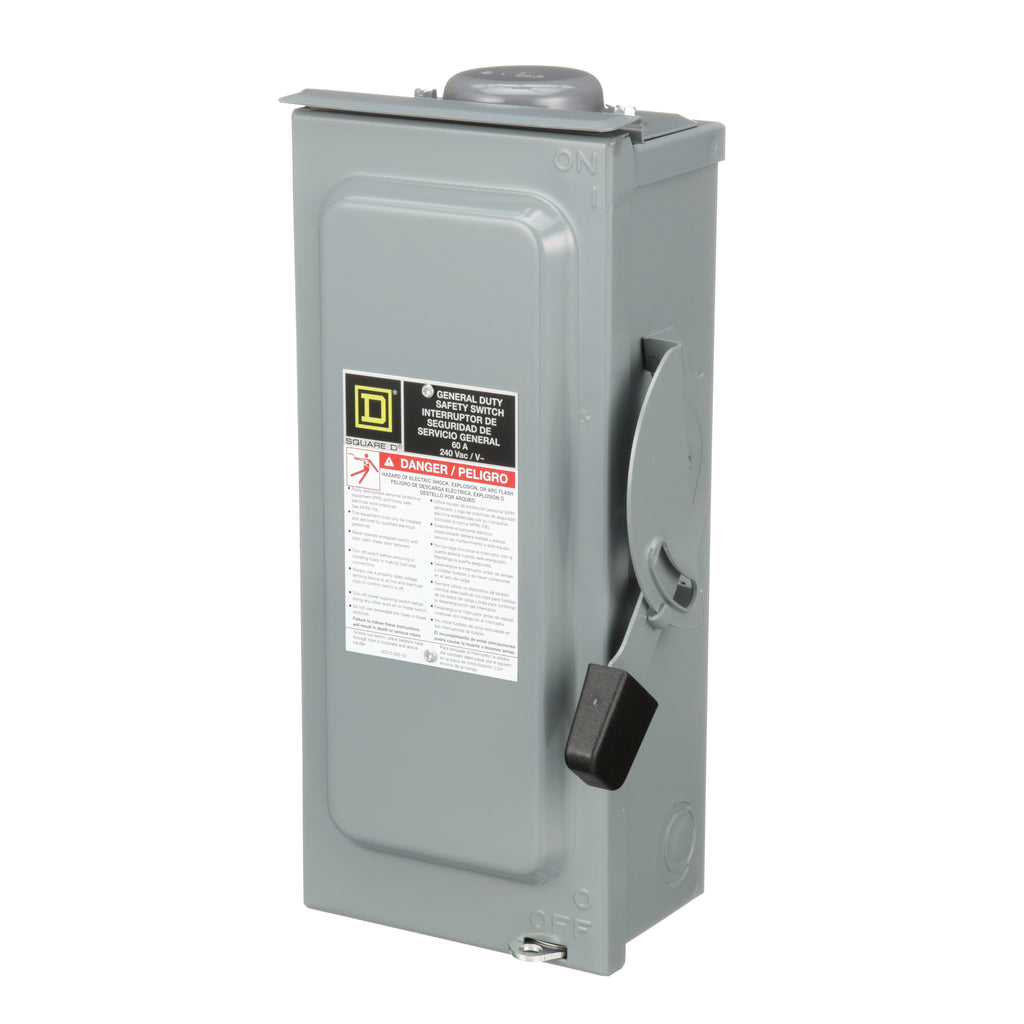

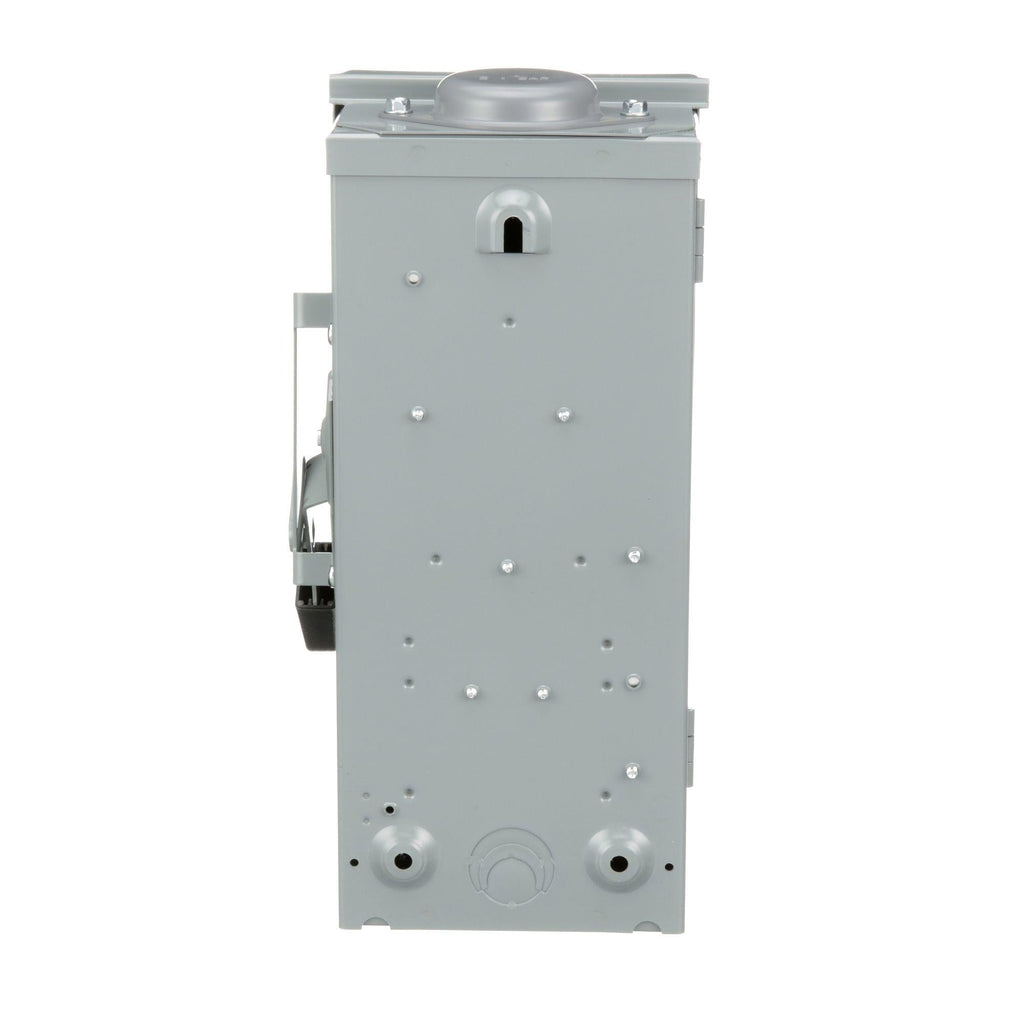

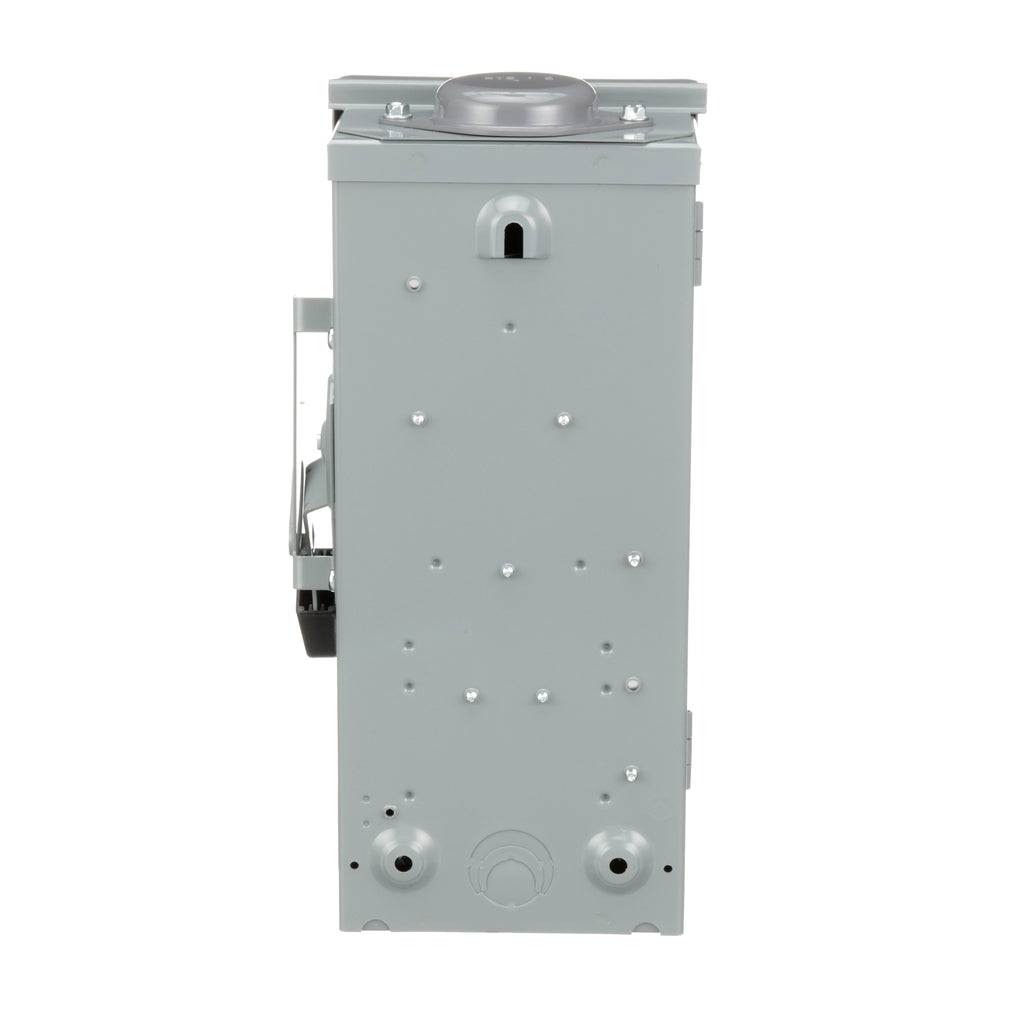

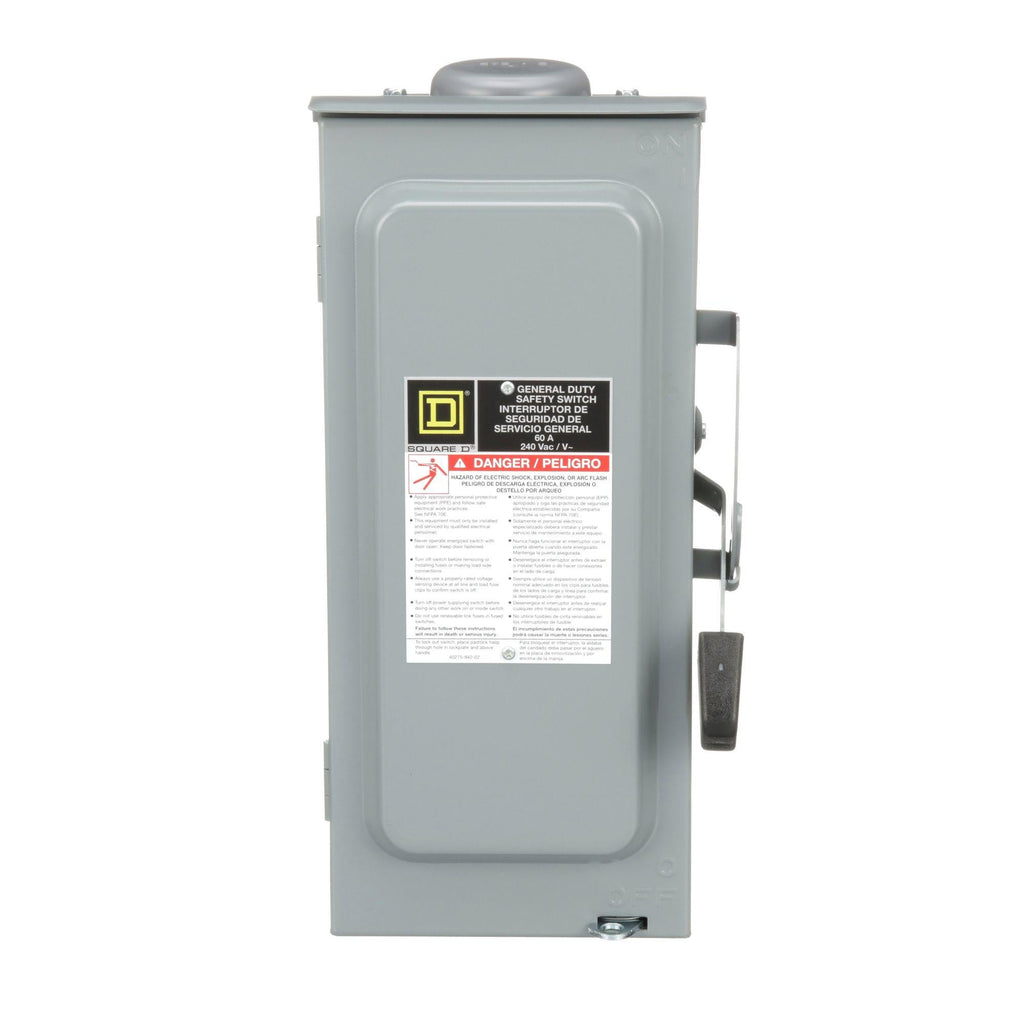

D322NRB is a Square D 60A, 240V, 3-pole, fusible general duty safety switch designed for reliable power distribution.
This safety switch features a NEMA 3R rainproof and sleet/ice proof enclosure, making it suitable for both indoor and outdoor applications. It is surface mounted, includes a factory-installed neutral, and accepts cartridge fuses (Class H, K, or R). The switch is UL listed and offers a robust solution for lighting, air conditioning, and appliance circuits.
Key Specifications
- Amperage: 60A
- Voltage: 240V AC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: 100kA (max, dependent on fuse type)
- Series/Frame: D Series
- Trip Unit: Not applicable (manual operation)
- Certifications: UL Listed (File E2875)
- Enclosure Rating: NEMA 3R
- Enclosure Material: Galvannealed Steel
- Wire Size: #10 to #2 AWG (Al), #14 to #2 AWG (Cu)
- Action: Single Throw
- Factory Installed Neutral: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: D322NRB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : D
- Voltage : 240 AC
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Fuse Class : H, K, R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
- Compatible Frames : NSE
Product Data
- UPC : 785901461289
- GTIN : 00785901461289
- Country of Origin : United States
- Dimensions : 14.88 in (377.95 mm) x 7.45 in (189.23 mm) x 4.87 in (123.70 mm) (Height x Width x Depth)
- Weight : 8.589
- Certification : UL listed
