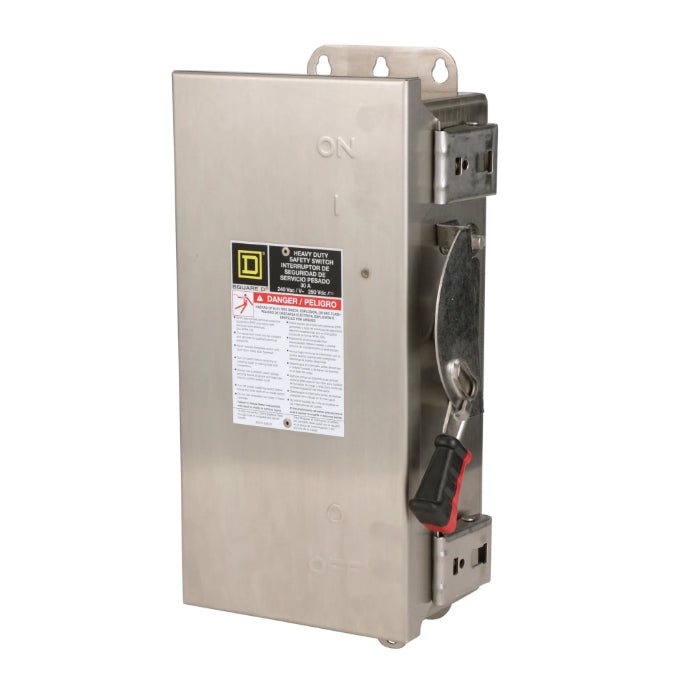

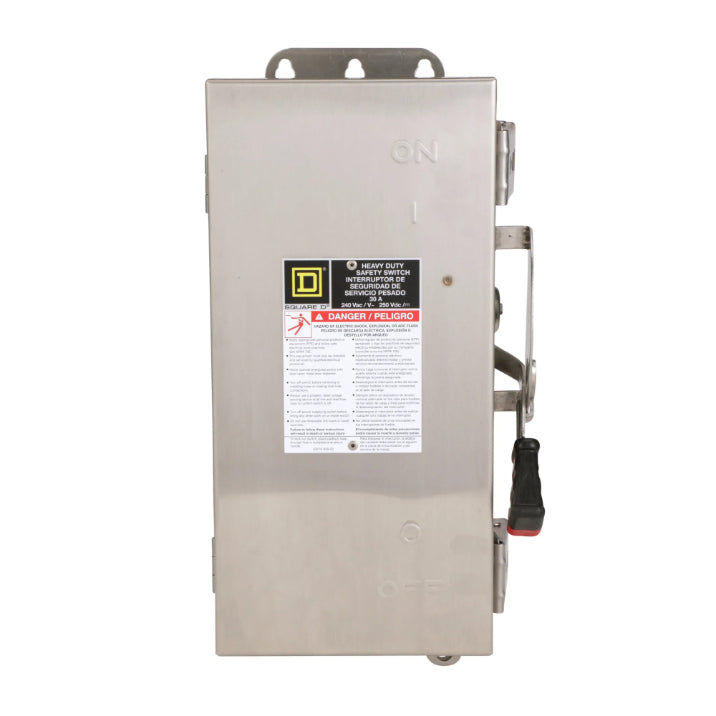

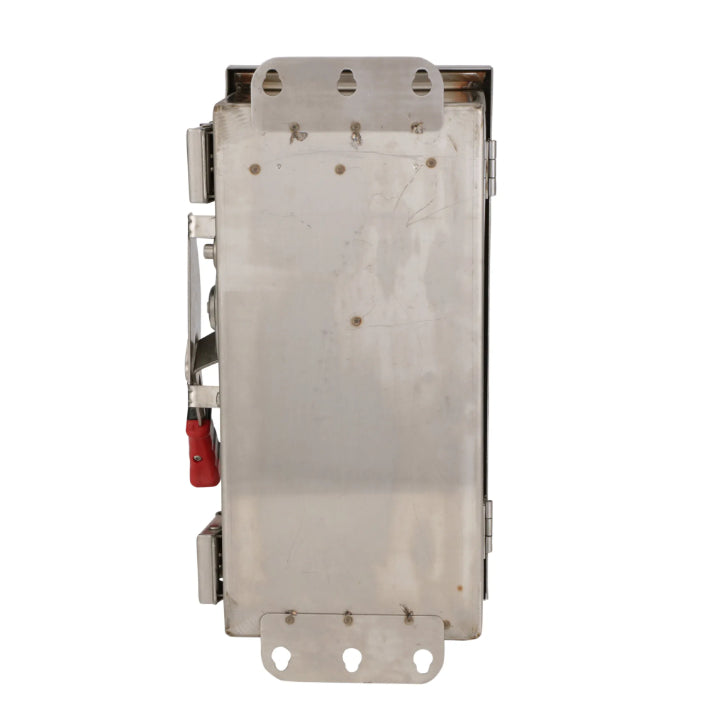

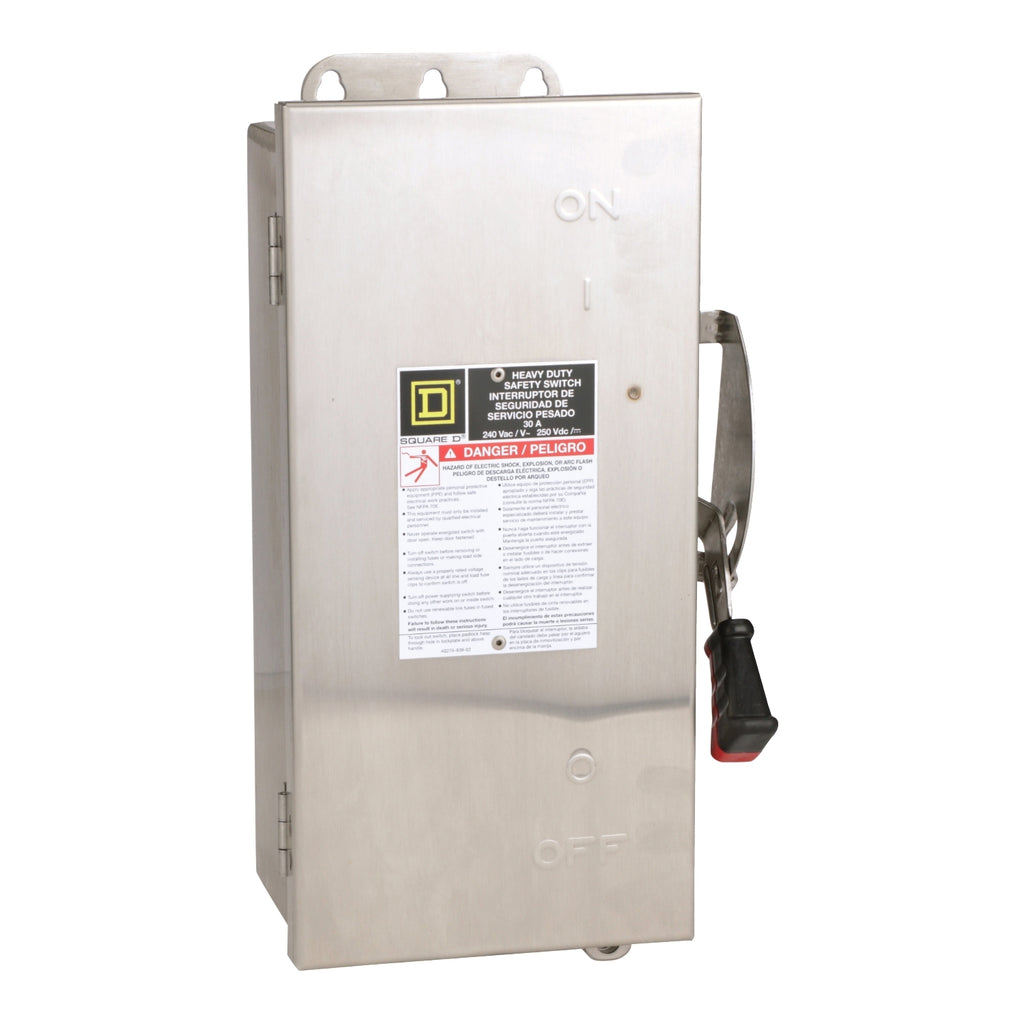

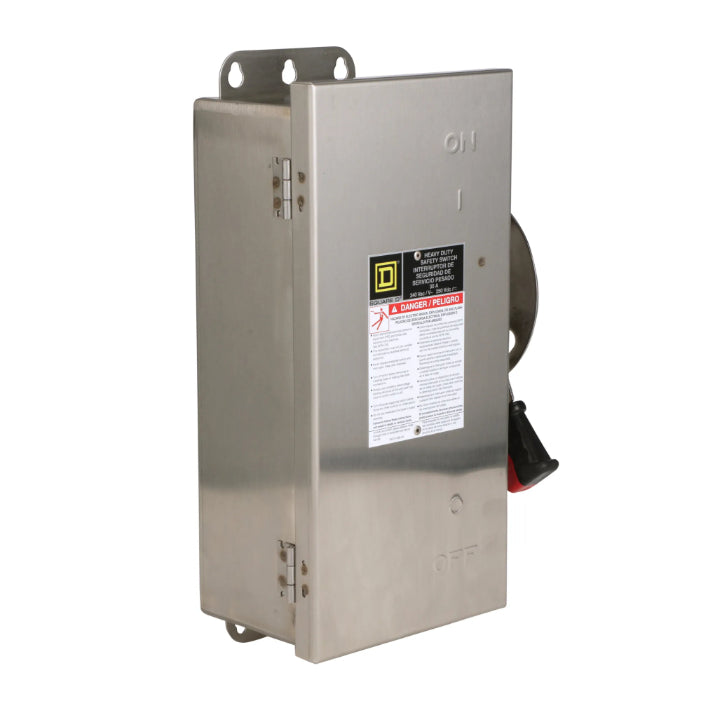

H321DS - Square D 30A 240V 3-Pole Fusible Heavy Duty Safety Switch NEMA 4X Series F

H321DS

H321DS is a Square D heavy duty fusible safety switch rated for 30 amps, 240 volts, and 3 poles with NEMA 4X enclosure for robust protection.This 3-pole safety switch features a 30 amp current rating and 240V voltage rating with a 200kA interrupting capacity. It is fusible and designed for heavy duty applications with a NEMA 4/4X/5 enclosure rating, suitable for harsh environments. The switch is part of the Series F frame and provides reliable disconnect functionality.

Key Specifications
• Amperage: 30 Amps
• Voltage: 240 Volts AC
• Poles: 3
• Interrupt Rating: 200kA at 240V
• Mounting Type: Heavy Duty
• Fuse Provision: Fusible
• Series/Frame: Series F
• Enclosure Rating: NEMA 4X (4/4X/5)
• Trip Unit: None (fusible)
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H321DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 240
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 4/4X

Product Data

• UPC : 78590102360
• GTIN : 00785901023609
• Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
• Weight : 13.541
