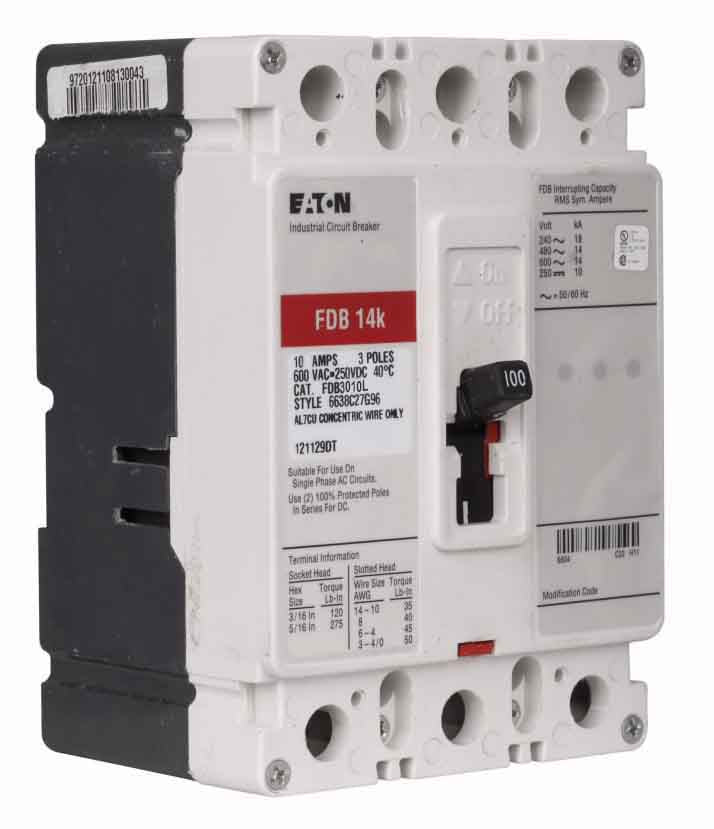

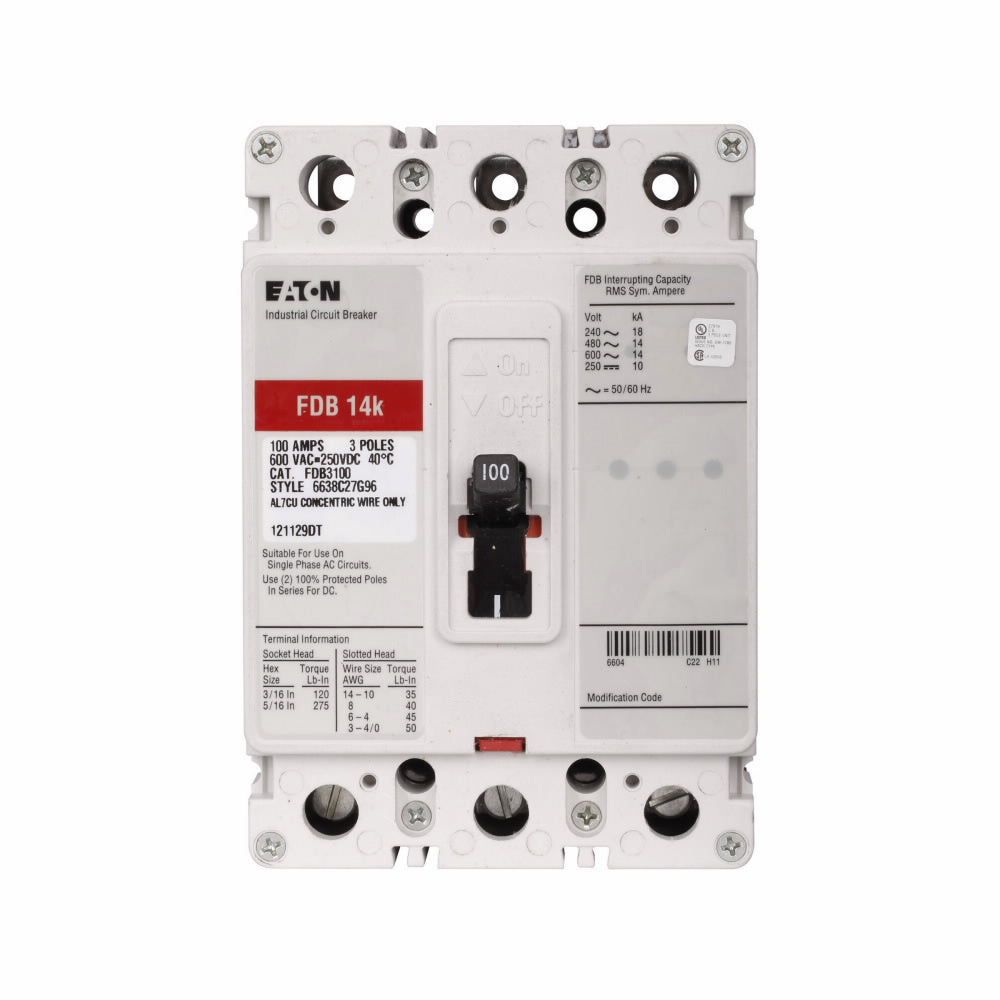

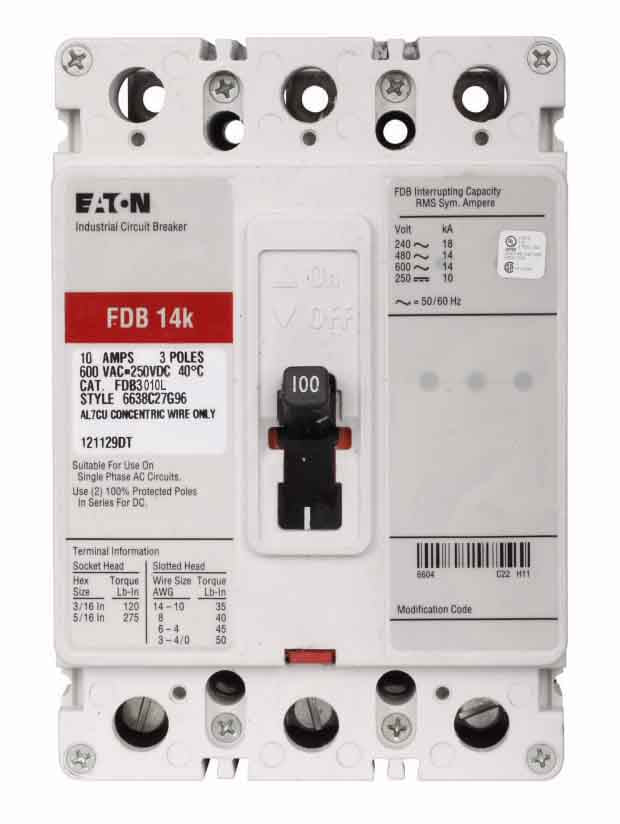

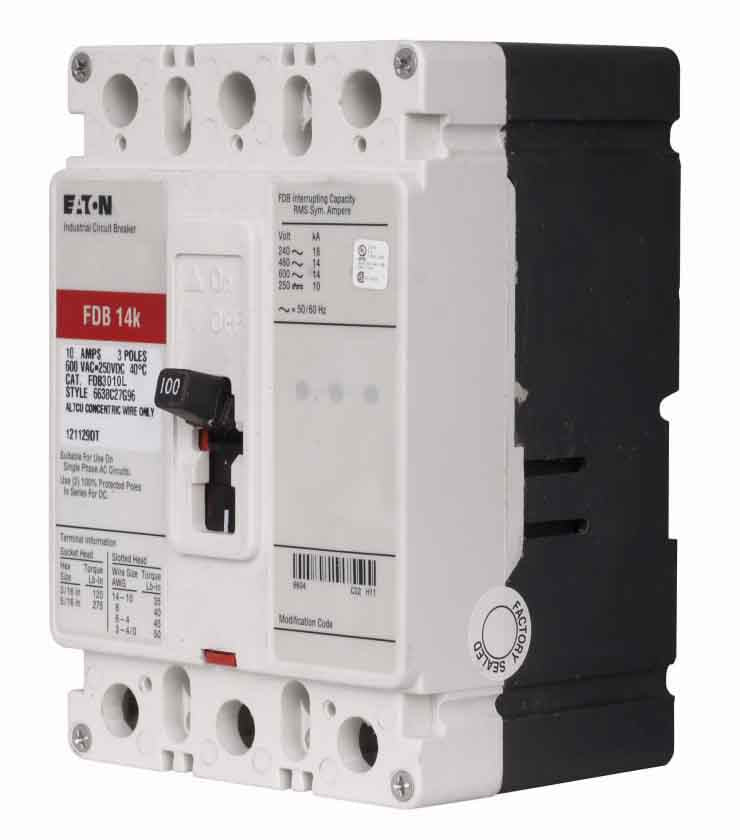

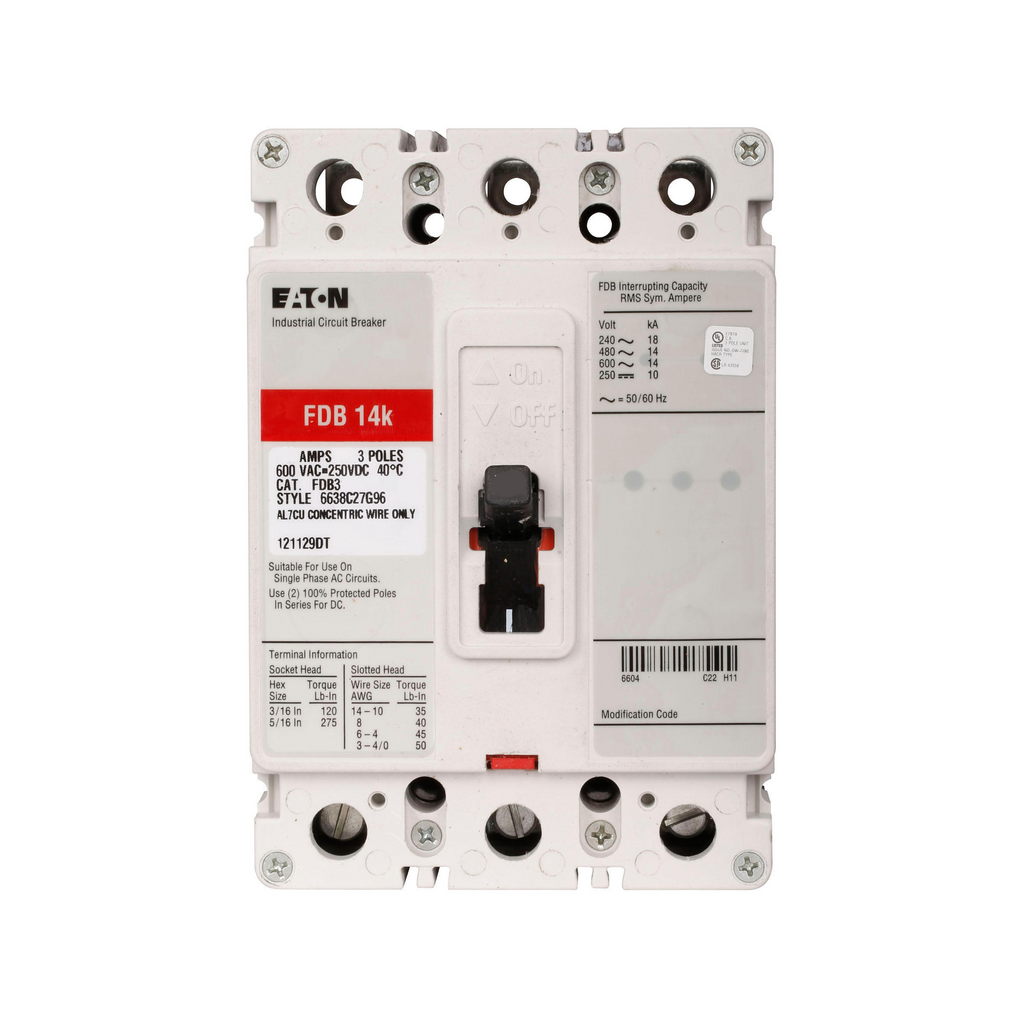

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Molded Case
- Series
- Series C
- Frame
- FDB
- Rated current
- 10
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 14kA@480V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Country of origin
- Dominican Republic
Show all specifications (6 more)
- Frame Size
- F Frame
- UPC
- 786679305812
- GTIN
- 00786679305812
- Dimensions
- 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight
- 4.5
- Certification
- UL Listed
Product description & additional details
FDB3010
FDB3010 is a Series C molded case circuit breaker from Eaton, featuring a 3-pole, 10A, 600VAC/250VDC design with F-frame construction and fixed thermal magnetic trip unit. This Eaton Series C FDB3010 molded case circuit breaker is engineered for reliable protection in commercial and industrial applications. It offers a robust 18 kAIC interrupt rating at 240VAC and 14 kAIC at 480VAC, supporting three-phase systems with feed-thru connection and a compact F-frame design. The breaker is suitable for use in a wide range of electrical distribution panels and is certified to CSA C22.2 standards.
- Part Number: FDB3010
- Manufacturer: Eaton
- Series: Series C
- Frame: F-Frame
- Poles: 3
- Amperage: 10A
- Voltage: 600VAC/250VDC
- Interrupt Rating: 18 kAIC @ 240VAC, 14 kAIC @ 480VAC
- Mounting Type: Feed-Thru
- Trip Unit: Fixed Thermal Magnetic
- Protection Type: Thermal Magnetic
- Certifications: CSA C22.2
Specifications
- Part Number: FDB3010
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FDB
- Voltage : 600
- Amperage : 10
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679305812
- GTIN : 00786679305812
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
