Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
DU321RB

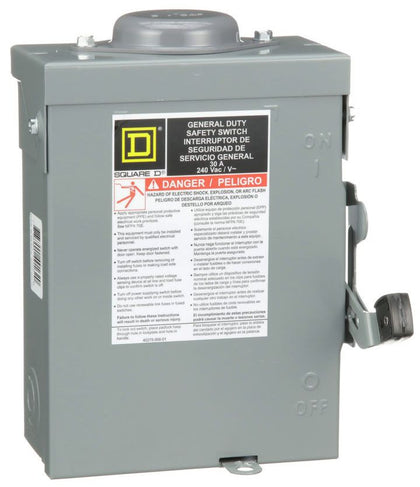

DU321RB is a Square D general duty non-fusible safety switch rated for 30 amps and 240 volts AC with 3 poles and NEMA 3R enclosure.
This switch features a single throw mechanism, surface mounting type, and is designed for general duty applications. It supports 3-phase power with a 7.5 hp motor rating and has a short circuit interrupt rating of 100kA. The enclosure is finished in gray baked enamel providing iceproof and rainproof protection suitable for outdoor use. This model does not include a neutral and is UL listed for safety compliance.
- Key Specifications
- Amperage: 30 A
- Voltage: 240 V AC
- Poles: 3
- Mounting Type: Surface mount
- Interrupt Rating: 100 kA short circuit
- Series/Frame: E2 Series
- Trip Unit: Non-fusible, single throw
- Enclosure: NEMA 3R, iceproof rainproof
- Phase: 3-phase
- Motor HP Rating: 7.5 hp
- Certifications: UL Listed
- Part Number: DU321RB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : DU
- Voltage : 240 AC
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
- UPC : 785901491620
- GTIN : 00785901491620
- Country of Origin : Mexico
- Dimensions : 9.63 in (244.60 mm) x 7.75 in (196.85 mm) x 3.75 in (95.25 mm) (Height x Width x Depth)
- Weight : 4.85
- Certification : UL listed
