D224NRB - Square D 200A 240V 2-Pole Fusible General Duty Safety Switch NEMA 3R Surface Mount

D224NRB

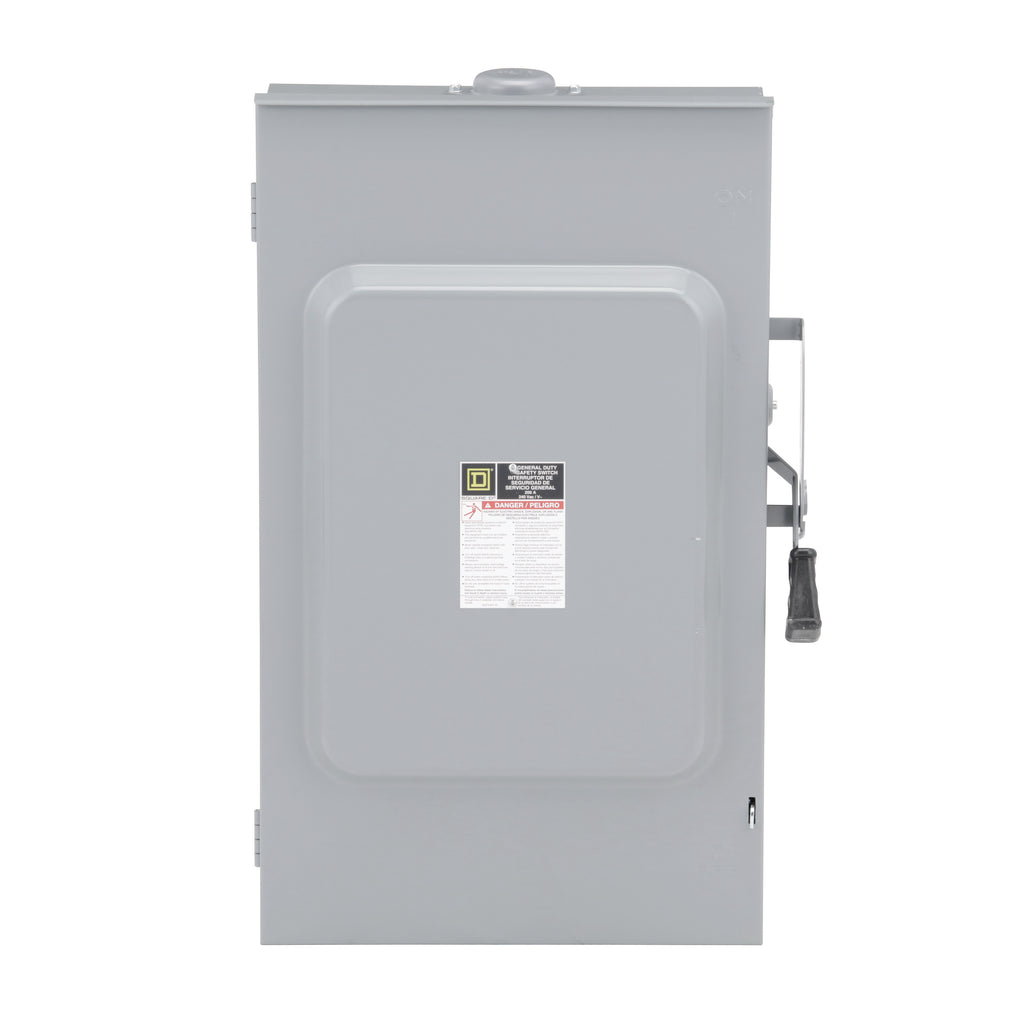

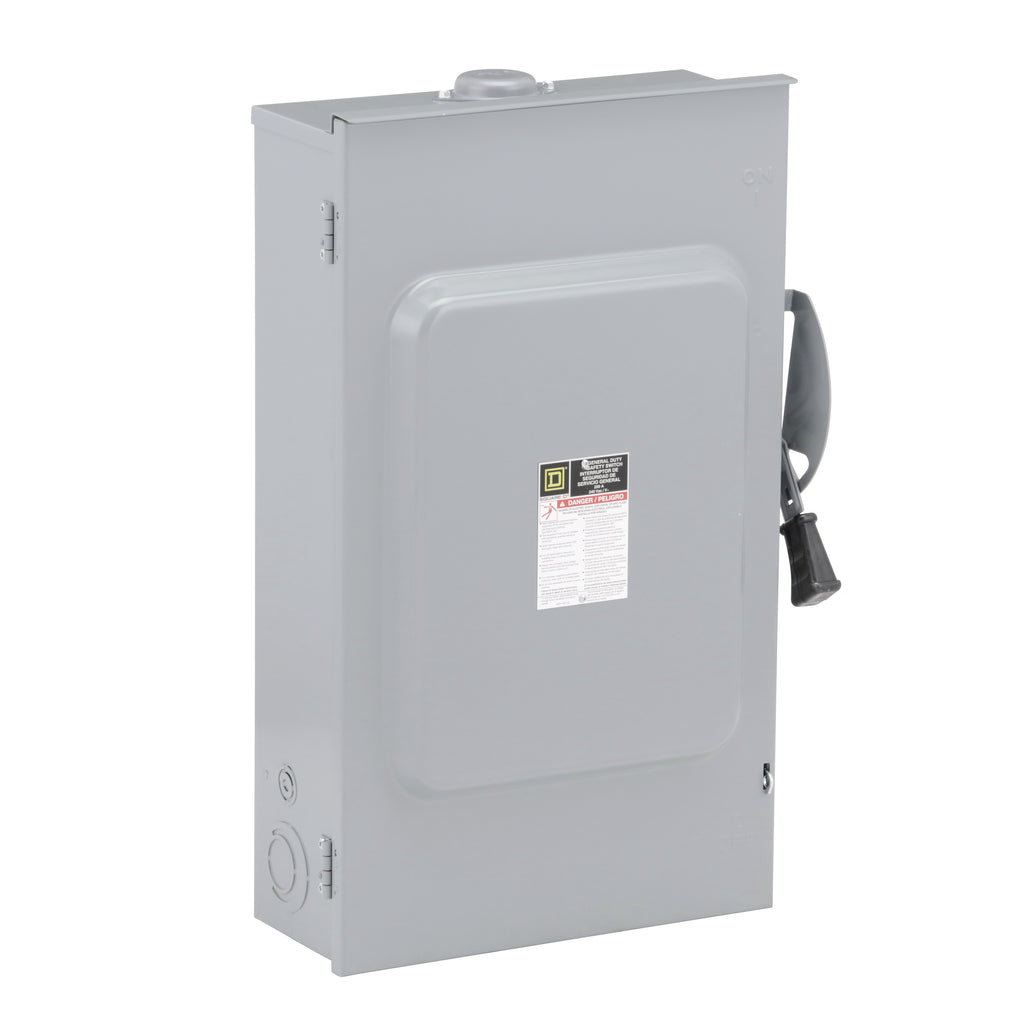

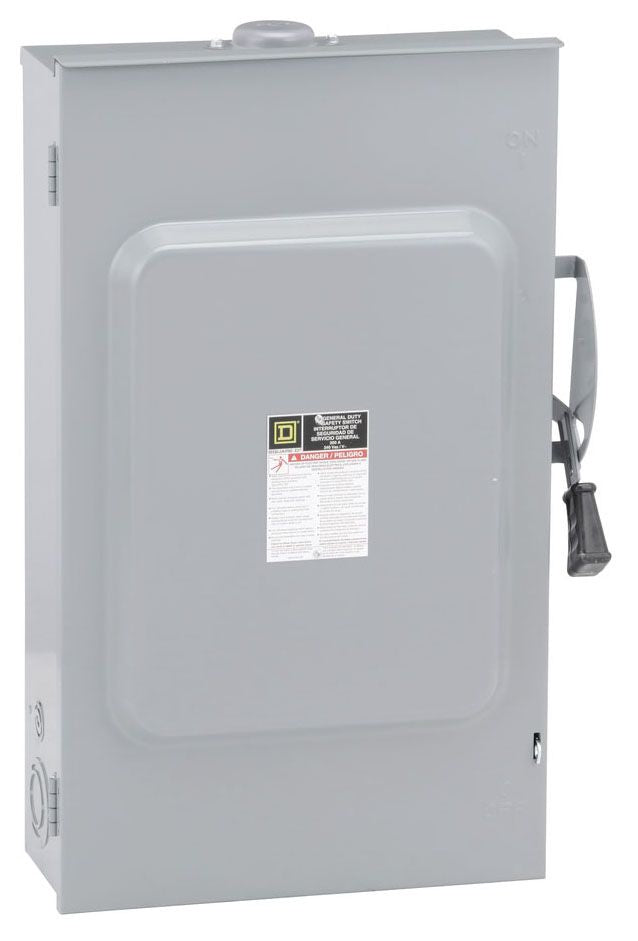

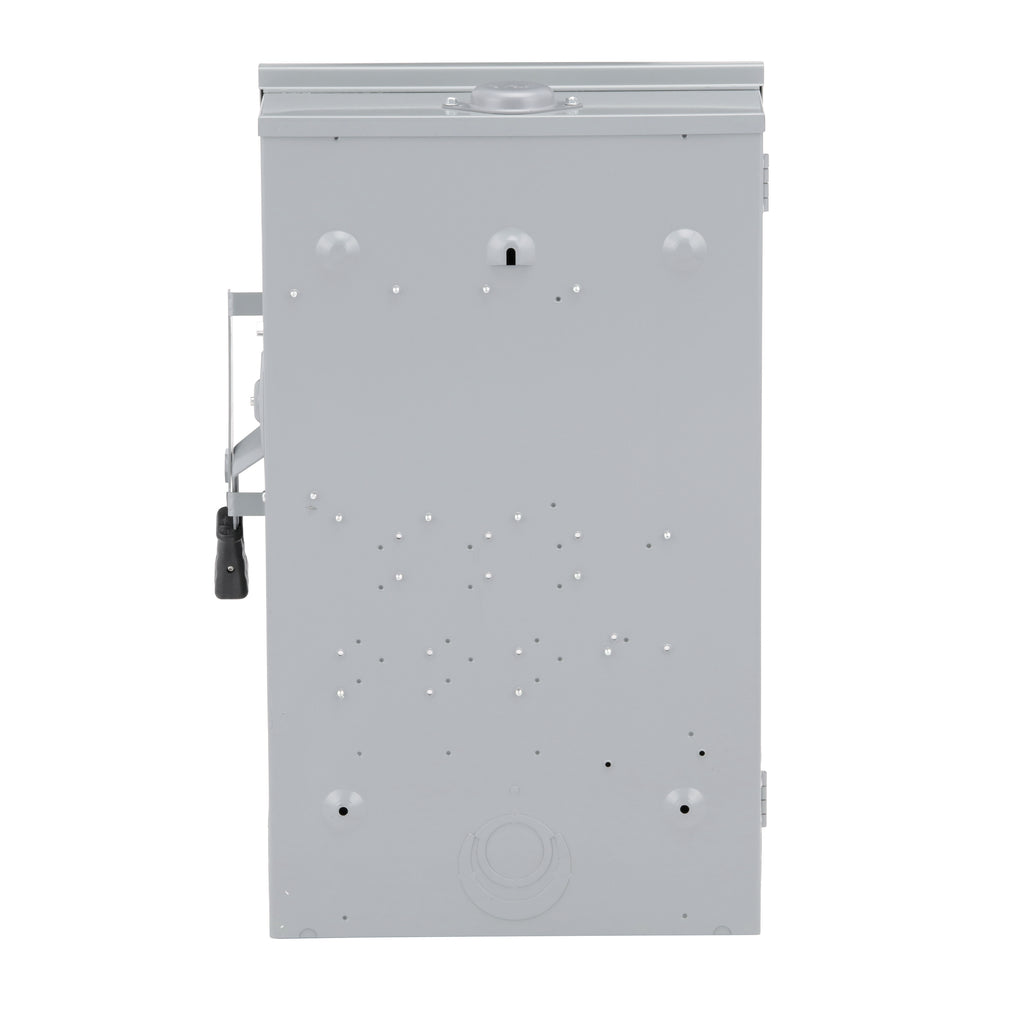

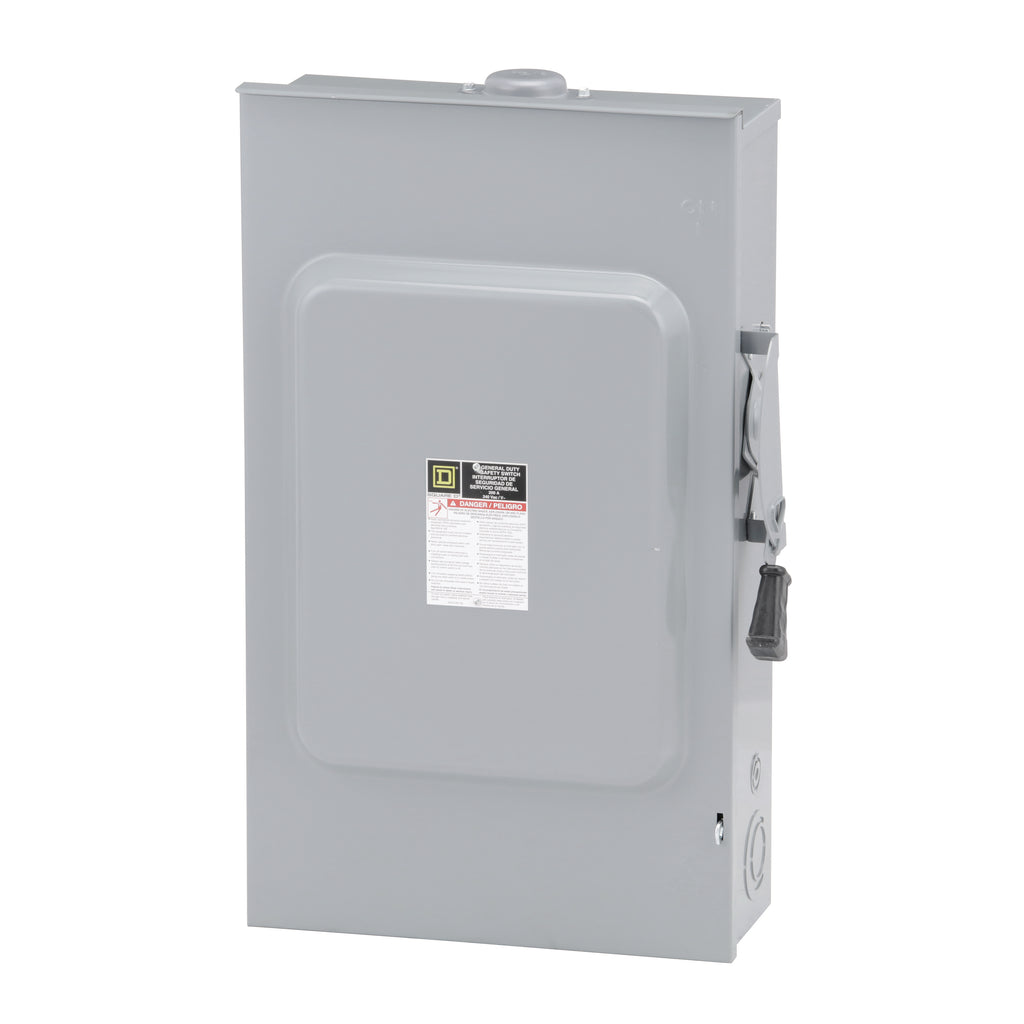

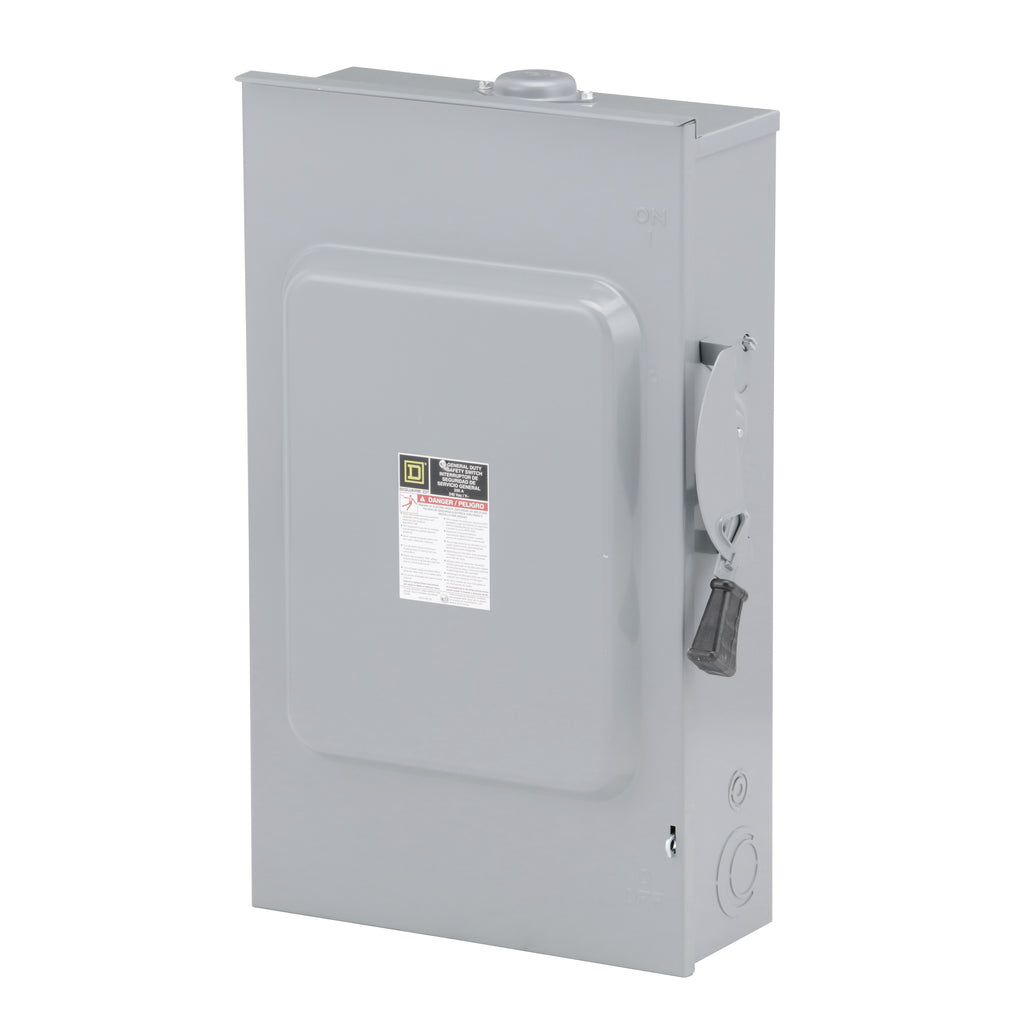

D224NRB is a Square D 200 Amp, 240 Volt, 2-pole fusible general duty safety switch with NEMA 3R enclosure and surface mounting.This single throw safety switch features a fusible disconnect design with factory-installed neutral, suitable for general duty applications. It supports conductor sizes from 6 AWG to 250 kcmil aluminum or copper, has a short circuit current rating of 100 kA, and is UL listed. The enclosure is steel, rated NEMA 3R for rainproof and iceproof outdoor use, and the switch includes lug-type electrical connections.

Key Specifications
• Amperage: 200 Amp
• Voltage: 240 Volt AC
• Number of Poles: 2
• Mounting Type: Surface
• Enclosure Rating: NEMA 3R (Rainproof/Iceproof)
• Short Circuit Current Rating: 100 kA
• Disconnect Type: Fusible
• Conductor Size Range: 6 AWG to 250 kcmil
• Factory Installed Neutral
• UL Listed (File E2875)
• Material: Steel Enclosure
• Dimensions: 29.25 in H x 19 in W x 8.5 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: D224NRB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : D
• Voltage : 240 AC
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : RLF

Product Data

• UPC : 785901460763
• GTIN : 00785901460763
• Country of Origin : United States
• Dimensions : 29.25 in (742.95 mm) x 19 in (482.6 mm) x 8.5 in (215.9 mm) (Height x Width x Depth)
• Weight : 42.631
• Certification : UL listed
